1106TIMING GEAR COVER & REAR END PLATE

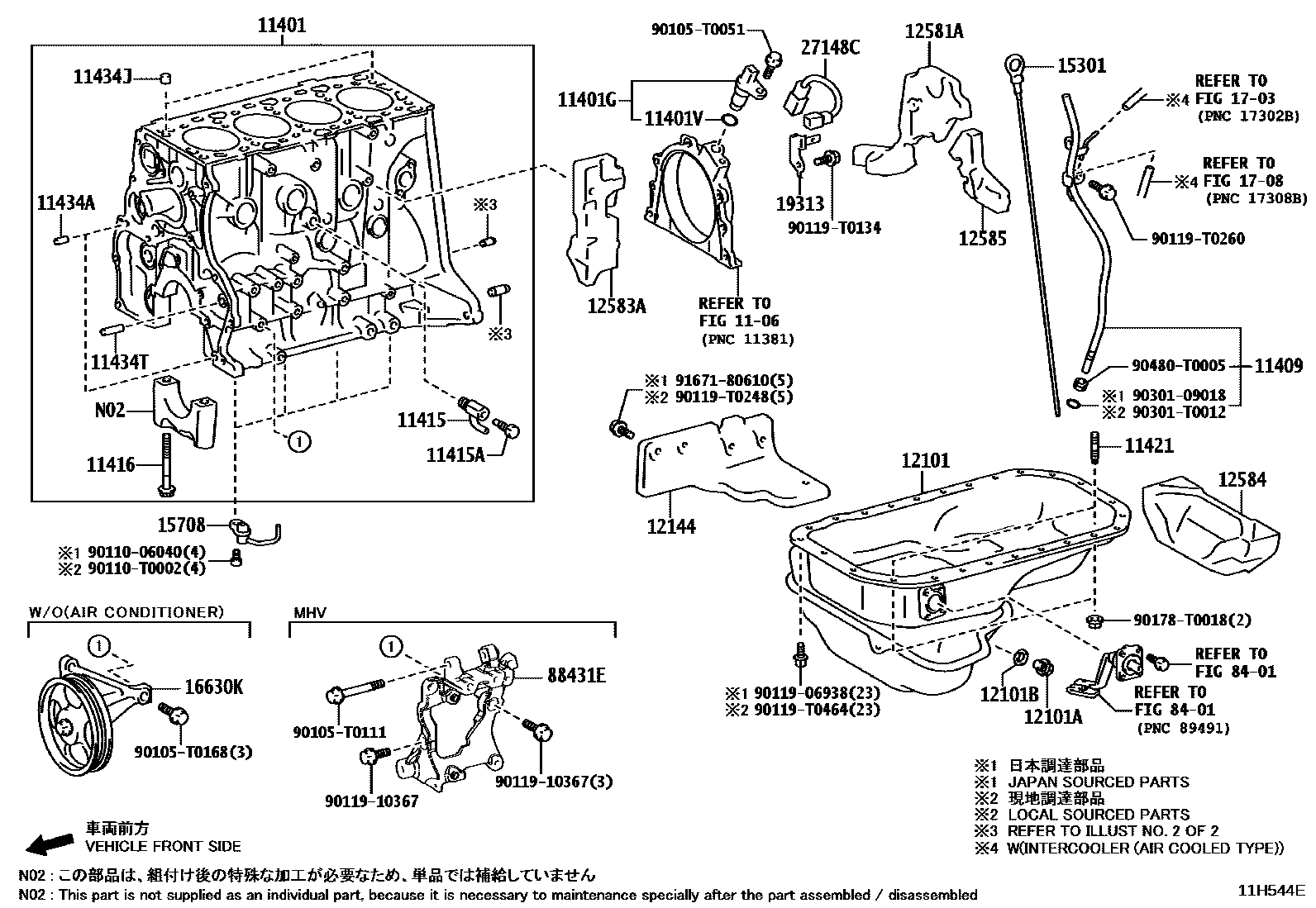

11401BLOCK SUB-ASSY, CYLINDER

main11401-09841i202308-202410

main11401-09851i202308-202407

11401GSENSOR, CRANK POSITION

main90919-05073i202308-202407

main90919-05079i202406-202410

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i202308-202407

ISRAEL EURO6 FOR 12 E-PF; ISRAEL SPEC (EURO 6 REGULATION); TURKEY EURO6 FOR 12 E-PF; TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0E011i202308-202407

THA SOURCED PARTS

main11409-0E030i202406-202410

THA SOURCED PARTS

main11409-0E021i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09128i202308-202407

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i202308-202410

(J)

main90910-T9001i202308-202407

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2009×10i202308-202407

(L)

11421BOLT, STUD(FOR OIL PAN)

main90126-06028×2i202308-202407

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-T0007×2i202308-202410

L=18,OD=8,(L)

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-T0002×2i202308-202407

(L)

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i202308-202407

(J)

main90250-T0019i202308-202410

(L)

12101PAN SUB-ASSY, OIL

main12101-0E010i202308-202410

THA SOURCED PARTS

main12101-11120i202308-202407

JAPAN SOURCED PARTS

main12101-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

12101APLUG(FOR OIL PAN DRAIN)

main90341-T0004i202308-202410

(L)

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i202308-202410

(L)

12144SILENCER, OIL PAN COVER

main12144-0E010i202308-202407

THA SOURCED PARTS

main12144-11010i202308-202407

JAPAN SOURCED PARTS

main12144-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-0E010i202308-202407

THA SOURCED PARTS

main12581-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-0E010i202308-202407

THA SOURCED PARTS

main12583-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-08010i202405-202410

ZAF SOURCED PARTS

main12584-0E011i202308-202407

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-0E010i202308-202407

THA SOURCED PARTS

main12585-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0E011i202308-202407

THA SOURCED PARTS

main15301-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0E010×4i202308-202407

(L)

16630KPULLEY ASSY, IDLER

main16630-0E010i202408-202410

FRONT AIR CONDITIONER-COOLER LESS

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-0E010i202308-202407

THA SOURCED PARTS

main19313-0E020i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

27148CWIRE, CONNECTING

main27148-0E010i202308-202407

THA SOURCED PARTS

main27148-0E040i202308-202407

IND SOURCED PARTS; ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88431EBRACKET, COMPRESSOR MOUNTING

main12531-0E010i202406-202410

90105T0051

main90105-T0051

90105T0111

main90105-T0111

90105T0168

main90105-T0168

9011006040

main90110-06040
