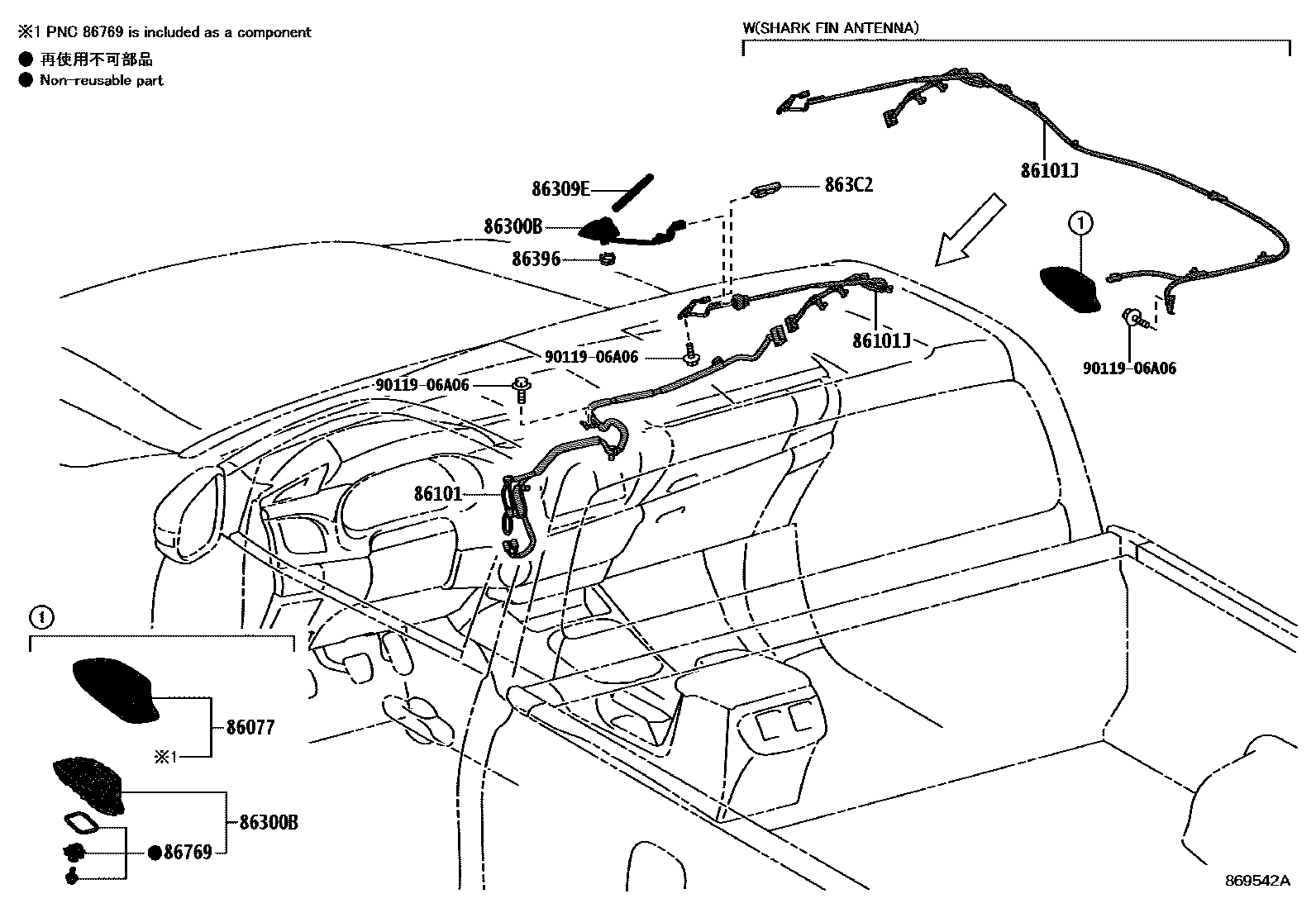

ANTENNA
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
EMOTIONAL RED 2,3U5
ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,SUPER WHITE 2,040
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,SILVER ME.,1D6
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,GRAY ME.,1G3
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,ATTITUDE BLACK MC.,218
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,EMOTIONAL RED 2,3U5
86101CORD SUB-ASSY, ANTENNA
main86101-0K790supersedes 86101-0K770iGUN125,135..THP..S; GUN125..THP..H; GUN126..S; GUN126..THP..H202208-202307
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT; DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER)); AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-0KA51supersedes 86101-0KA21iGUN125,135..THP..S; GUN125..THP..H; GUN126..S; GUN126..THP..H202208-202307
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT; DATA COMMUNICATION MODULE-WITHOUT
main86101-0KE60iGUN125..RHD..DCB..S;GUN125,135..LHD..DCB..SAP..(H,S); GUN125..RHD..H;GUN126..DCB..SAP202301-202401
DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER)); AUDIO-AVN(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
DATA COMMUNICATION MODULE-WITH(E-CALL)
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
86300BANTENNA ASSY, AMPLIFIER, NO.1
DATA COMMUNICATION MODULE-WITH(E-CALL)
ISRAEL SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT; TURKEY SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
RUSSIA&CUSTOM UNION SPEC&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT; TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(E-CALL); ISRAEL SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITH(E-CALL); TURKEY SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITH(E-CALL)
86309EPOLE SUB-ASSY, ROOF ANTENNA
ISRAEL SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT; TURKEY SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
RUSSIA&CUSTOM UNION SPEC&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
86396NUT, ANTENNA
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB
86769HOUSING, ROOF ANTENNA
ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT; TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
9011906A06
main90119-06A06
9 parts on this diagram · 2 diagrams in section
