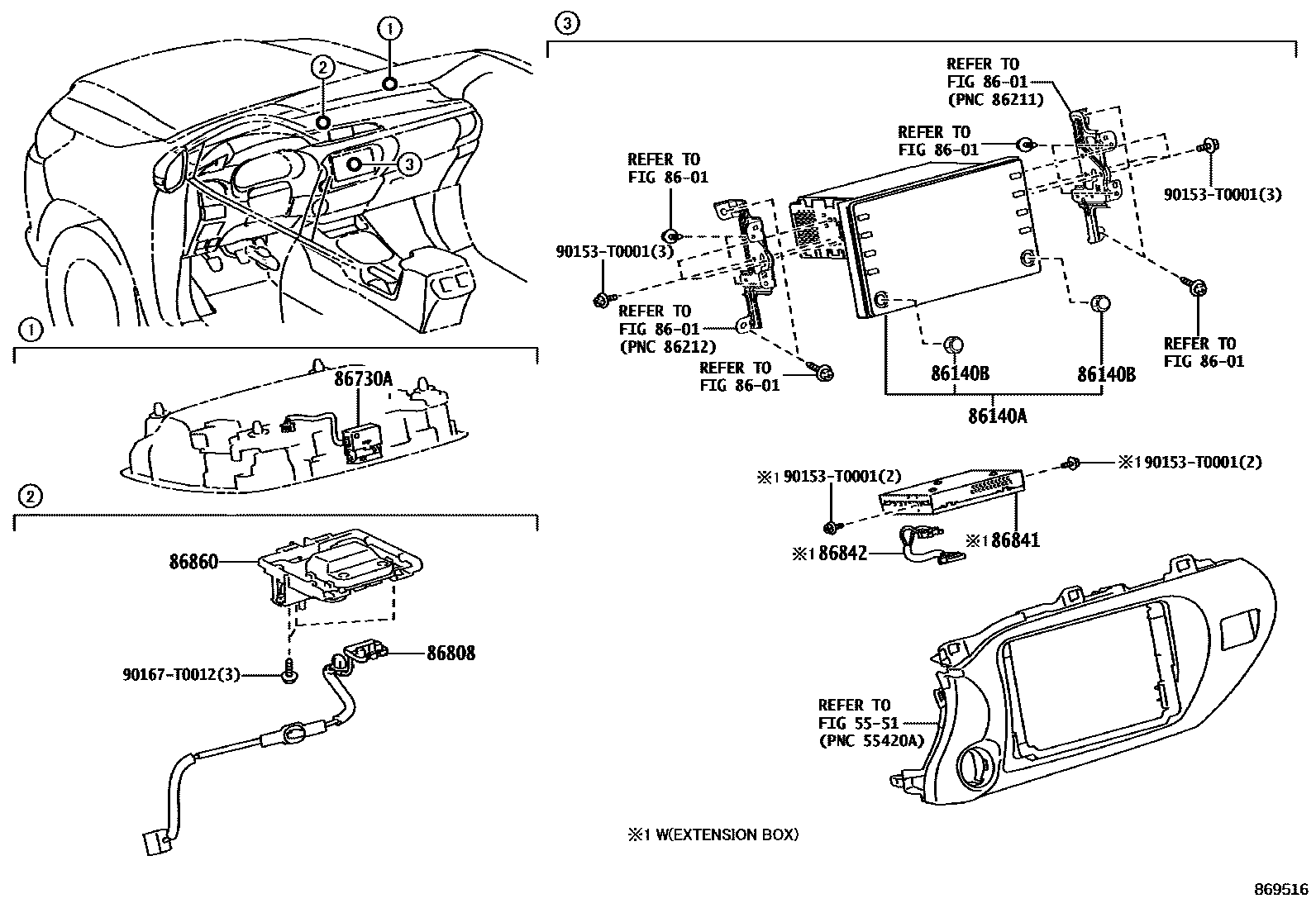

NAVIGATION & FRONT MONITOR DISPLAY
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC; PANASONIC,AUDIO-*DA(8INCH) & *BT & DAB
PANASONIC
PANASONIC,UKRAINE SPEC (EURO 6 REGULATION); PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC; PANASONIC,AUDIO-*DA(8INCH) & *BT & DAB
PANASONIC,AUDIO-AVN(8INCH) & *BT & DAB; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
main86140-0KQ82iGUN125..THP..H; GUN126..LHD;GUN135..THP;GUN125..THP..6F;GUN125..LHD..6FC;GUN125..LHD..6F..H; GUN126..THP..H202210-202303
PANASONIC,AUDIO-AVN(8INCH) & *BT & DAB; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,AUDIO-AVN(8INCH) & *BT & DAB
PANASONIC,SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&SPEAKER-9SPEAKER & JBL&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&SPEAKER-9SPEAKER & JBL&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&SPEAKER-9SPEAKER & JBL&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,SPEAKER-9SPEAKER & JBL
PANASONIC,AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL; PANASONIC,UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL&DATA COMMUNICATION MODULE-WITHOUT
PANASONIC,AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB; UKRAINE SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
86730AMICROPHONE ASSY, TELEPHONE
main86730-60050iGUN126..LHD;GUN125..LHD..H;GUN135..DCB..SAP; GUN135..THP;GUN125..LHD..S;GUN135..SCB..CBU202208-202401
DATA COMMUNICATION MODULE-WITH(E-CALL)
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB
DATA COMMUNICATION MODULE-WITH(E-CALL)
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); DATA COMMUNICATION MODULE-WITH(E-CALL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); ISRAEL SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITH(E-CALL); TURKEY SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); TURKEY SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL); TURKEY SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITH(E-CALL)
86841COMPUTER, NAVIGATION
AUDIO-AVN(8INCH) & *BT & DAB
86842WIRE, NAVIGATION, NO.1
AUDIO-AVN(8INCH) & *BT & DAB
86860ANTENNA ASSY, NAVIGATION
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB
90153T0001
main90153-T0001
90167T0012
main90167-T0012
11 parts on this diagram · 1 diagram in section
