Toyota HILUX (DCB/SCB/XTR) — BATTERY & BATTERY CABLE
28800BATTERY
28800ATERMINAL, BATTERY POSITIVE
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28800JTERMINAL, BATTERY NEGATIVE
28898BPLATE, BATTERY
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
90178T0056
9415180801
10 parts on this diagram · 1 diagram in section

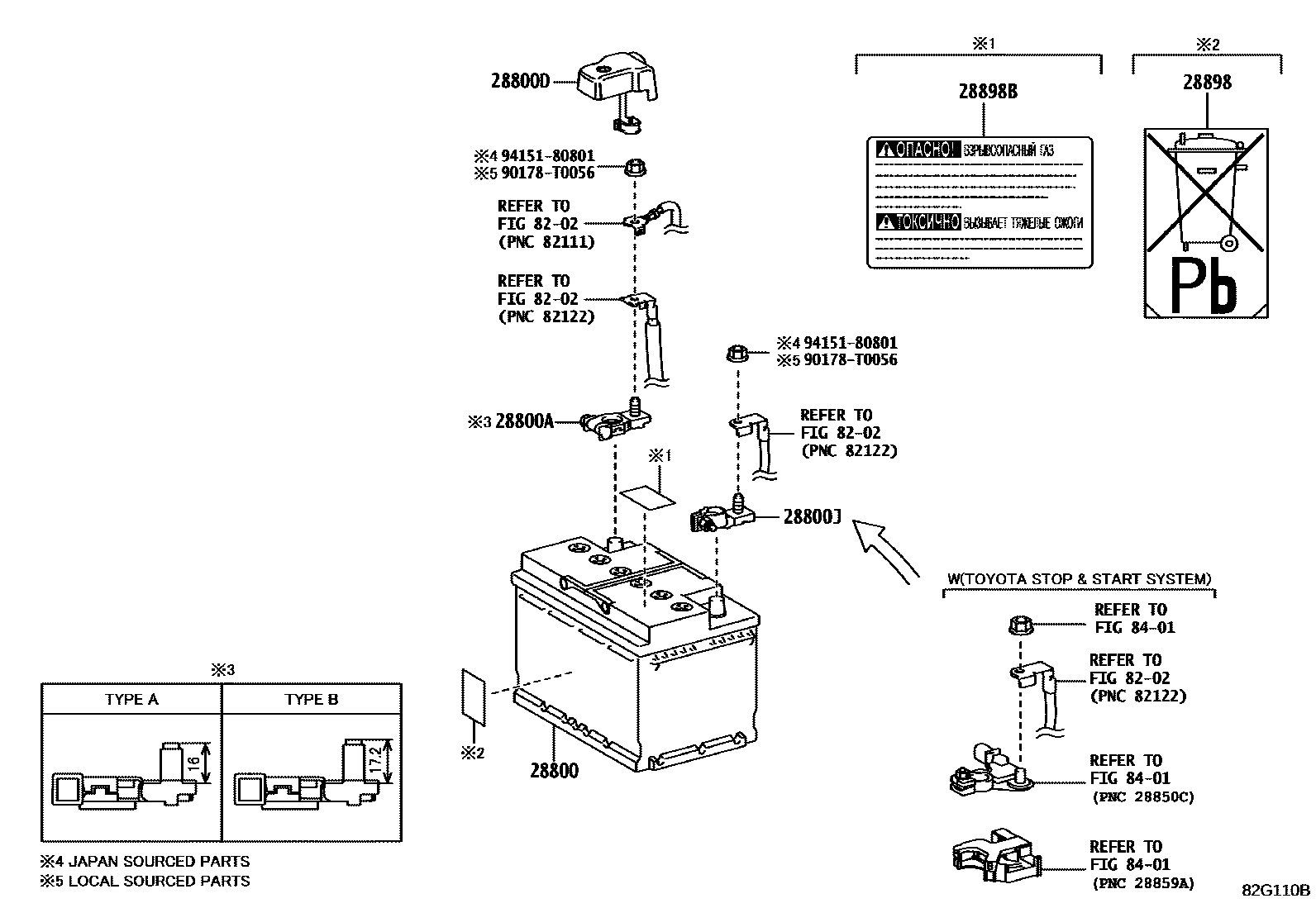

BATTERY & BATTERY CABLE for Toyota HILUX (DCB/SCB/XTR)
This section contains 10 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota HILUX (DCB/SCB/XTR). Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, PLATE, BATTERY.
