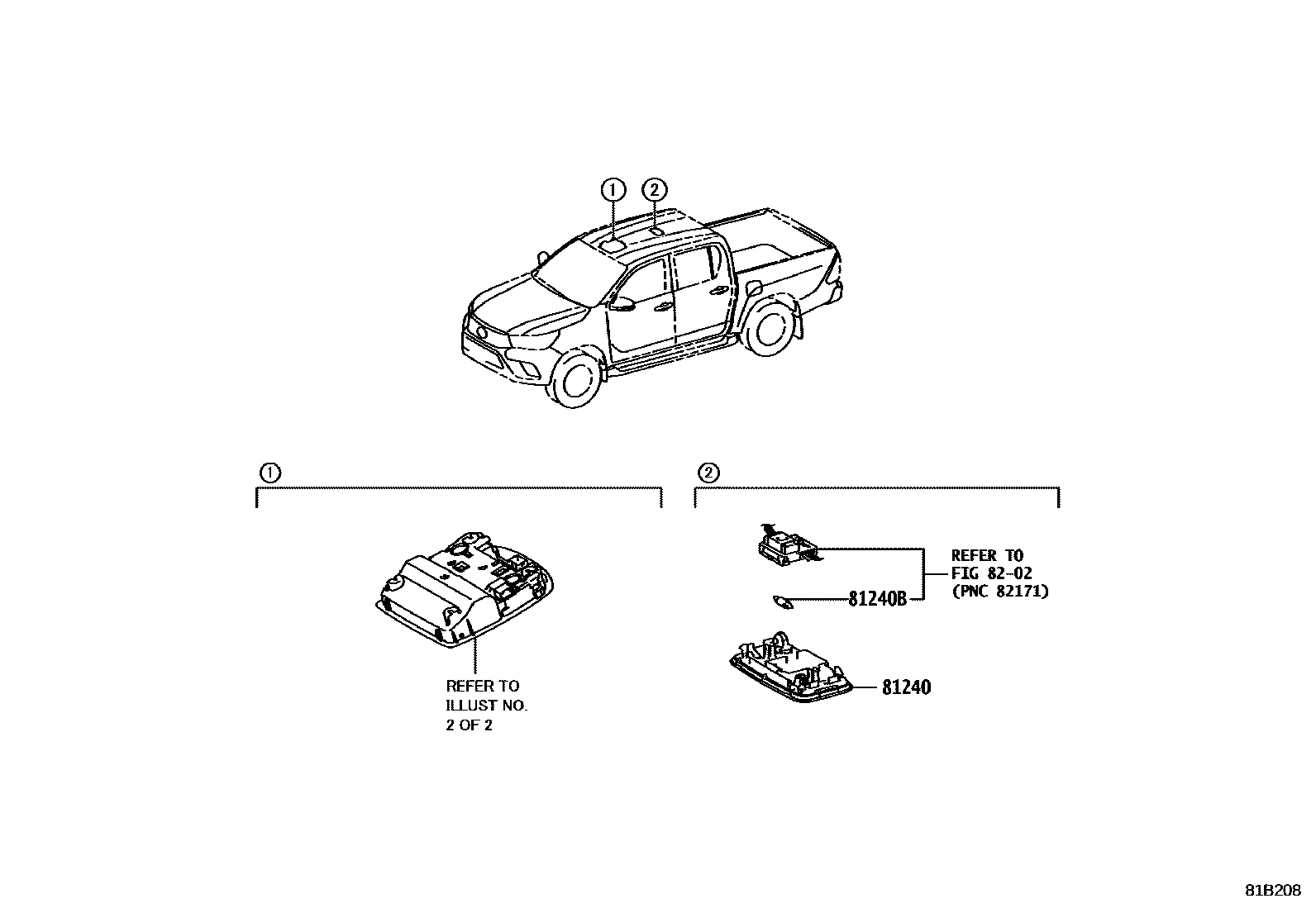

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-0K090-B0iGUN12#,135..THP..S; GUN12#..THP..H202208-202307

LT.GRAY,TRIM2#; LT.GRAY,TRIM20

main81240-0K090-C0iGUN125..THP..H; GUN126..THP..H202208-202307

BLACK,TRIM21; BLACK,TRIM21,25

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGUN12#,135..THP202208-202307

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

3 parts on this diagram · 2 diagrams in section
