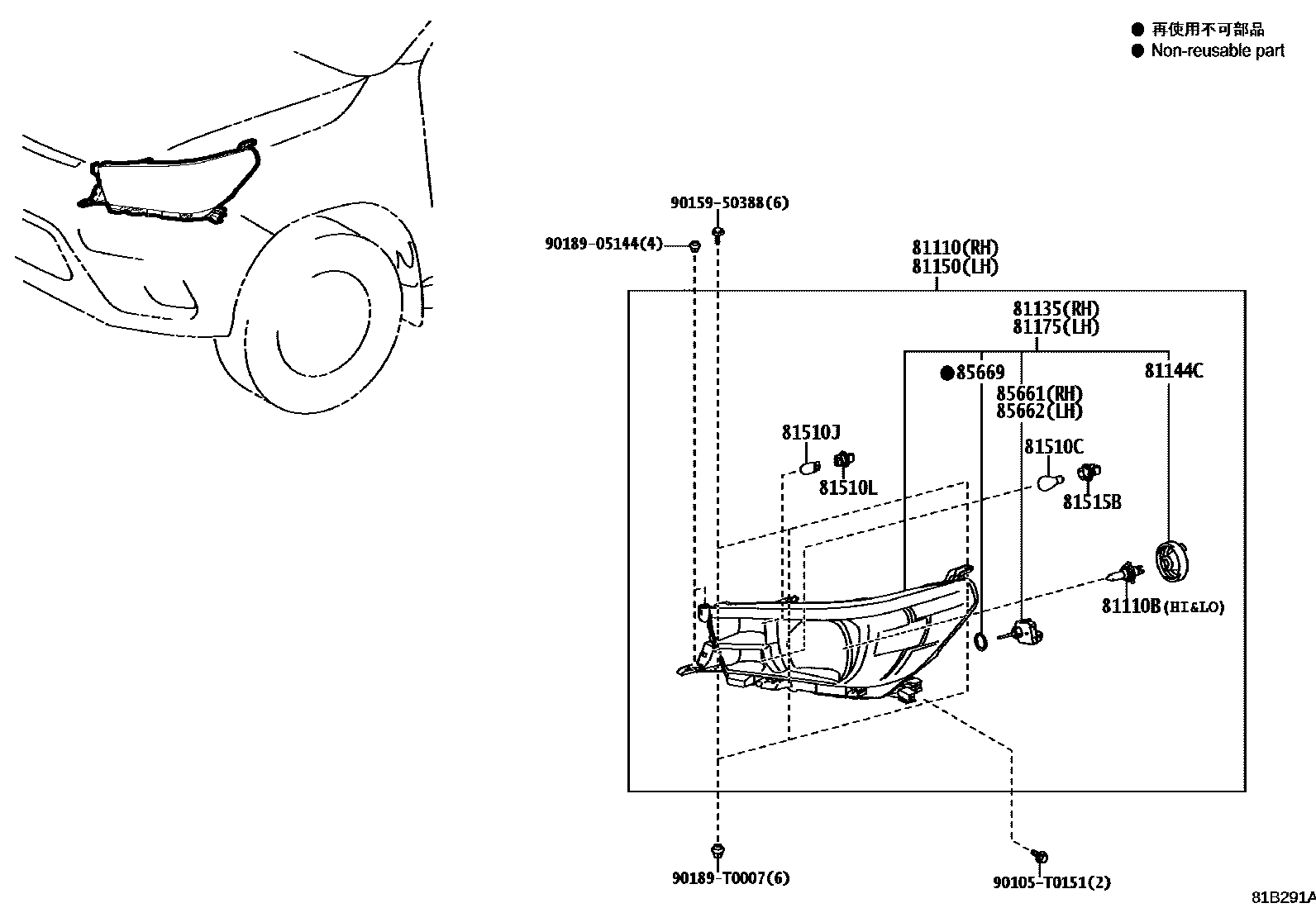

HEADLAMP
81110HEADLAMP ASSY, RH
main81110-0KK60supersedes 81110-0KU80iGUN12#..LHD..SAP..H; GUN125,135..LHD..(DCB,XTR)..SAP..(L,S)202301-202401
HEADLAMP-4-BULB HALOGEN MULTI
main81110-0KK80supersedes 81110-0K782iGUN12#..RHD..H; GUN125..RHD..(DCB,XTR)..S; GUN125..RHD..SCB202301-202401
HEADLAMP-4-BULB HALOGEN MULTI; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-4-BULB HALOGEN MULTI
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM)
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
12V 65W(SAE),60W(UN); 12V 65W(SAE),60W(UN),HEADLAMP-4-BULB HALOGEN MULTI
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-4-BULB HALOGEN MULTI
main81130-0KK80supersedes 81130-0K782iGUN12#..RHD..H; GUN125..RHD..(DCB,XTR)..S; GUN125..RHD..SCB202301-202401
HEADLAMP-4-BULB HALOGEN MULTI; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-4-BULB HALOGEN MULTI
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM)
81144CCOVER, HEADLAMP SOCKET
HEADLAMP-4-BULB HALOGEN MULTI
81150HEADLAMP ASSY, LH
main81150-0KK60supersedes 81150-0KU80iGUN12#..LHD..SAP..H; GUN125,135..LHD..(DCB,XTR)..SAP..(L,S)202301-202401
HEADLAMP-4-BULB HALOGEN MULTI
main81150-0KK80supersedes 81150-0K782iGUN12#..RHD..H; GUN125..RHD..(DCB,XTR)..S; GUN125..RHD..SCB202301-202401
HEADLAMP-4-BULB HALOGEN MULTI; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-4-BULB HALOGEN MULTI
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-LED(MLM)
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM)
81175UNIT ASSY, HEADLAMP, LH
HEADLAMP-4-BULB HALOGEN MULTI
main81170-0KK80supersedes 81170-0K782iGUN12#..RHD..H; GUN125..RHD..(DCB,XTR)..S; GUN125..RHD..SCB202301-202401
HEADLAMP-4-BULB HALOGEN MULTI; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-4-BULB HALOGEN MULTI
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM); MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
MLM ADVENTURE PACKAGE&HEADLAMP-LED(MLM)
GR SPORT WIDE TREAD&HEADLAMP-LED(MLM)
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER; 12V 21W,AMBER,HEADLAMP-4-BULB HALOGEN MULTI
12V 21W,AMBER
81510JBULB(FOR DAYTIME RUNNING LAMP)
12V 21/5W; 12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI
81510LSOCKET, DAYTIME RUNNING LAMP
HEADLAMP-4-BULB HALOGEN MULTI
81515BSOCKET, FRONT TURN SIGNAL LAMP
HEADLAMP-4-BULB HALOGEN MULTI
85661MOTOR, HEADLAMP LEVELING, RH
HEADLAMP-LED
85662MOTOR, HEADLAMP LEVELING, LH
HEADLAMP-LED
85669PACKING, HEADLAMP LEVELING MOTOR BASE
HEADLAMP-LED
90105T0151
main90105-T0151
9015950388
main90159-50388
9018905144
main90189-05144
90189T0007
main90189-T0007
17 parts on this diagram · 5 diagrams in section
