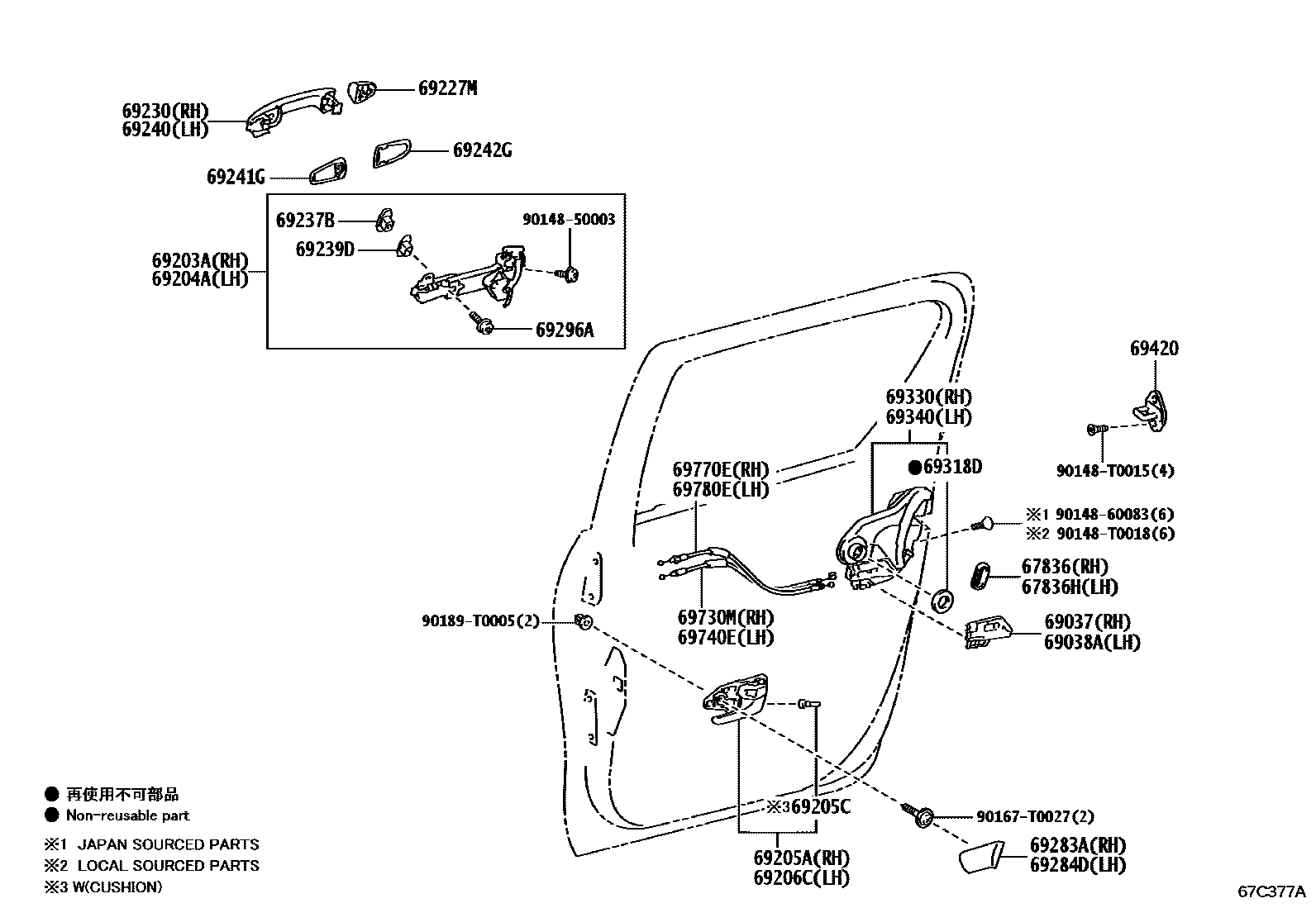

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
(J)
(L)
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
(J)
(L)
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
*CR
BLACK MATERIAL
BLACK MATERIAL
*CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
*CR
*CR,RUSSIA&CUSTOM UNION SPEC&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
*CR,UKRAINE SPEC (EURO 6 REGULATION)
*CR,UKRAINE SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED,TURKEY SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVERSIDE ONLY
PLATED
PLATED,ISRAEL SPEC (EURO 6 REGULATION)
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVERSIDE ONLY
PLATED,TURKEY SPEC (EURO 6 REGULATION)
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.
PLATED
NO PAINT REQ.
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED
PLATED,RUSSIA&CUSTOM UNION SPEC&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVERSIDE ONLY
PLATED,TURKEY SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVERSIDE ONLY
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED
PLATED,ISRAEL SPEC (EURO 6 REGULATION)
PLATED,TURKEY SPEC (EURO 6 REGULATION)
NO PAINT REQ.
PLATED
NO PAINT REQ.
PLATED,RUSSIA&CUSTOM UNION SPEC&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
33 parts on this diagram · 2 diagrams in section
