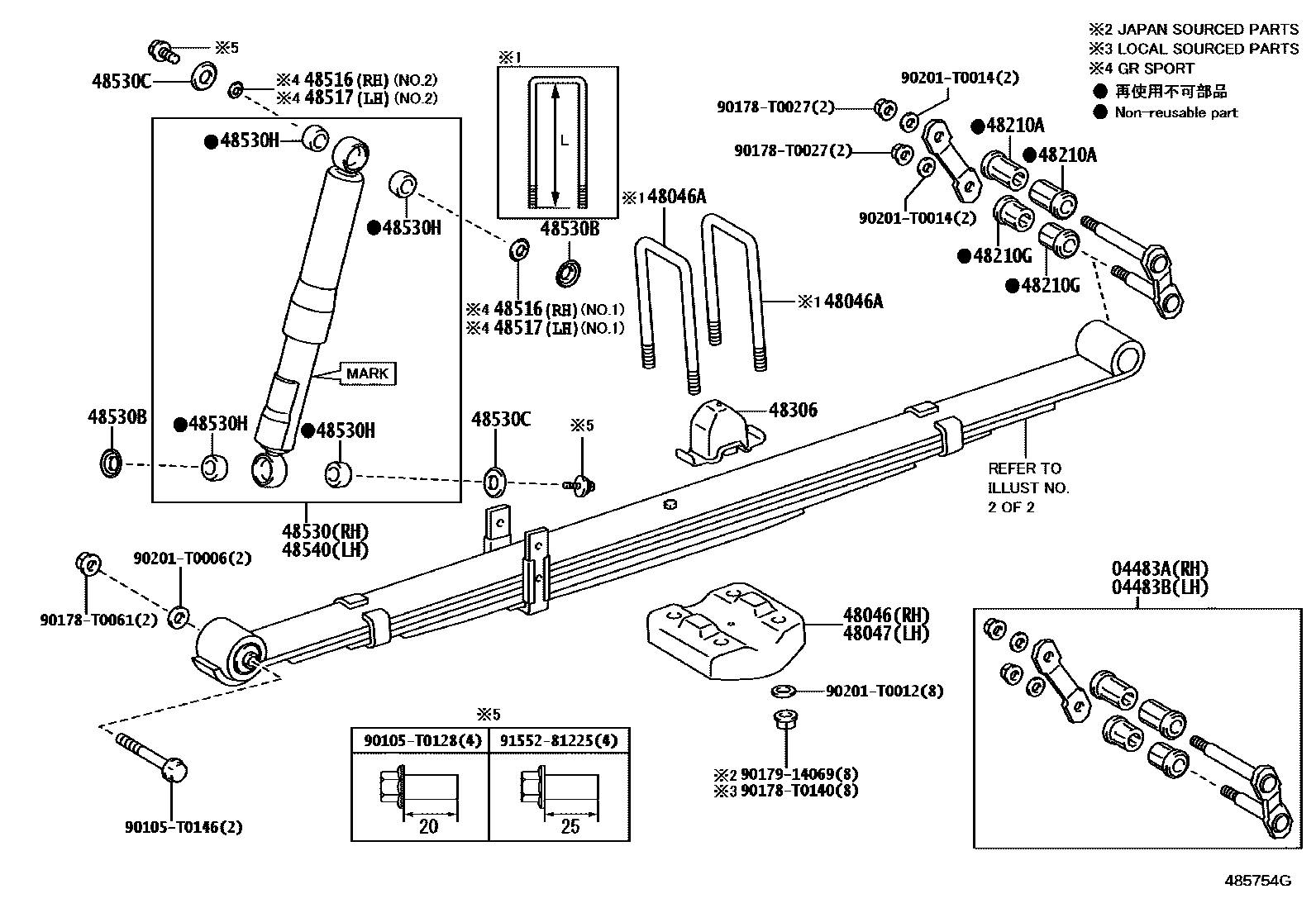

REAR SPRING & SHOCK ABSORBER
04483ASHACKLE KIT, REAR SPRING, RH
GR SPORT WIDE TREAD
04483BSHACKLE KIT, REAR SPRING, LH
GR SPORT WIDE TREAD
48046SEAT SUB-ASSY, SPRING U BOLT, RH
GR SPORT WIDE TREAD
48046ABOLT, U(FOR REAR SPRING)
L=180
L=180
L=225,GR SPORT WIDE TREAD
48047SEAT SUB-ASSY, SPRING U BOLT, LH
GR SPORT WIDE TREAD
48210SPRING ASSY, REAR RH
5-LEAF
5-LEAF
5-LEAF; 5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF,1 TON PAY LOAD PACKAGE
5-LEAF,1 TON PAY LOAD PACKAGE; 5-LEAF,1 TON PAY LOAD PACKAGE&HEADLAMP-LED; 5-LEAF,ISRAEL SPEC (EURO 6 REGULATION)&1 TON PAY LOAD PACKAGE&HEADLAMP-LED
5-LEAF,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
5-LEAF,1 TON PAY LOAD PACKAGE; 5-LEAF,1 TON PAY LOAD PACKAGE&HEADLAMP-4-BULB HALOGEN MULTI; 5-LEAF,ISRAEL SPEC (EURO 6 REGULATION)&1 TON PAY LOAD PACKAGE
5-LEAF; 5-LEAF,HEADLAMP-LED
5-LEAF; 5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48306BUMPER SUB-ASSY, REAR SPRING
GR SPORT WIDE TREAD
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),NO.1:REFER ILLUST.
GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),NO.2:REFER ILLUST.
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),NO.1:REFER ILLUST.
GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),NO.2:REFER ILLUST.
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0K660
MARK 48531-0K670
MARK 48531-0K760
MARK 48531-0K590
MARK 48531-0K780
MARK 48530-YY150,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K650,1 TON PAY LOAD PACKAGE
MARK 48531-0K640,1 TON PAY LOAD PACKAGE; MARK 48531-0K640,ISRAEL SPEC (EURO 6 REGULATION)&1 TON PAY LOAD PACKAGE
MARK 48531-0K770,1 TON PAY LOAD PACKAGE
MARK 48531-YY010,GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530HBUSH, REAR SHOCK ABSORBER
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48541-0K190
MARK 48541-0K200
MARK 48541-0K230
MARK 48541-0K390
MARK 48541-0K430
MARK 48531-YY010,GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48540-YY030,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48541-0K180,1 TON PAY LOAD PACKAGE
MARK 48541-0K170,1 TON PAY LOAD PACKAGE; MARK 48541-0K170,ISRAEL SPEC (EURO 6 REGULATION)&1 TON PAY LOAD PACKAGE
MARK 48541-0K250,1 TON PAY LOAD PACKAGE
90105T0128
main90105-T0128
90105T0146
main90105-T0146
90178T0027
main90178-T0027
90178T0061
main90178-T0061
90178T0140
main90178-T0140
9017914069
main90179-14069
90201T0006
main90201-T0006
90201T0012
main90201-T0012
90201T0014
main90201-T0014
9155281225
main91552-81225
26 parts on this diagram · 5 diagrams in section
