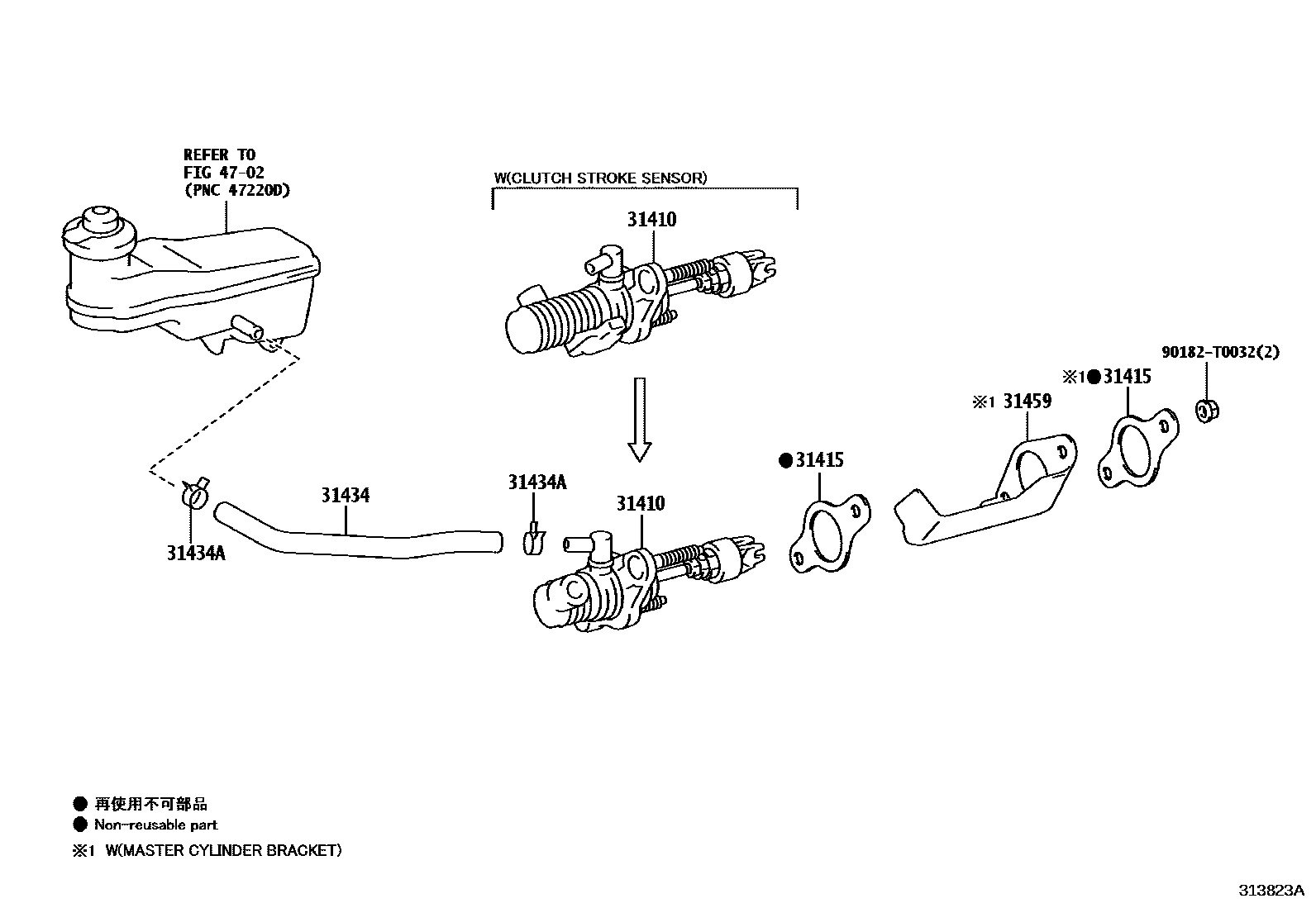

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K061iGUN126..LHD..6F; GUN126..RHD..6F202301-202401

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31420-0K071iGUN126..LHD..6F;GUN125,135..SAP..6F202208-202401

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010×2iGUN12#..RHD..6F202301-202401

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN126..RHD..6F202301-202401

main31434-0K091iGUN125..RHD..6F202301-202401

main31434-0K111iGUN125,135..THP..6F202208-202307

main31434-0K051iGUN126..LHD..6F202301-202401

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015×2iGUN125,135..THP..6F202208-202307

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-71010iGUN12#..RHD..6F202301-202401

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182T0032

main90182-T0032

7 parts on this diagram · 1 diagram in section
