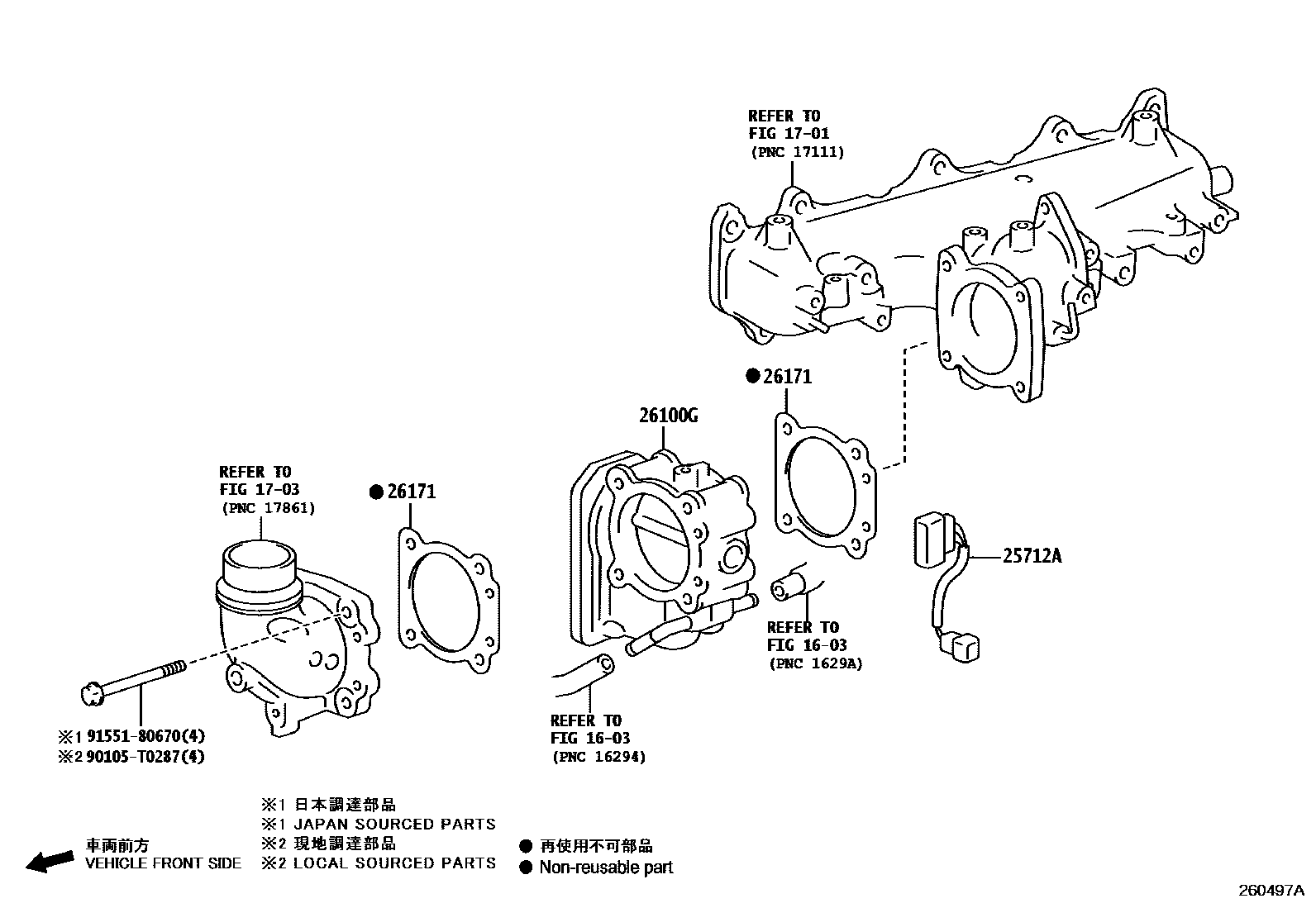

VENTURI

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i202208-202307

THA SOURCED PARTS

main25712-0E020i202208-202305

ISRAEL SPEC (EURO 6 REGULATION),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION),IND SOURCED PARTS

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E040i202208-202307

MARK=26100-0E040

26171GASKET, VENTURI

main26171-0E030×2supersedes 26171-0E040i202208-202401

THA SOURCED PARTS

main26171-0E040×2i202208-202307

IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS

90105T0287

main90105-T0287

9155180670

main91551-80670

8 parts on this diagram · 1 diagram in section
