VACUUM PUMP

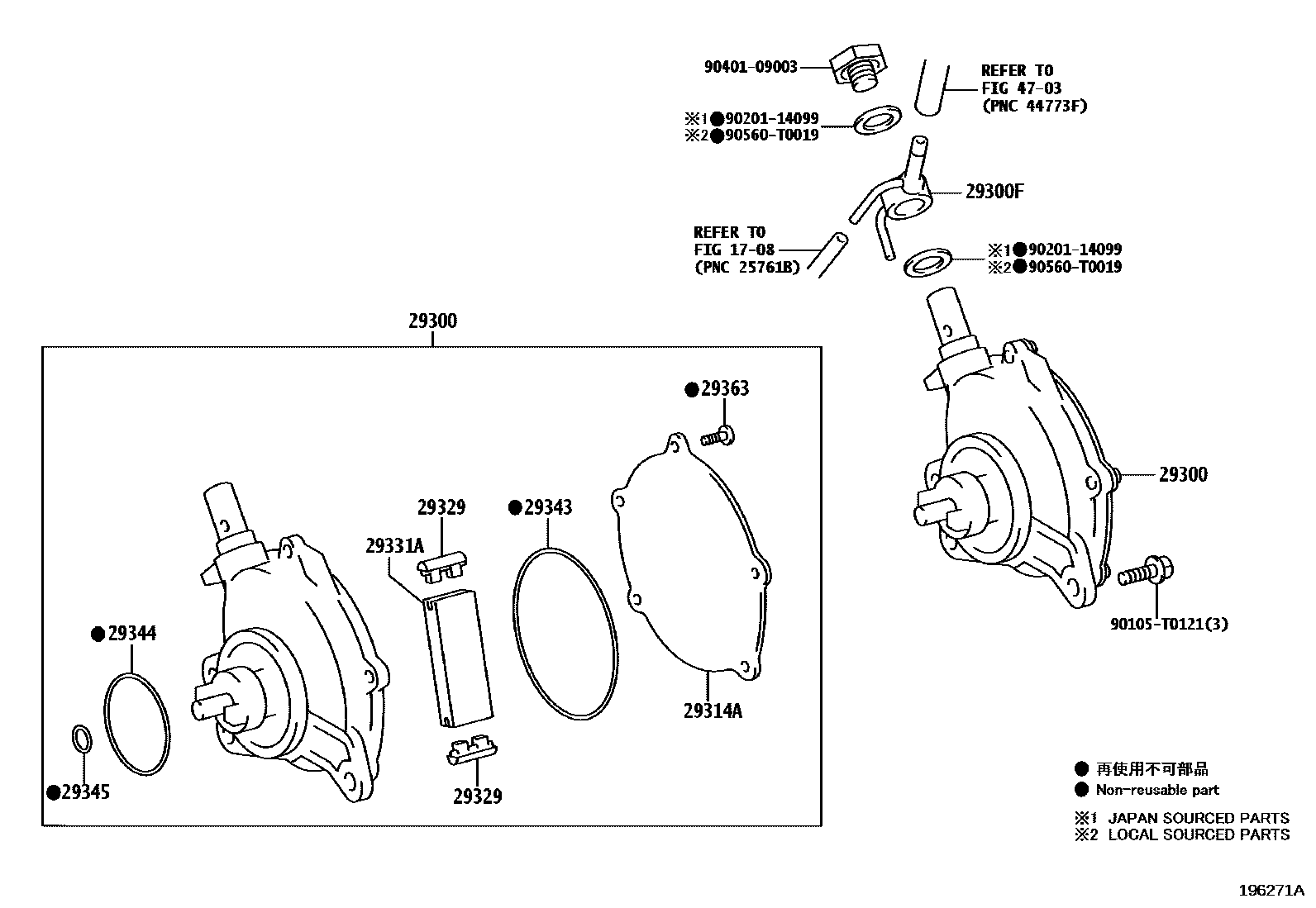

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

29300PUMP ASSY, VACUUM

main29300-0E011i202208-202307

(L),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(L),*502,TAIHO

main29300-11021i202208-202307

(J),*501; (J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

main29300-35010i202308-202401

(J),*501

29300FUNION

main90405-09194i202208-202307

(J)

main90405-T0001i202208-202307

(L)

29314ACOVER, END

main29314-0E010i202208-202307

(L),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(L),*502,TAIHO

main29314-11020i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

29329CAP, VACUUM PUMP VANE

main29329-0E010×2i202208-202401

(L),*501

main29329-37010×2i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

29331AVANE, VACUUM PUMP

main29331-0E010i202208-202307

(L),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(L),*502,TAIHO

main29331-11020i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i202208-202307

(L),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(L),*502,TAIHO

main29343-11020i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i202208-202307

(L),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(L),*502,TAIHO

main29344-22011i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i202208-202307

(L),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(L),*502,TAIHO

main29345-22011i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

29363SCREW, HOLLOW VACUUM PUMP

main29363-0E010×5i202208-202401

(L),*501

main29363-25010×5i202208-202307

(J),*502,TAIHO; RUSSIA&CUSTOM UNION SPEC,(J),*502,TAIHO

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

90105T0121

main90105-T0121

9020114099

main90201-14099

9040109003

main90401-09003

90560T0019

main90560-T0019

15 parts on this diagram · 1 diagram in section
