ANTENNA
86077COVER KIT, ANTENNA
main86077-12030
86101CORD SUB-ASSY, ANTENNA
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
86101JCORD SUB-ASSY, ANTENNA, NO.2
DATA COMMUNICATION MODULE-WITHOUT
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
86300BANTENNA ASSY, AMPLIFIER, NO.1
ISRAEL SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
TURKEY SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
RUSSIA&CUSTOM UNION SPEC&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
86309EPOLE SUB-ASSY, ROOF ANTENNA
RUSSIA&CUSTOM UNION SPEC&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
ISRAEL SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
TURKEY SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
86396NUT, ANTENNA
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
86769HOUSING, ROOF ANTENNA
main86769-0K030
9011906A06
main90119-06A06

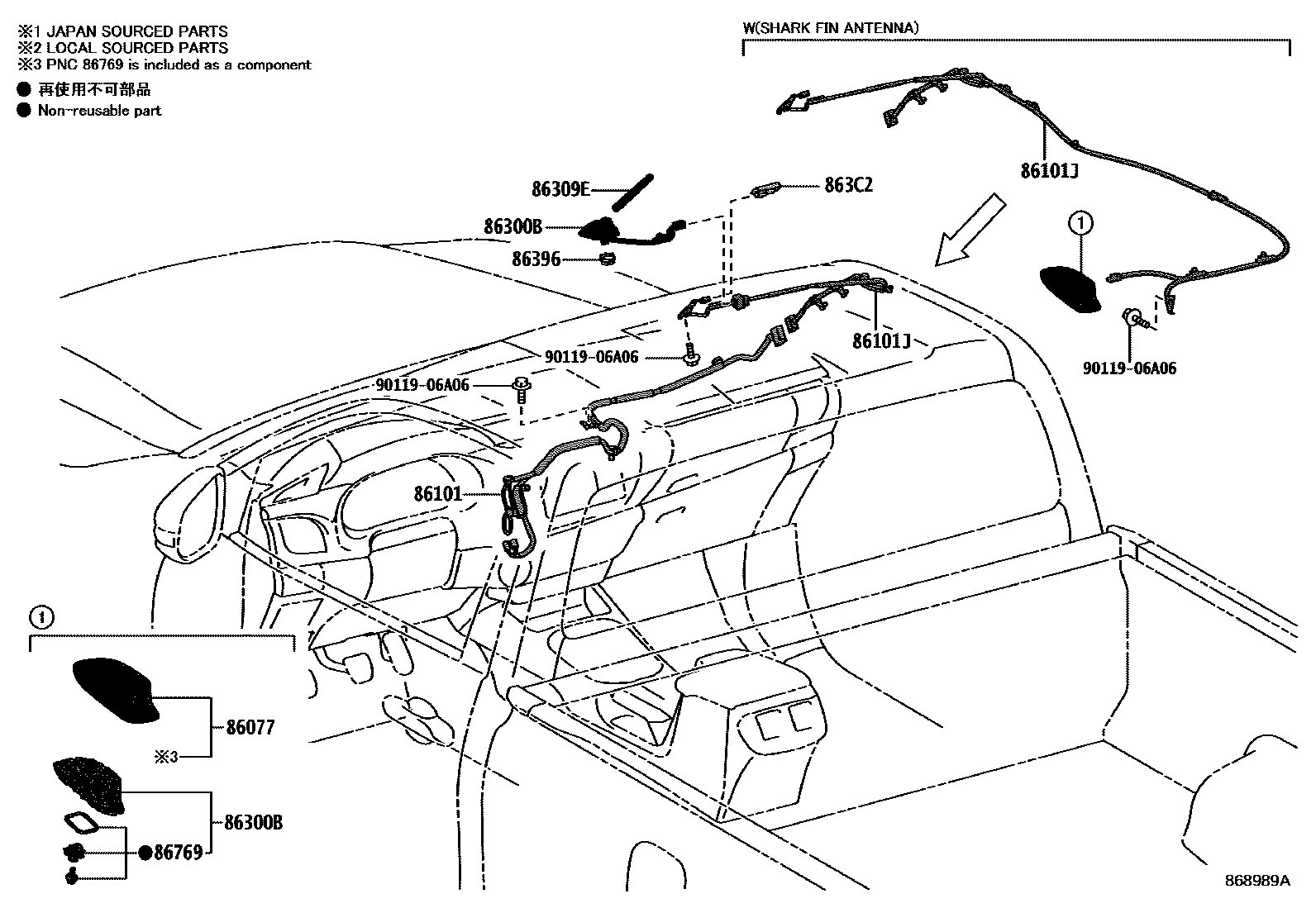

9 parts on this diagram · 2 diagrams in section
