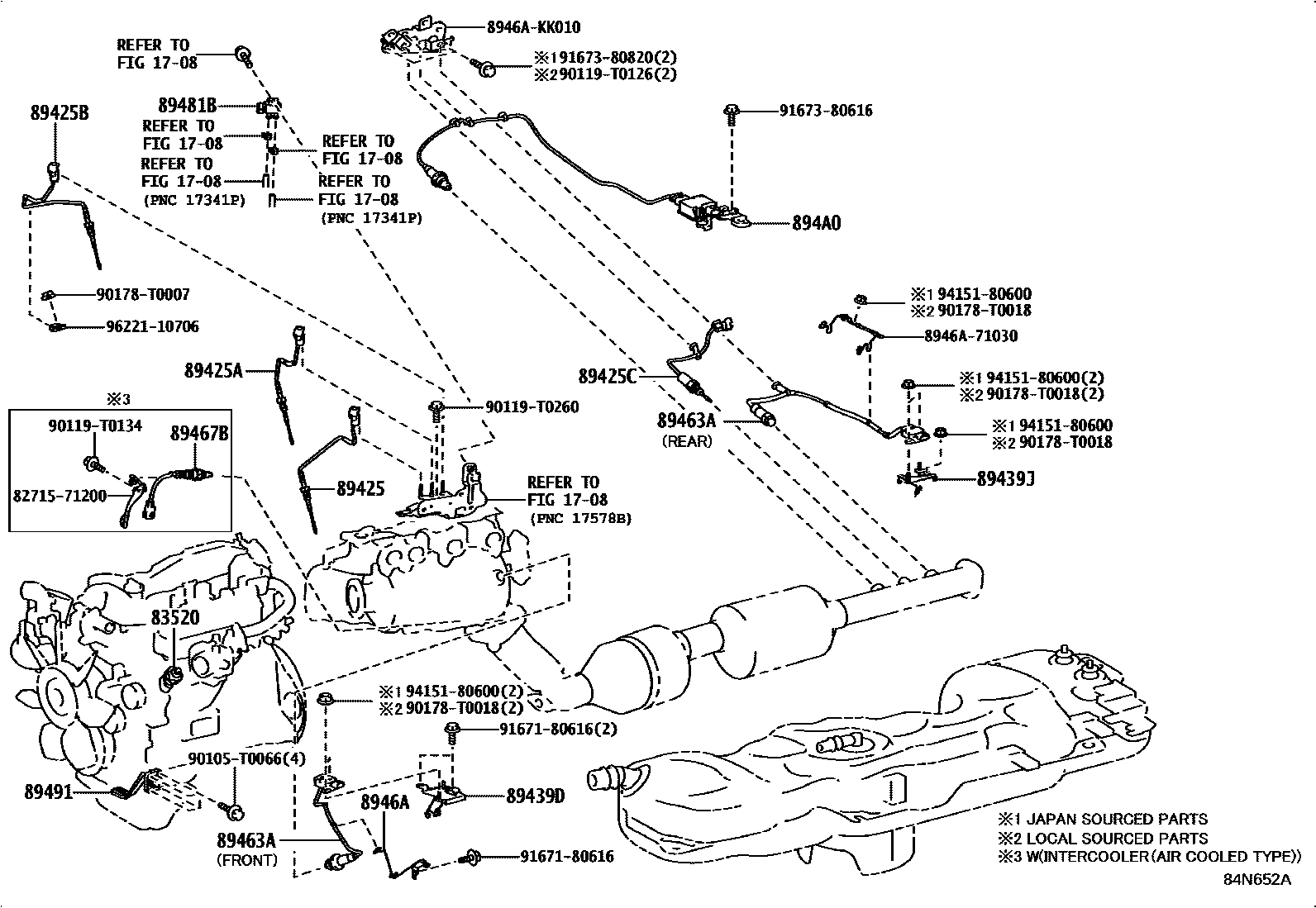

SWITCH & RELAY & COMPUTER
1708
83520GAGE ASSY,OIL PRESSURE SENDER
89425SENSOR, EXHAUST GAS TEMPERATURE
89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3
89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
89439DBRACKET, SENSOR, NO.1
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)
89439JBRACKET, SENSOR, NO.2
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)
89463ASENSOR, NITROGEN OXIDES
ISRAEL SPEC (EURO 6 REGULATION),REAR
REAR
TURKEY SPEC (EURO 6 REGULATION),REAR
UKRAINE SPEC (EURO 6 REGULATION),REAR
FRONT
ISRAEL SPEC (EURO 6 REGULATION),FRONT
TURKEY SPEC (EURO 6 REGULATION),FRONT
UKRAINE SPEC (EURO 6 REGULATION),FRONT
89467BSENSOR, AIR FUEL RATIO
8946ABRACKET, EXHAUST SENSOR CLAMP
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)
89481BSENSOR, DIFFERENTIAL PRESSURE
89491SENSOR, ENGINE OIL LEVEL
894A0SENSOR ASSY, PARTICULATE MATTER
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)
8271571200BRACKET,WIRING HARNESS CLAMP
main82715-71200
8946A71030BRACKET, EXHAUST SENSOR CLAMP
main8946A-71030
8946AKK010BRACKET, EXHAUST SENSOR CLAMP
main8946A-KK010
90105T0066
main90105-T0066
90119T0126
main90119-T0126
90119T0134
main90119-T0134
90119T0260
main90119-T0260
90178T0007
main90178-T0007
90178T0018
main90178-T0018
9167180616
main91671-80616
9167380616
main91673-80616
9167380820
main91673-80820
9415180600
main94151-80600
9622110706
main96221-10706
28 parts on this diagram · 16 diagrams in section
