MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
DOOR BELT MOULDING-WITH(BLACK)
75720MOULDING ASSY, FRONT DOOR BELT, LH
DOOR BELT MOULDING-WITH(BLACK)
75730MOULDING ASSY, REAR DOOR BELT, RH
main68180-0K010supersedes 68180-0K120iGUN12#..DCB..SAP..H; GUN135..DCB..SAP;GUN125..DCB..SAP..(L,S)202108-202301
DOOR BELT MOULDING-WITH(BLACK)
75740MOULDING ASSY, REAR DOOR BELT, LH
DOOR BELT MOULDING-WITH(BLACK)
75770MOULDING ASSY, HOOD, FRONT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
PLATED
NO PAINT REQ.
PLATED; PLATED,ISRAEL SPEC (EURO 6 REGULATION); PLATED,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED)); PLATED,REAR BUMPER-WITH(*RUPD(PLATED)); PLATED,TURKEY SPEC (EURO 6 REGULATION); PLATED,TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
main75770-0K450supersedes 75770-0K440iGUN125..THP..6F; GUN125..THP..H; GUN125..THP..S; GUN126..S; GUN126..THP..H202108-202207
PLATED; PLATED,REAR BUMPER-WITH(*RUPD(PLATED)); PLATED,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED)); PLATED,UKRAINE SPEC (EURO 6 REGULATION); PLATED,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
NO PAINT REQ.,GR SPORT
75777EPAD, HOOD FRONT MOULDING
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
75851AMOULDING, ROCKER PANEL, FRONT RH
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
STEP & STEP COVER-WITHOUT
76924GRETAINER, ROCKER PANEL MOULDING
STEP & STEP COVER-WITHOUT
main76924-0K020×10iGUN12#..(DCB,XTR)..SAP; GUN125..SCB; GUN135..(DCB,XTR)..SAP; GUN135..SCB202109-202301
STEP & STEP COVER-WITHOUT
90159T0009
main90159-T0009
9046707215
main90467-07215
9046708224
main90467-08224
90467T0050
main90467-T0050

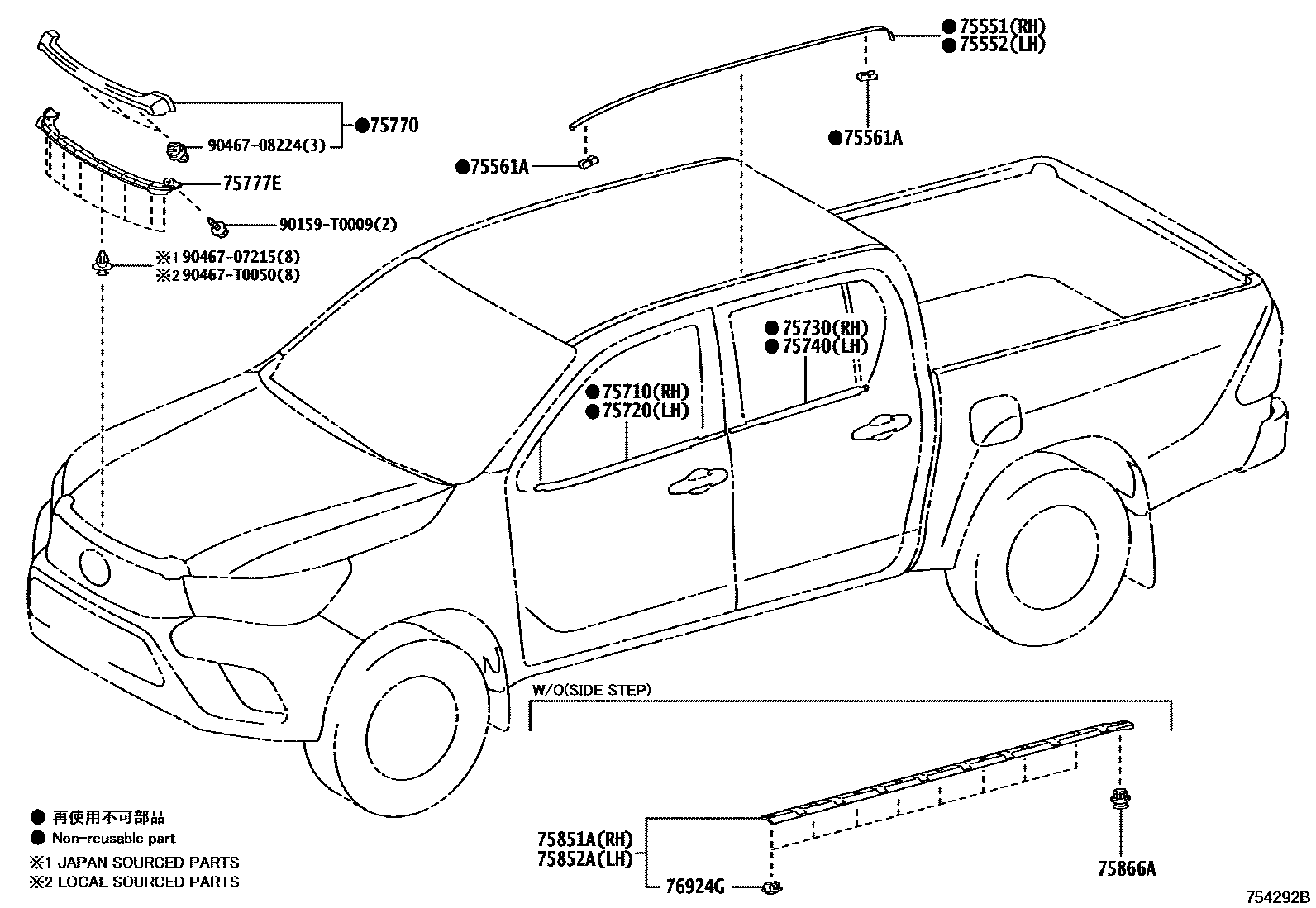

17 parts on this diagram · 5 diagrams in section
