E
EPC Data

SEAT & SEAT TRACK

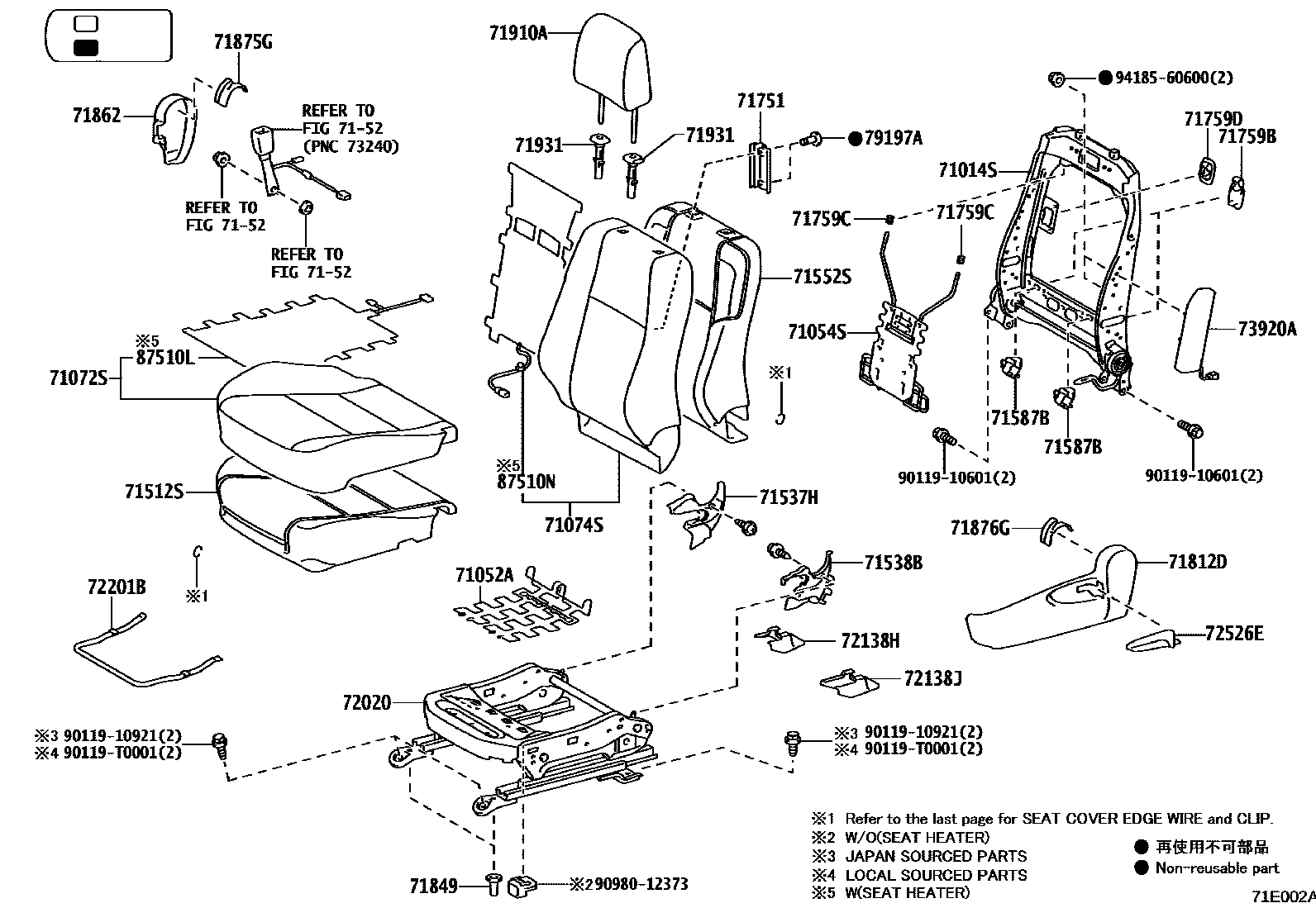

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K460i202109-202301
main71014-0K480i202109-202301
main71014-0K500i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71014-0KA10i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-0D060i202109-202301
main71051-06070supersedes 71051-0K230i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K040i202109-202301
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0KU70-C0supersedes 71072-0KL00-C2i202109-202301
BLACK,TRIM2#
main71072-0KL41-C2i202109-202301
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KL70-C2i202109-202301
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-0KM20-C2supersedes 71072-0KL80-C2i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KN51-C2i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-0KQ10-C2supersedes 71072-0KV10-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KQ40-C2i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU60-C0i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KV00-C0supersedes 71072-0KV10-C0i202109-202301
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-0KV20-C1supersedes 71072-0KV10-C0i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-F0010-C1i202108-202207
TURKEY SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-F0030-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71072-F0230-C0supersedes 71072-F0C10-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-F0250-C0supersedes 71072-F0C10-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-YP070-C1i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-YP080-C1i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP090-C1i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP100-C1i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP540-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71072-YP550-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-YP850-C0i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP860-C0i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT,BLACK/RED,TRIM2#
main71072-YP870-C0i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP880-C0i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT,BLACK/RED,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K770-C3supersedes 71074-0K790-C3i202109-202301
BLACK,TRIM2#
main71074-0KA70-C5supersedes 71074-0K830-C3i202109-202301
BLACK,TRIM2#
main71074-0K720-C3i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0KA41-C7supersedes 71074-0KA00-C9i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-0KA80-20i202109-202301
SEAT HEATER-WITHOUT,BLACK/GRAY,TRIM2#
main71074-0KA91-C7i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK/GRAY,TRIM2#
main71074-0KR20-C0i202108-202207
TURKEY SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-0KX30-C1i202109-202301
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71074-0KX40-C1i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71074-0KY00-C0i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71074-0KY90-C0supersedes 71074-0KY40-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-0KZ10-C0supersedes 71074-0KY40-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-YP160-C2i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP170-C2i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP360-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP370-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YPA20-C0i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT,BLACK/RED,TRIM2#
main71074-YPA30-C0i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0K170i202109-202301
main71512-0K591i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main71512-0K091supersedes 71512-0KA90i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main71512-0K181i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0K191i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT
main71512-0K201i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT
main71512-0K580i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02200-C0i202109-202301
BLACK,TRIM2#
main71537-0K170-C0i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71537-0D400i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)
main71537-0K150-C0i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-02110-C0supersedes 71538-02110-C0i202109-202301
BLACK,TRIM2#
main71538-0K130-C0i202109-202301
BLACK,TRIM2#
main71537-0D400i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)
main71538-0K200-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0K400i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71552-0K450i202109-202301
SEAT COVER MATERIAL-VINYL LEATHER
main71552-0K460i202109-202301
main71552-0KG70i202108-202207
main71552-0KE30i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT
main71552-0KG30i202108-202207
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K040×4i202109-202301
71751HANGER, SEAT COVER
main71751-0K070×2i202109-202301
71759BHOOK, FRONT SEATBACK
main71759-0K140×4i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITHOUT
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K080×4i202109-202301
71759DHOOK, FRONT SEATBACK, NO.2
main71759-0K070-C0×2i202108-202207
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0K150-C0i202109-202301
BLACK,TRIM2#
main71812-0K330-C0i202109-202301
BLACK,TRIM2#
main71812-0D570-C0i202108-202207
TURKEY SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71812-0K120-C0supersedes 71812-0D660-C1i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71812-0K490-C0supersedes 71812-0K480-C0i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K570-C0i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-02040×2i202109-202301
main71848-47010×2i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0K140-C0i202109-202301
BLACK,TRIM2#
main71862-0K270-C0i202109-202301
BLACK,TRIM2#
main71862-0K320-C0i202109-202301
BLACK,TRIM2#
main71862-0D440-C0i202108-202207
TURKEY SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71862-0K250-C0supersedes 71862-0D450-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71862-0K390-C0i202109-202301
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-0K160-C0i202109-202301
BLACK,TRIM2#
main71875-0K130-C0i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71875-0K280i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-0K160-C0i202109-202301
BLACK,TRIM2#
main71876-0K130-C0i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71876-0K280i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
71910AHEADREST ASSY, FRONT SEAT
main71910-0KL30-C0×2i202109-202301
BLACK,TRIM2#
main71910-0KL60-C0×2supersedes 71910-0KL50-C0i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71910-0KM90-C0×2i202108-202207
TURKEY SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71910-0KN30-C1×2supersedes 71910-0KN10-C0i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71910-YP070-C0×2i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0D140-C1×2i202108-202207
W(LOCK),ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71930-47050-C5×2i202109-202301
W(LOCK),GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71931-0D150-C1×2i202108-202207
W/O(LOCK),TURKEY SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEATHEATER-WITHOUT,BLACK,TRIM2#
main71931-47030-C4×2i202109-202301
W/O(LOCK),MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0K140i202109-202301
main72020-0K080i202108-202207
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT
main72020-0K160supersedes 72020-0K150i202109-202301
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
72138COVER, SEAT TRACK, OUTER LH
main72125-0D120i202108-202207
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-KK010-C0i202109-202301
BLACK,TRIM2#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0i202109-202301
BLACK,TRIM2#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0K120i202109-202301
main72211-0K200i202108-202207
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06130-C0i202109-202301
BLACK,TRIM2#
main72526-0D260-C0i202109-202301
BLACK,TRIM2#
main72526-0D360-C0i202108-202207
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0K080i202109-202301
sub73920-0K170
main73920-0K210i202108-202207
79197ARIVET
main79197-0K010×4i202109-202301
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-0K220i202109-202301
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main87510-0K230i202109-202301
SEAT COVER MATERIAL-NATURAL LEATHER
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-0K050i202109-202301
main87530-0K060i202109-202301
WINDSHIELD DEICER-WITH
main87530-0K070i202109-202301
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600

37 parts on this diagram · 18 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
