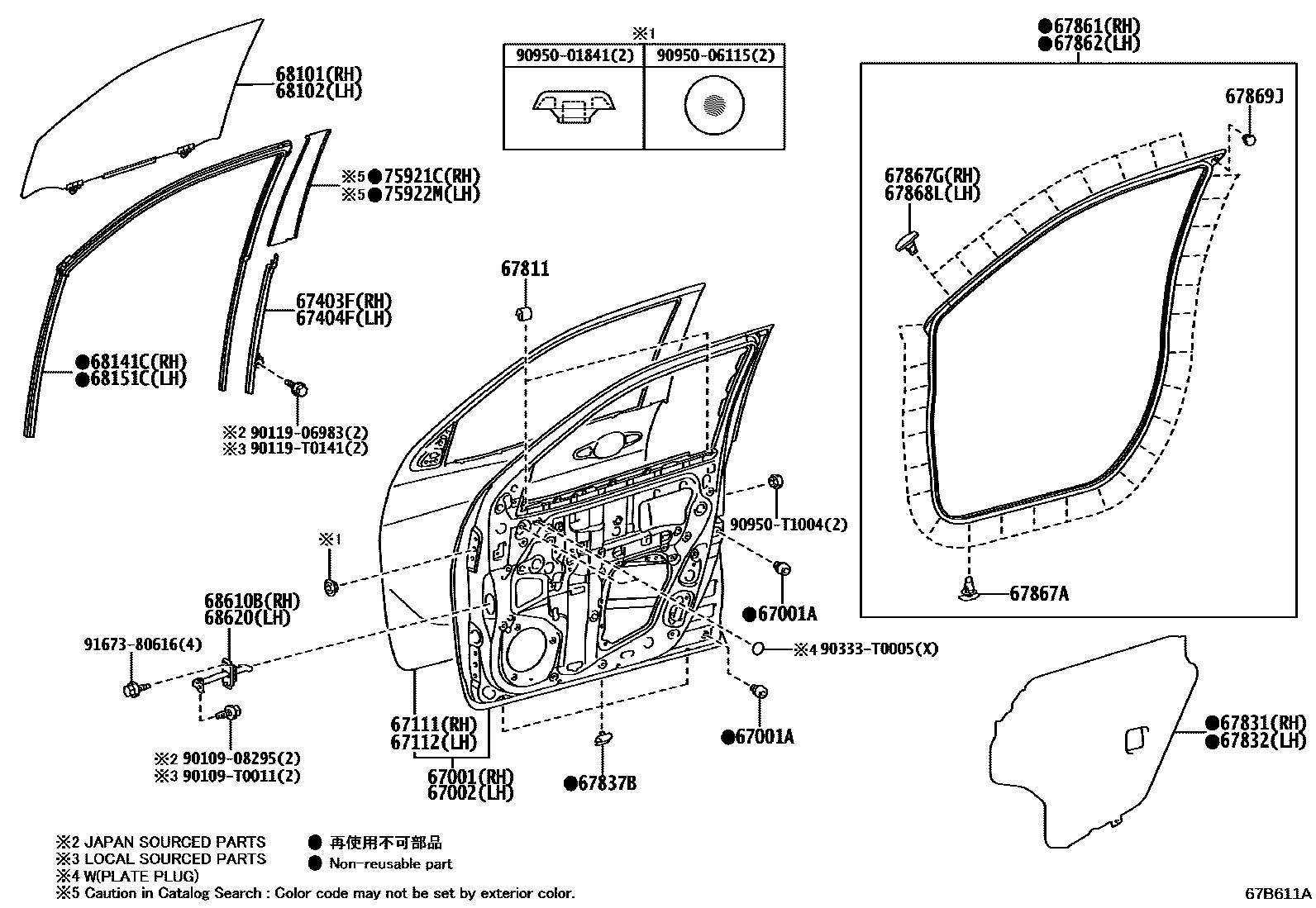

FRONT DOOR PANEL & GLASS

0001 1DOOR TRIM 0002 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM,W(POWER WINDOW) 0005 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGUN12#,135..THP202108-202207

main67001-KK020iGUN125,135..SCB202109-202301

main67001-KK030iGUN12#,135..XTR202109-202301

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×4iGUN12#,135..(DCB,SCB)..SAP202108-202301

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGUN12#,135..THP202108-202207

main67002-KK020iGUN125,135..SCB202109-202301

main67002-KK030iGUN12#,135..XTR202109-202301

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iGUN12#,135..THP202108-202207

main67111-KK020iGUN125,135..SCB202109-202301

main67111-KK030iGUN12#,135..XTR202109-202301

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGUN12#,135..THP202108-202207

main67112-KK020iGUN125,135..SCB202109-202301

main67112-KK030iGUN12#,135..XTR202109-202301

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGUN12#,135..THP202108-202207

main67403-0K100iGUN12#,135..SAP202109-202301

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGUN12#,135..THP202108-202207

main67404-0K100iGUN12#,135..SAP202109-202301

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGUN12#,135..THP202108-202207

main69759-0K060×4iGUN12#,135..SAP202109-202301

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iGUN12#,135..THP202108-202207

main67831-0K130iGUN12#,135..SCB,XTR202109-202301

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGUN12#,135..DCB..SAP202108-202301

main67832-0K130iGUN12#,135..SCB,XTR202109-202301

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K092×6iGUN12#,135..THP202108-202207

PLANT TMT

main67837-0K102×6iGUN12#,135..SAP202109-202206

main67837-0K103×6iGUN12#,135..SAP202207-202301

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K121iGUN12#,135..THP202108-202207

main67861-0K140iGUN12#,135..XTR202109-202301

main67861-0K151iGUN12#,135..DCB..SAP202109-202301

main67861-0K170iGUN125,135..SCB202109-202301

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K121iGUN12#,135..THP202108-202207

main67862-0K140iGUN12#,135..XTR202109-202301

main67862-0K151iGUN12#,135..DCB..SAP202109-202301

main67862-0K170iGUN125,135..SCB202109-202301

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN12#,135..THP202108-202207

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020×11iGUN12#,135..SCB,XTR202109-202301

main67867-52040×9iGUN12#,135..THP202108-202207

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×9iGUN12#,135..DCB..SAP202108-202301

main67867-52030×11iGUN125,135..SCB202109-202301

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-22030×2iGUN125,135..SCB202109-202301

main67869-26050×2iGUN12#,135..XTR202109-202301

main90467-06084×2iGUN12#,135..THP202108-202207

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K200iGUN125..L202109-202301

main68101-0K230iGUN135..L;GUN125,135..SCB..S202109-202301

main68101-0K272iGUN12#,135..THP202108-202207

main68101-0K280iGUN12#,135..DCB..SAP..(H,S)202109-202301

main68101-0K310iGUN12#,135..XTR..(H,S)202109-202301

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K200iGUN125..L202109-202301

main68102-0K230iGUN135..L;GUN125,135..SCB..S202109-202301

main68102-0K272iGUN12#,135..THP202108-202207

main68102-0K280iGUN12#,135..DCB..SAP..(H,S)202109-202301

main68102-0K310iGUN12#,135..XTR..(H,S)202109-202301

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGUN12#,135..THP202108-202207

main68141-0K090iGUN12#,135..DCB..SAP202109-202301

main68141-0K110iGUN12#,135..SCB,XTR202109-202301

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGUN12#,135..THP202108-202207

main68151-0K090iGUN12#,135..DCB..SAP202109-202301

main68151-0K110iGUN12#,135..SCB,XTR202109-202301

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN12#,135..THP202108-202207

main68610-0K110iGUN12#,135..SAP202109-202301

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN12#,135..THP202108-202207

main68610-0K110iGUN12#,135..SAP202109-202301

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGUN12#..THP..S;GUN135..THP..6F; GUN135..6FC;GUN12#..THP..H202108-202207

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75921-0K080iGUN12#..XTR..H202109-202301

main75921-0K090iGUN12#,135..DCB..SAP..H; GUN125..LHD..DCB..SAP..S202109-202301

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGUN12#..THP..S;GUN135..THP..6F; GUN135..6FC;GUN12#..THP..H202108-202207

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75922-0K080iGUN12#..XTR..H202109-202301

main75922-0K090iGUN12#,135..DCB..SAP..H; GUN125..LHD..DCB..SAP..S202109-202301

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

34 parts on this diagram · 5 diagrams in section
