57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010i202108-202207

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010i202108-202207

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK020i202108-202207

main57411-KK010i202108-202207

RUSSIA&CUSTOM UNION SPEC

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK020i202108-202207

main57412-KK010i202108-202207

RUSSIA&CUSTOM UNION SPEC

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010i202108-202207

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K011i202108-202207

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010i202108-202207

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010i202108-202207

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010i202108-202207

ISRAEL SPEC (EURO 6 REGULATION); RUSSIA&CUSTOM UNION SPEC; TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

main57451-KK030i202109-202301

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010i202108-202207

ISRAEL SPEC (EURO 6 REGULATION); RUSSIA&CUSTOM UNION SPEC; TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

main57452-KK020i202109-202301

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2i202108-202207

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010i202108-202207

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010i202108-202301

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010i202108-202207

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010i202108-202301

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010i202108-202207

main57509-KK020i202108-202207

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030i202108-202301

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010i202108-202207

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010i202109-202301

main57517-KK020i202108-202301

main57517-KK030i202109-202301

main57517-KK040i202108-202301

5752HOLE PLUG

→ Go to FIG 57-52

57535BRACE, FRONT FLOOR, RH

main57535-KK010i202108-202301

57536BRACE, FRONT FLOOR, LH

main57536-KK010i202108-202207

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010i202109-202301

main58102-KK020i202108-202301

main58102-KK030i202109-202301

main58102-KK040i202108-202207

58111PAN, FRONT FLOOR

main58111-KK050i202109-202111

main58111-KK060i202108-202111

main58111-KK070i202109-202111

main58111-KK080supersedes 58111-KK130i202108-202111

ISRAEL SPEC (EURO 6 REGULATION); TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

main58111-KK140i202111-202301

main58111-KK150i202111-202207

main58111-KK160i202111-202301

main58111-KK170i202111-202207

ISRAEL SPEC (EURO 6 REGULATION); TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

main58111-KK020i202108-202111

RUSSIA&CUSTOM UNION SPEC

main58111-KK120i202111-202207

RUSSIA&CUSTOM UNION SPEC

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010i202108-202207

ISRAEL SPEC (EURO 6 REGULATION); RUSSIA&CUSTOM UNION SPEC; TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

main58117-KK020i202109-202301

58118EBRACKET, JACK SET

main58118-KK010i202108-202207

ISRAEL SPEC (EURO 6 REGULATION); RUSSIA&CUSTOM UNION SPEC; TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

main58118-KK020i202109-202301

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010i202108-202207

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010i202108-202207

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010i202108-202207

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010i202108-202207

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010i202109-202301

main58221-KK020i202108-202207

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010i202109-202301

main58222-KK020i202108-202207

90115T0011

main90115-T0011

90119T0438

main90119-T0438

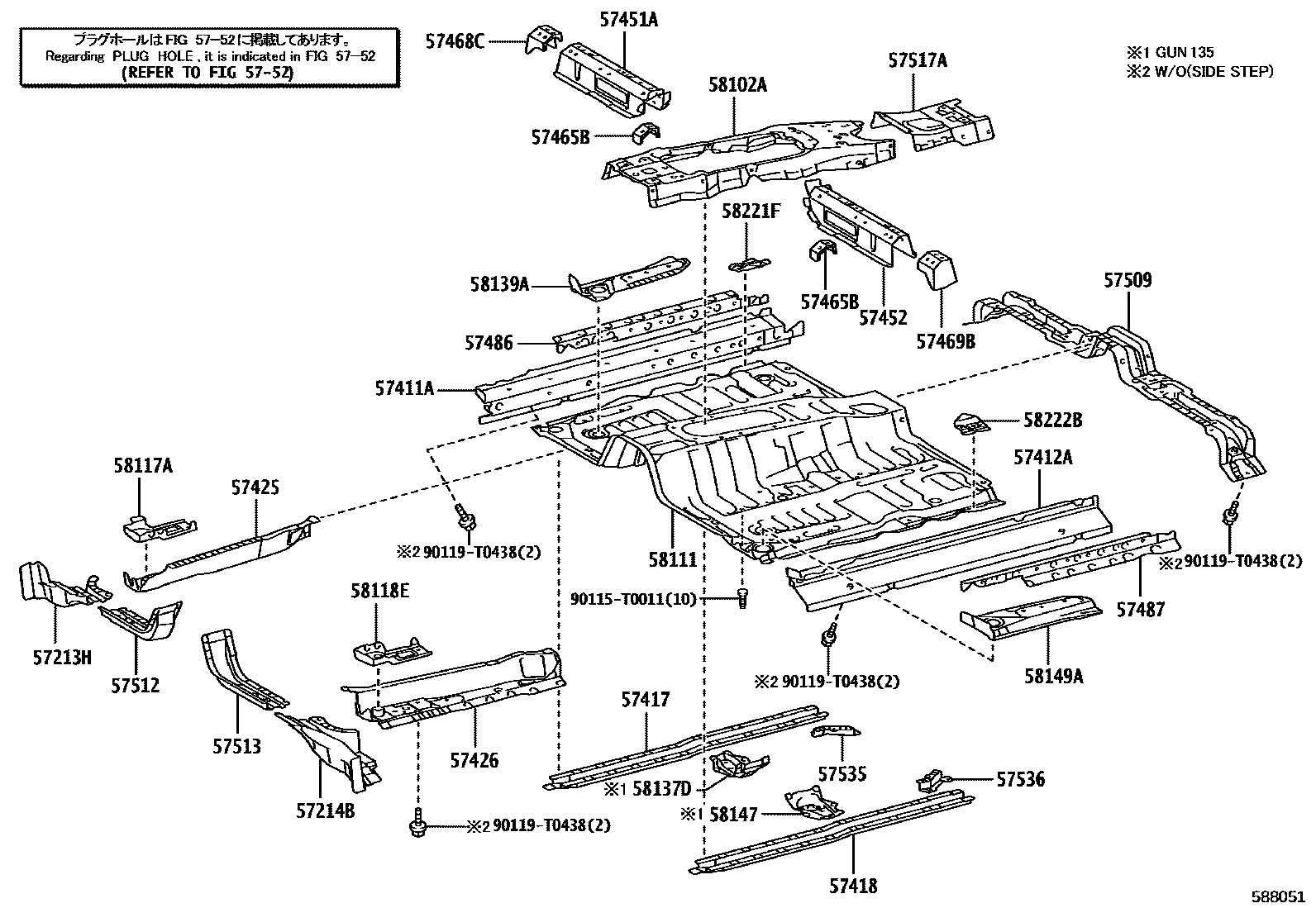

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
