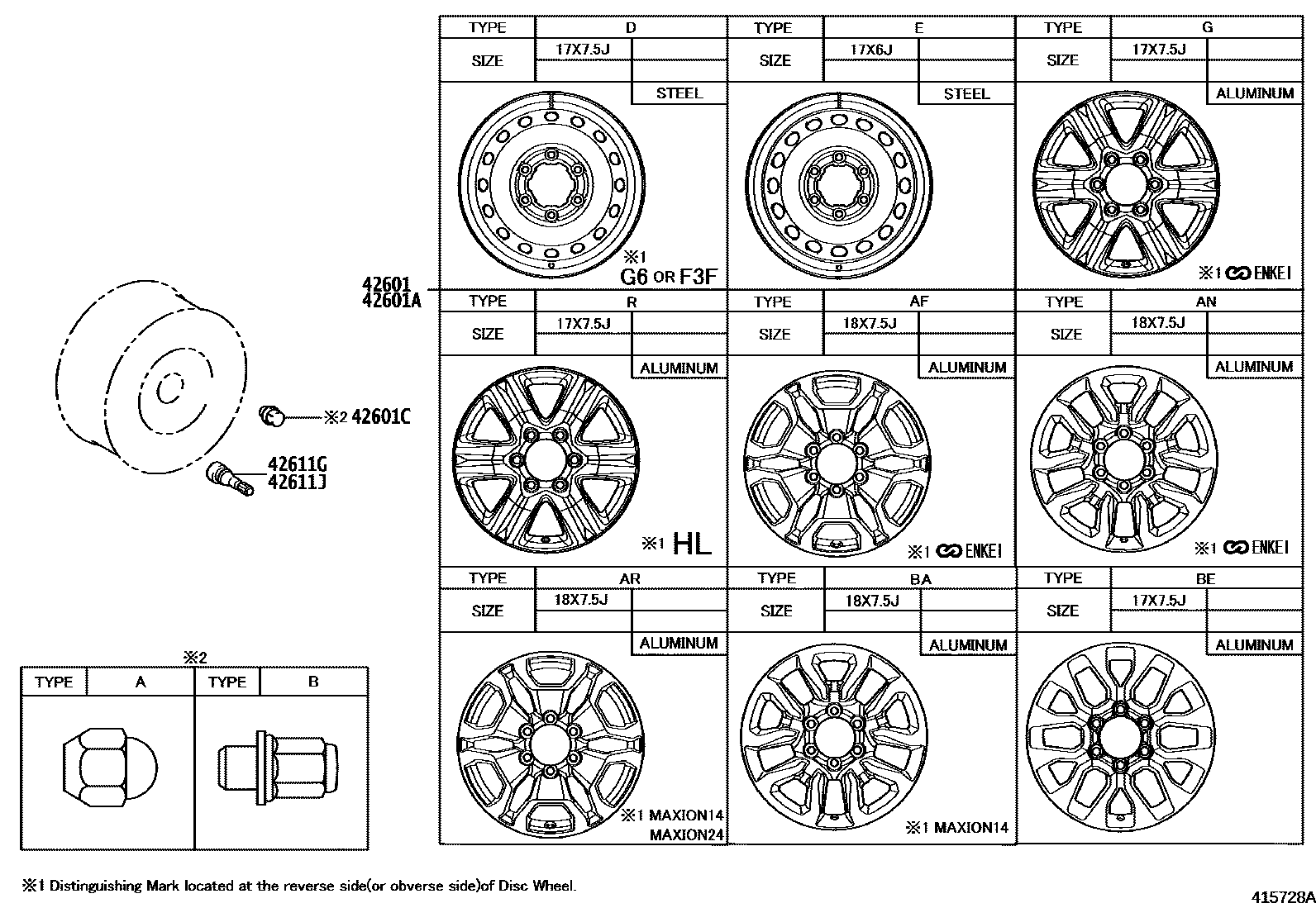

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPED:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL CAP-WITH(FULL CAP),TYPE D:REFERILLUST.; 17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.; 17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPEG:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE G:REFER ILLUST.; 17X7.5J, #,TYPE G:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
18X7.5J, #,T/P AF:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AR:REFER ILLUST.
18X7.5J,#,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AN:REFERILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AN:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P BA:REFER ILLUST.
17X7.5J,#,TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),T/P BE:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J, #,TYPE D:REFER ILLUST.
main42611-0KJ01iGUN125..RHD..SCB; GUN126,135..SAP..H;GUN125..LHD..SAP..H;GUN125..RHD..(DCB,XTR)202109-202301
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.; 17X7.5J, #,TYPE D:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
18X7.5J, #,T/P AF:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.; 18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AR:REFER ILLUST.
18X7.5J,#,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AN:REFERILLUST.; 18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AN:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P BA:REFER ILLUST.
17X7.5J,#,TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),T/P BE:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
(J),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/60R18 ALUMINUM,(J),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/65R17 ALUMINUM,(J),T/P B:REF.ILLUST
(L),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/60R18 ALUMINUM,(L),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST; TIRE & DISC WHEEL-265/65R17 ALUMINUM,(L),T/P B:REF.ILLUST
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
5 parts on this diagram · 2 diagrams in section
