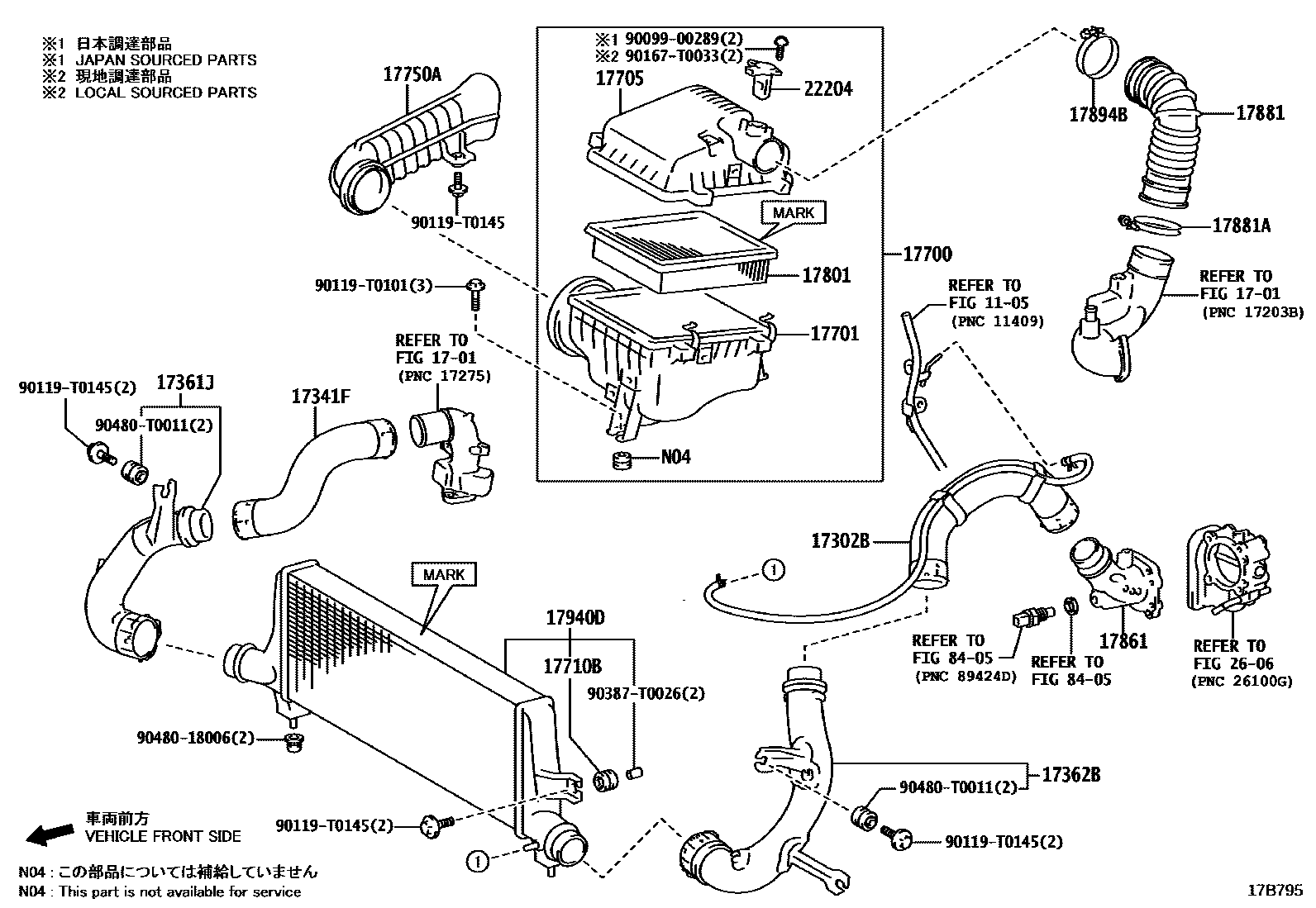

AIR CLEANER
1105CYLINDER BLOCK
1701MANIFOLD
17302BHOSE SUB-ASSY, AIR
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17341FHOSE, AIR, NO.1
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17361JTUBE, AIR, NO.1
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17362BTUBE, AIR, NO.2
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17700CLEANER ASSY, AIR
THA SOURCED PARTS
ZAF SOURCED PARTS
17701CASE SUB-ASSY, AIR CLEANER
THA SOURCED PARTS
17705CAP SUB-ASSY, AIR CLEANER
THA SOURCED PARTS
ZAF SOURCED PARTS
17710BGROMMET
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
17750AINLET ASSY, AIR CLEANER
MARK = 17750-0L060
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,THA SOURCED PARTS; THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
17881HOSE, AIR CLEANER, NO.1
THA SOURCED PARTS
ZAF SOURCED PARTS
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK=0E010; MARK=0E010
22204METER SUB-ASSY, INTAKE AIR FLOW
2606VENTURI
8405ELECTRONIC CONTROLED DIESEL (ECD)
9009900289
main90099-00289
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
27 parts on this diagram · 2 diagrams in section
