OIL FILTER

15600AUNION(FOR OIL FILTER)

main90404-T0002i1GDFTV,2GDFTV..GUN12#,135..THP202108-202301

(L)

15601FILTER SUB-ASSY, OIL

main90915-TB001i1GDFTV,2GDFTV..GUN12#,135..THP202108-202301

MARK 90915-TB001

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-T0046i1GDFTV,2GDFTV..GUN12#,135..SAP202108-202301

THA SOURCED PARTS

main90301-T0062i2GDFTV..GUN125..THP..6F202108-202207

RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS

main90301-T0062i1GDFTV..GUN126..THP202108-202207

IND SOURCED PARTS

15677BRACKET, OIL FILTER

main15677-0E010i1GDFTV,2GDFTV..GUN12#,135..THP202108-202301

THA SOURCED PARTS

main15677-0E020i1GDFTV..GUN126..THP202108-202207

IND SOURCED PARTS

main15677-0E020i1GDFTV..GUN126..THP202108-202207

RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0120

main90105-T0120

9012608053

main90126-08053

90178T0019

main90178-T0019

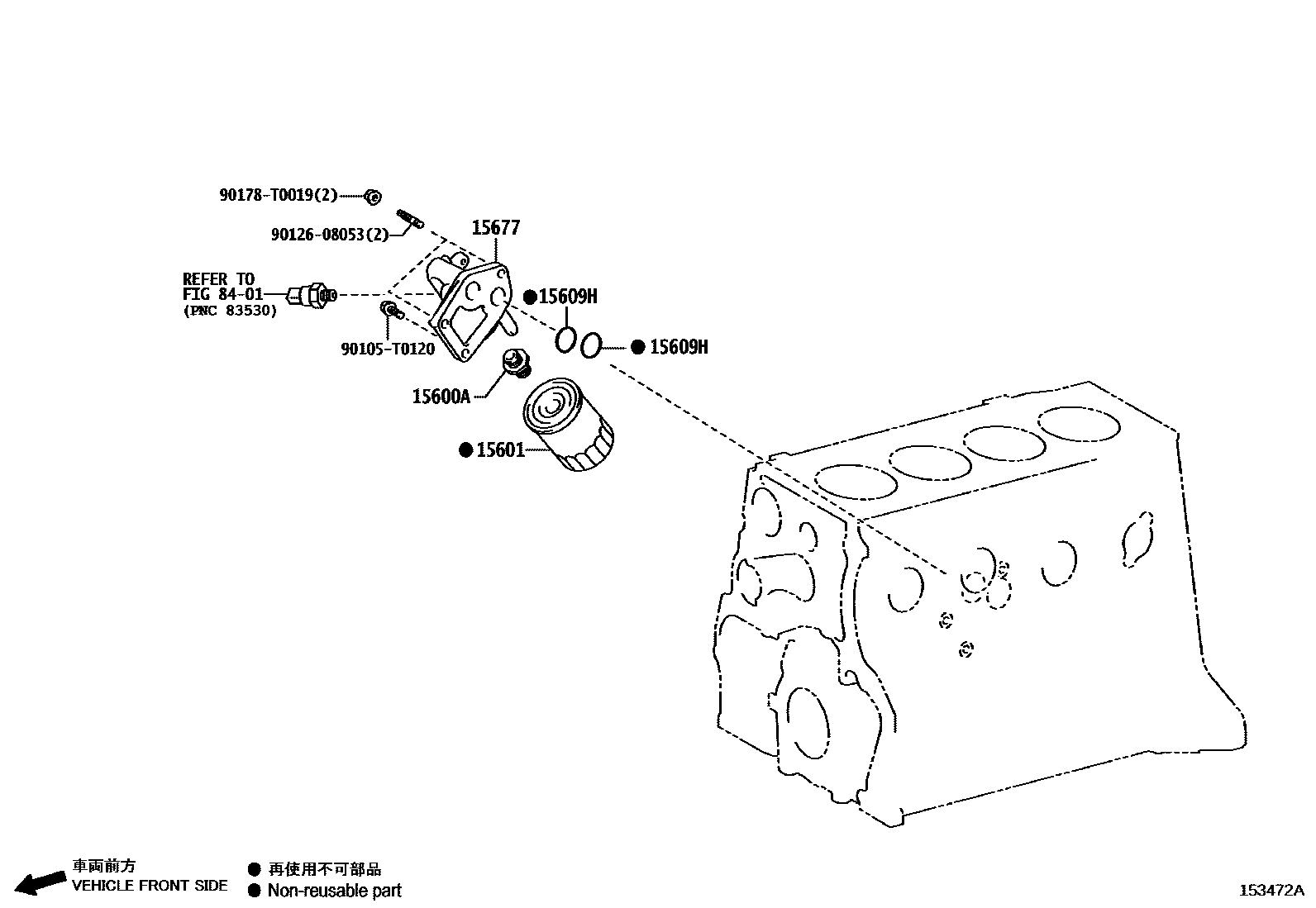

8 parts on this diagram · 1 diagram in section
