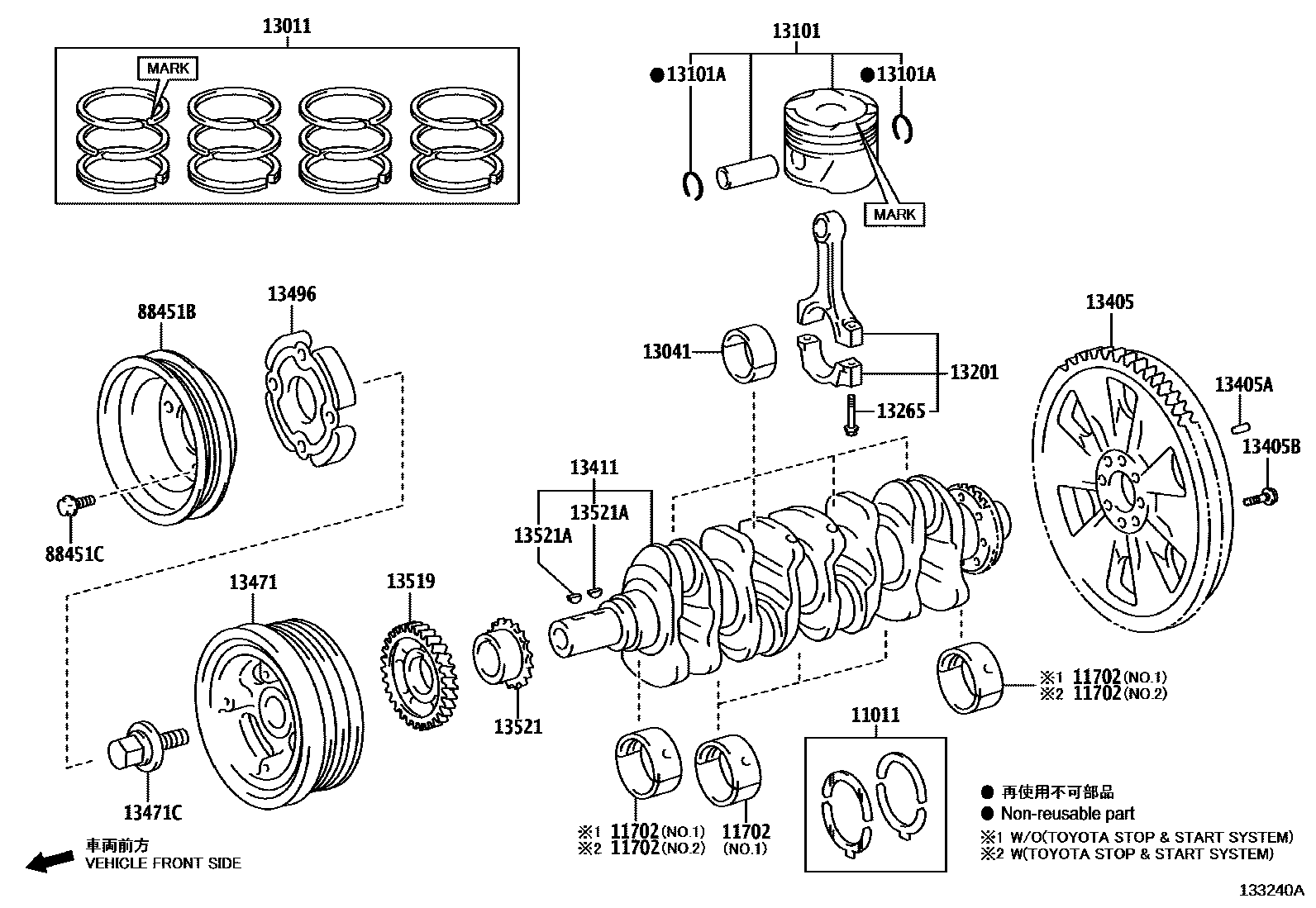

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
11702BEARING SET, CRANKSHAFT
main11701-0E010-02×5supersedes 11701-0E030-06i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP;2GDFTV..GUN125,135..THP..6F; 2GDFTV..GUN125,135..THP..6FC202108-202207
ISRAEL SPEC (EURO 6 REGULATION),MARK 2,NO.1,REFER R/M,*652; MARK 2,NO.1,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 2,NO.1,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 2,NO.1,REFER R/M,*652
main11701-0E010-03×3i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP;2GDFTV..GUN125,135..THP..6F; 2GDFTV..GUN125,135..THP..6FC202108-202207
ISRAEL SPEC (EURO 6 REGULATION),MARK 3,NO.1,REFER R/M,*652; MARK 3,NO.1,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 3,NO.1,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 3,NO.1,REFER R/M,*652
main11701-0E010-04×5i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP;2GDFTV..GUN125,135..THP..6F; 2GDFTV..GUN125,135..THP..6FC202108-202207
ISRAEL SPEC (EURO 6 REGULATION),MARK 4,NO.1,REFER R/M,*652; MARK 4,NO.1,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 4,NO.1,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 4,NO.1,REFER R/M,*652
main11701-0E010-05×5i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP;2GDFTV..GUN125,135..THP..6F; 2GDFTV..GUN125,135..THP..6FC202108-202207
ISRAEL SPEC (EURO 6 REGULATION),MARK 5,NO.1,REFER R/M,*652; MARK 5,NO.1,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 5,NO.1,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 5,NO.1,REFER R/M,*652
main11701-0E010-06×3i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP;2GDFTV..GUN125,135..THP..6F; 2GDFTV..GUN125,135..THP..6FC202108-202207
ISRAEL SPEC (EURO 6 REGULATION),MARK 6,NO.1,REFER R/M,*652; MARK 6,NO.1,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 6,NO.1,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 6,NO.1,REFER R/M,*652
ISRAEL SPEC (EURO 6 REGULATION),MARK 2,NO.2,REFER R/M,*652; MARK 2,NO.2,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 2,NO.2,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 2,NO.2,REFER R/M,*652
ISRAEL SPEC (EURO 6 REGULATION),MARK 3,NO.2,REFER R/M,*652; MARK 3,NO.2,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 3,NO.2,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 3,NO.2,REFER R/M,*652
MARK 4,NO.2,REFER R/M,*652
MARK 5,NO.2,REFER R/M,*652
ISRAEL SPEC (EURO 6 REGULATION),MARK 6,NO.2,REFER R/M,*652; MARK 6,NO.2,REFER R/M,*652; TURKEY SPEC (EURO 6 REGULATION),MARK 6,NO.2,REFER R/M,*652; UKRAINE SPEC (EURO 6 REGULATION),MARK 6,NO.2,REFER R/M,*652
ISRAEL SPEC (EURO 6 REGULATION),MARK 2,NO.1,REFER R/M,*650; TURKEY SPEC (EURO 6 REGULATION),MARK 2,NO.1,REFER R/M,*650; UKRAINE SPEC (EURO 6 REGULATION),MARK 2,NO.1,REFER R/M,*650
MARK 3,NO.1,REFER R/M,*650; RUSSIA&CUSTOM UNION SPEC,MARK 3,NO.1,REFER R/M,*650
ISRAEL SPEC (EURO 6 REGULATION),MARK 4,NO.1,REFER R/M,*650; TURKEY SPEC (EURO 6 REGULATION),MARK 4,NO.1,REFER R/M,*650; UKRAINE SPEC (EURO 6 REGULATION),MARK 4,NO.1,REFER R/M,*650
ISRAEL SPEC (EURO 6 REGULATION),MARK 5,NO.1,REFER R/M,*650; TURKEY SPEC (EURO 6 REGULATION),MARK 5,NO.1,REFER R/M,*650; UKRAINE SPEC (EURO 6 REGULATION),MARK 5,NO.1,REFER R/M,*650
MARK 6,NO.1,REFER R/M,*650; RUSSIA&CUSTOM UNION SPEC,MARK 6,NO.1,REFER R/M,*650
13011RING SET, PISTON
STD,MARK=1H,*652
STD,MARK=1H,*650; STD,RUSSIA&CUSTOM UNION SPEC,MARK=1H,*650
STD,MARK=1H,*650; STD,RUSSIA&CUSTOM UNION SPEC,MARK=1H,*650
13041BEARING, CONNECTING ROD
MARK 2,THA SOURCED, *RRM; RUSSIA&CUSTOM UNION SPEC,MARK 2,THA SOURCED, *RRM
MARK 3,THA SOURCED, *RRM
MARK 4,THA SOURCED, *RRM; RUSSIA&CUSTOM UNION SPEC,MARK 4,THA SOURCED, *RRM
MARK 5,THA SOURCED, *RRM; RUSSIA&CUSTOM UNION SPEC,MARK 5,THA SOURCED, *RRM
MARK 6,THA SOURCED, *RRM; RUSSIA&CUSTOM UNION SPEC,MARK 6,THA SOURCED, *RRM
MARK 2,THA SOURCED, *RRM
MARK 3,THA SOURCED, *RRM
MARK 4,THA SOURCED, *RRM
MARK 5,THA SOURCED, *RRM
MARK 6,THA SOURCED, *RRM
MARK 2,IND SOURCED, *RRM
MARK 3,IND SOURCED, *RRM
MARK 4,IND SOURCED, *RRM
MARK 5,IND SOURCED, *RRM
MARK 6,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK 2,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK 3,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK 4,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK 5,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK 6,IND SOURCED, *RRM
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,MARK=2GD50, *RRM
STD,MARK 2,MARK=2GD50, *RRM
STD,MARK 1,MARK=2GD51, *RRM
STD,MARK 2,MARK=2GD51, *RRM
STD,MARK 1,MARK=1GD70, *RRM
STD,MARK 2,MARK=1GD70, *RRM
STD,MARK 1,MARK=1GD71, *RRM
STD,MARK 2,MARK=1GD71, *RRM
STD,MARK 1,MARK=1GD81, *RRM
STD,MARK 2,MARK=1GD81, *RRM
STD,RUSSIA&CUSTOM UNION SPEC,MARK 1,MARK=2GD60, *RRM
STD,RUSSIA&CUSTOM UNION SPEC,MARK 2,MARK=2GD60, *RRM
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,THA SOURCED, *RRM
MARK B,THA SOURCED, *RRM
MARK C,THA SOURCED, *RRM
MARK A,THA SOURCED, *RRM
MARK B,THA SOURCED, *RRM
MARK C,THA SOURCED, *RRM
MARK A,IND SOURCED, *RRM
MARK B,IND SOURCED, *RRM
MARK C,IND SOURCED, *RRM
MARK A,JAPAN SOURCED, *RRM
MARK B,JAPAN SOURCED, *RRM
MARK C,JAPAN SOURCED, *RRM
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
RUSSIA&CUSTOM UNION SPEC,MARK A,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK B,IND SOURCED, *RRM
RUSSIA&CUSTOM UNION SPEC,MARK C,IND SOURCED, *RRM
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10,(L)
L=15,OD=5,(L)
13405BBOLT, FLYWHEEL SETTING
(L)
13411CRANKSHAFT
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
13471PULLEY, CRANKSHAFT
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(L)
13496COVER, CRANKSHAFT PULLY
THA SOURCED PARTS
13519GEAR, OIL PUMP DRIVE
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
88451CBOLT, FLANGE W/WASHER
20 parts on this diagram · 2 diagrams in section
