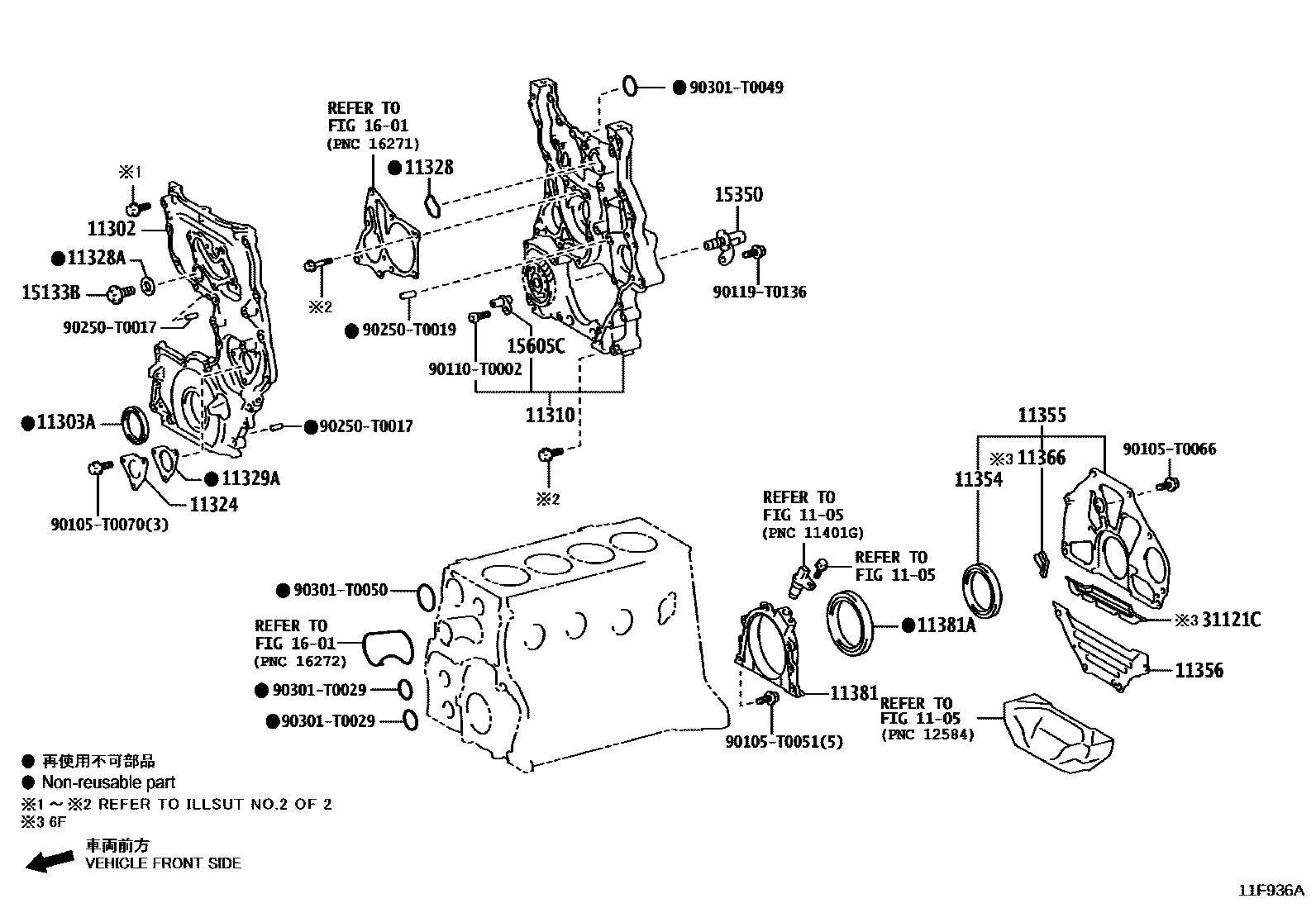

TIMING GEAR COVER & REAR END PLATE
1105CYLINDER BLOCK
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
THA SOURCED PARTS
(J)
ISRAEL SPEC (EURO 6 REGULATION),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION),IND SOURCED PARTS
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
(L)
11310COVER ASSY, TIMING CHAIN
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
11324PLATE, TIMING CHAIN COVER
THA SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION),IND SOURCED PARTS
11328GASKET, TIMING GEAR OR CHAIN COVER
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
11328AGASKET, TIMING BELT COVER, NO.1
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC
11354SEAL, FLYWHEEL HOUSING DUST
(L)
11355PLATE, REAR END
THA SOURCED PARTS
THA SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION),IND SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
11356PLATE, REAR END, NO.2
THA SOURCED PARTS
ZAF SOURCED PARTS
11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11381RETAINER, ENGINE REAR OIL SEAL
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
11381ASEAL, ENGINE REAR OIL
(L)
15133BPLUG, OIL PUMP RELIEF VALVE
15350VALVE ASSY, OIL PRESSURE SWITCHING
15605CVALVE SUB-ASSY, OIL CHECK
1601WATER PUMP
31121CCOVER, CLUTCH HOUSING ADAPTER PLATE
90105T0051
main90105-T0051
90105T0066
main90105-T0066
90105T0070
main90105-T0070
90110T0002
main90110-T0002
90119T0136
main90119-T0136
90250T0017
main90250-T0017
90250T0019
main90250-T0019
90301T0029
main90301-T0029
90301T0049
main90301-T0049
90301T0050
main90301-T0050
29 parts on this diagram · 2 diagrams in section
