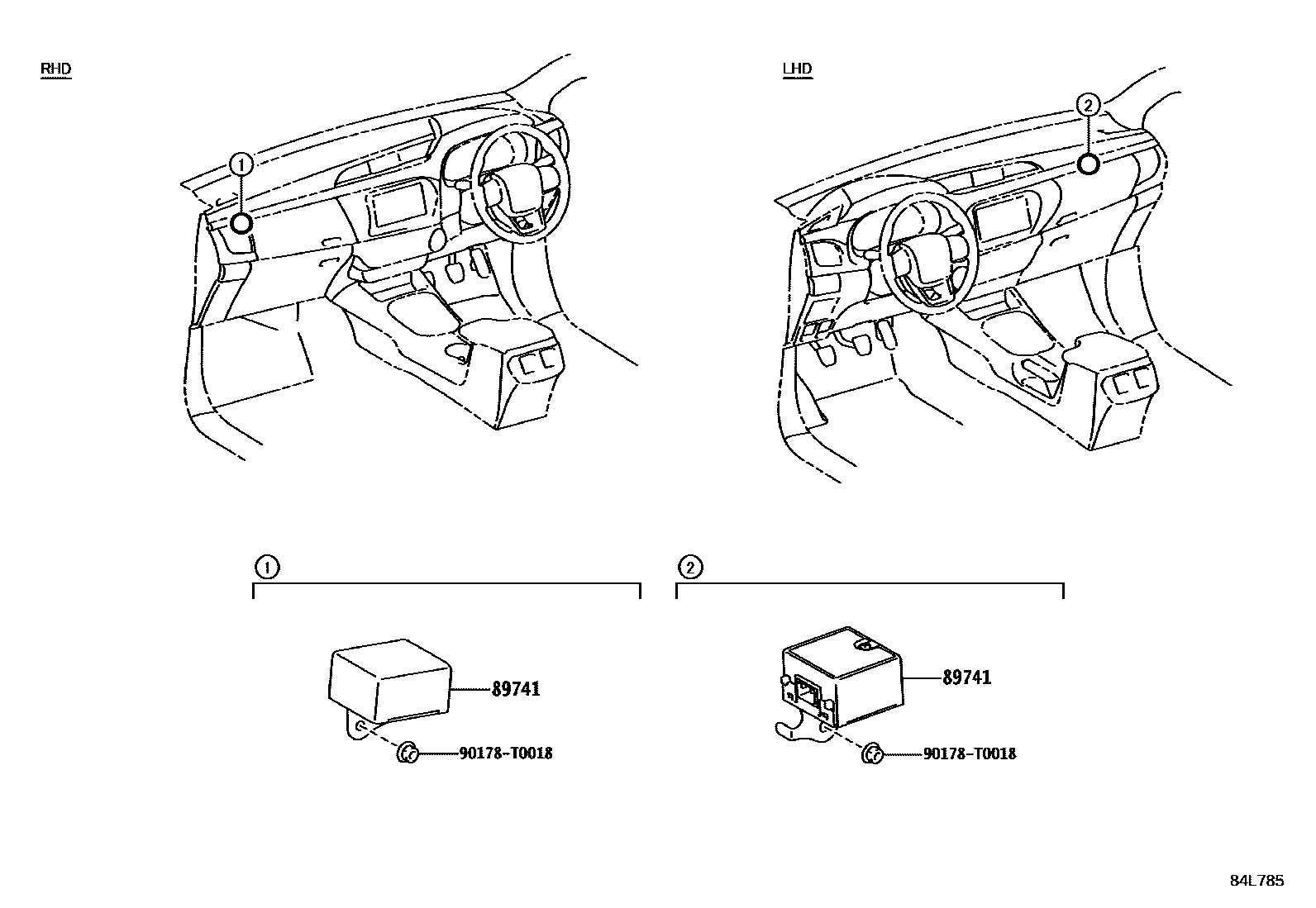

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-0K280iGUN12#..LHD..(H,L); GUN12#..LHD..S;GUN135..SASCB..S;GUN135..SADCB,SAXTR,THDCB202006-202109

WIRELESS DOOR LOCK-WITH

main89741-0K290iGUN12#..RHD..H; GUN125..RHD..S202009-202109

WIRELESS DOOR LOCK-WITH

90178T0018

main90178-T0018

2 parts on this diagram · 3 diagrams in section
