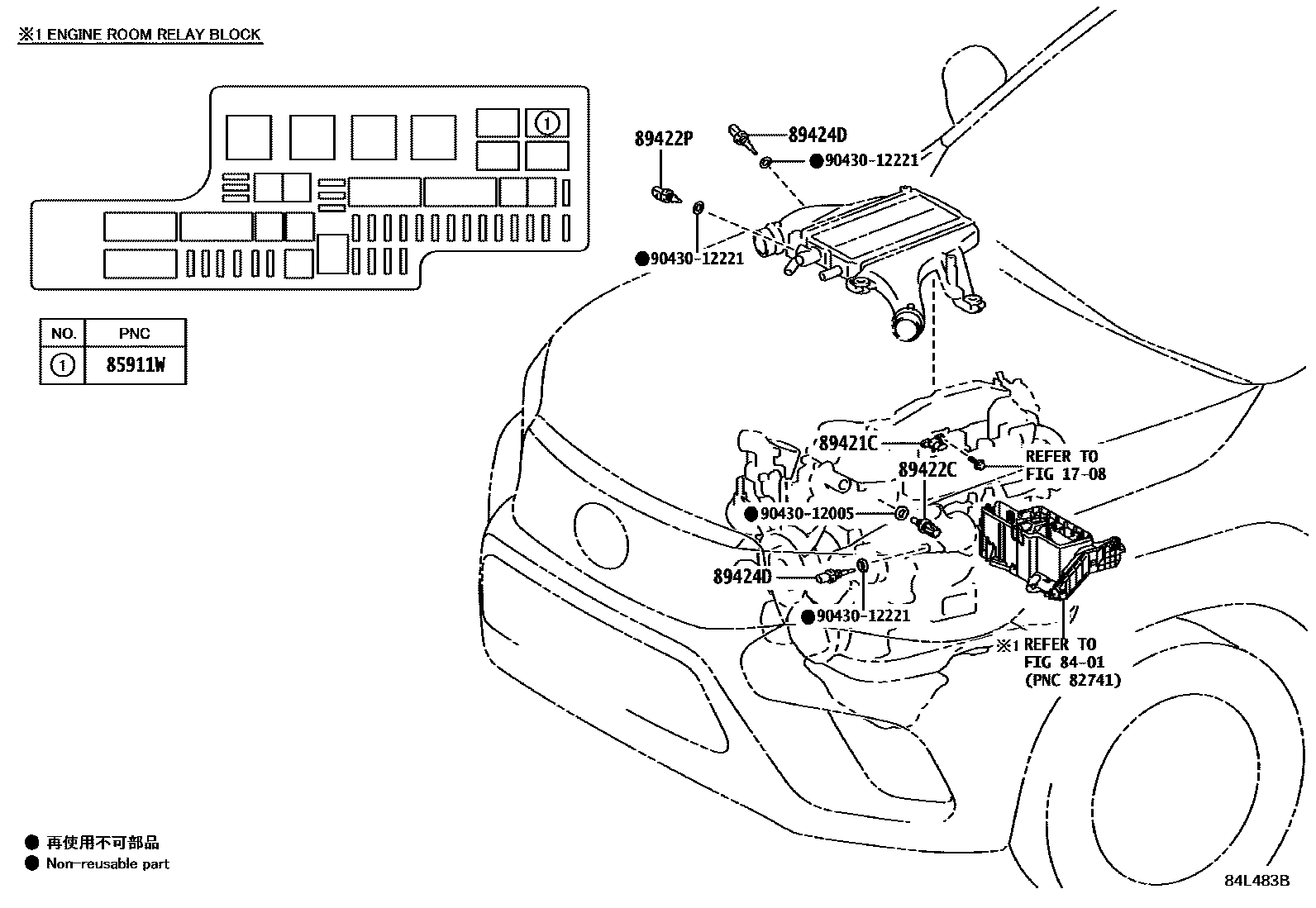

ELECTRONIC CONTROLED DIESEL (ECD)

1708VACUUM PIPING

8401SWITCH & RELAY & COMPUTER

85911WRELAY, ELECTRONIC DRIVER UNIT

main90987-02027i202006-202109

(J)

main90987-T2001i202006-202109

(L)

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030i202006-202109

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030i202006-202109

89422PSENSOR, WATER TEMPERATURE

main89422-33030i202006-202109

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60020supersedes 89424-60010i202006-202109

INTERCOOLER SIDE,INTAKE SIDE

main89424-60010i202006-202108

RUSSIA, CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

9043012005

9043012221

9 parts on this diagram · 3 diagrams in section
