SEAT & SEAT TRACK

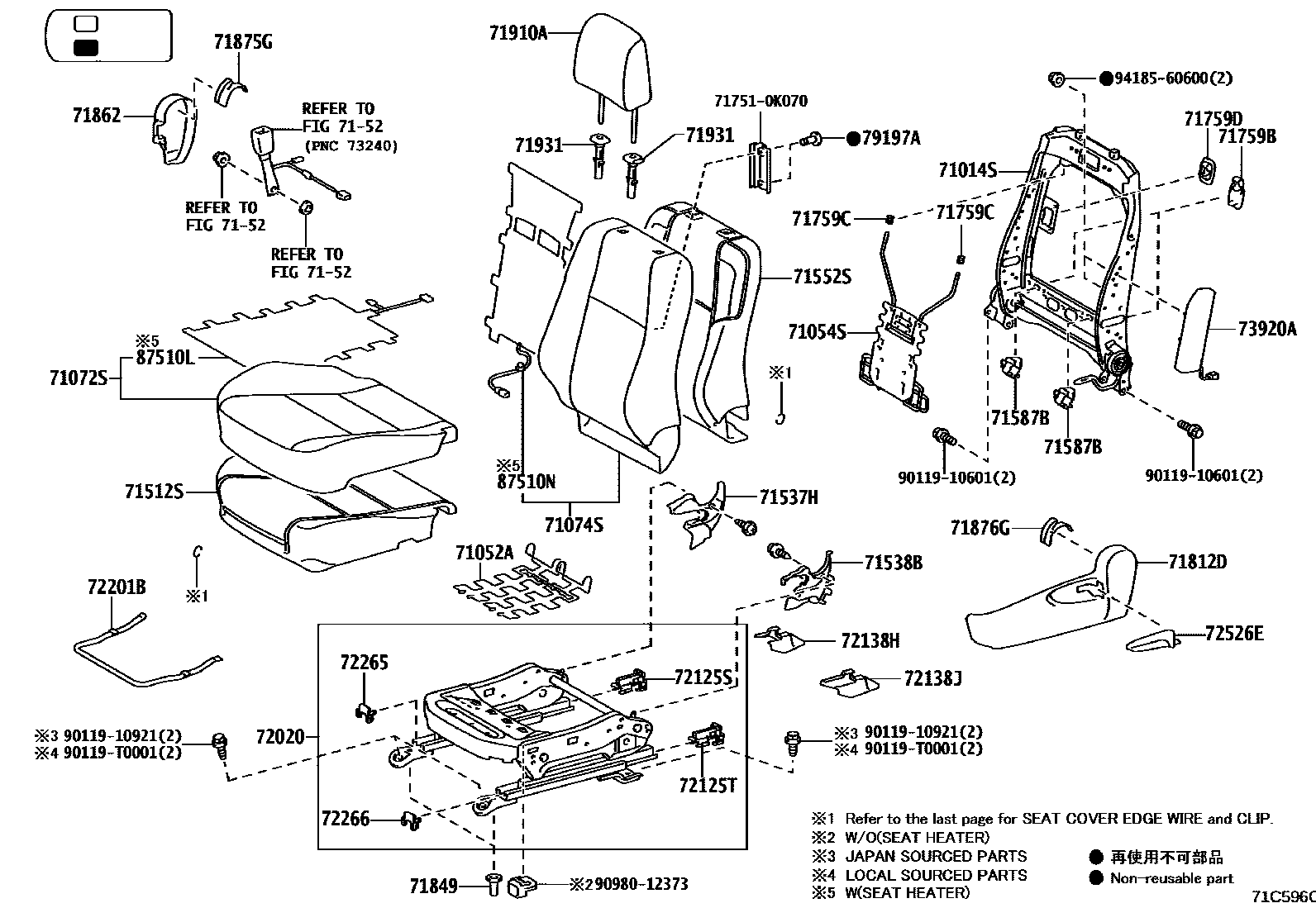

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K460i202009-202109
main71014-0K480i202009-202109
main71014-0K340i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT
main71014-0K500i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER
main71014-0K650supersedes 71014-0K360i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06070i202006-202108
main71051-0D060i202009-202109
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K030i202006-202108
main71053-0K040i202009-202109
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0KL80-C2i202009-202109
BLACK,TRIM2#
main71072-0KU70-C0supersedes 71072-0KL00-C2i202009-202109
BLACK,TRIM2#
main71072-0KL41-C0i202009-202109
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main71072-0KL70-C2i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-0KM20-C2i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KN51-C0i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main71072-0KQ10-C2supersedes 71072-0KV10-C0i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KQ40-C2i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KT30-C0i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
main71072-0KT40-C0i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KU20-C1i202006-202108
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU30-C1supersedes 71072-0KT80-C0i202006-202108
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU60-C0i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KV00-C0i202009-202109
WINDSHIELD DEICER-WITHOUT,BLACK,TRIM2#
main71072-0KV20-C1i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP070-C1i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP080-C1supersedes 71072-0KV10-C0i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP090-C1i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP100-C1i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP250-C0i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP260-C0i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K770-C3supersedes 71074-0K790-C3i202009-202109
BLACK,TRIM2#
main71074-0KA00-C6i202009-202109
BLACK,TRIM2#
main71074-0KA70-C5supersedes 71074-0K830-C3i202009-202109
BLACK,TRIM2#
main71074-0K632-21i202006-202108
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0K720-C3i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0KA41-C6i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KA80-C7i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-0KA91-C6i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KF32-C8supersedes 71074-0KE91-20i202006-202108
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KG31-C7i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
main71074-0KG91-C3i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KX30-C0i202009-202109
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main71074-0KX40-C0i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main71074-YP160-C2i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP170-C2i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP190-C3i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-YP200-C2i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0K170i202009-202109
main71512-0K591i202009-202109
main71512-0K091supersedes 71512-0K081i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0K181i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0K571i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02200-C0i202009-202109
BLACK,TRIM2#
main71537-02300-C0i202006-202108
BLACK,TRIM2#
main71537-0K170-C0i202009-202109
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main71537-02170-C0i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-02110-C0i202009-202109
BLACK,TRIM2#
main71538-02230-C0i202006-202108
BLACK,TRIM2#
main71538-0K130-C0i202009-202109
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
main71538-02120-C0i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0K200i202006-202108
main71552-0K400i202009-202109
main71552-0K450i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER
main71552-0K460i202009-202109
main71552-0K160i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K030×4i202006-202108
main71587-0K040×4i202009-202109
WINDSHIELD DEICER-WITHOUT
71759BHOOK, FRONT SEATBACK
main71759-0K140×4i202009-202109
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K060×4i202006-202108
main71759-0K080×4i202009-202109
71759DHOOK, FRONT SEATBACK, NO.2
main71759-0K070-C0×2i202006-202109
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0K150-C0i202009-202109
BLACK,TRIM2#
main71812-0K330-C0i202009-202109
BLACK,TRIM2#
main71812-0K480-C0i202009-202109
BLACK,TRIM2#
main71812-0K100-C0i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
main71812-0K120-C0supersedes 71812-0K110-C0i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K490-C0i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K570-C0i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-02040×2i202009-202109
main71848-47010×2i202006-202108
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0K140-C0i202009-202109
BLACK,TRIM2#
main71862-0K250-C0i202006-202108
BLACK,TRIM2#
main71862-0K270-C0i202009-202109
BLACK,TRIM2#
main71862-0K320-C0i202009-202109
BLACK,TRIM2#
main71862-0K240-C0i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
main71862-0K390-C0i202009-202109
WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-0K120-C0i202006-202108
BLACK,TRIM2#
main71875-0K160-C0i202009-202109
BLACK,TRIM2#
main71875-0K130-C0i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-0K120-C0i202006-202108
BLACK,TRIM2#
main71876-0K160-C0i202009-202109
BLACK,TRIM2#
main71876-0K130-C0i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-0KC60-C2×2i202009-202109
BLACK,TRIM2#
main71910-0KC80-C0×2i202009-202109
BLACK,TRIM2#
main71910-0KB60-C2×2i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT,BLACK,TRIM2#
main71910-0KC00-C2×2supersedes 71910-0KB80-C0i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71910-0KD00×2i202107-202109
SEAT COVER MATERIAL-NATURAL LEATHER
main71910-0KD00-C2×2i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0K050-C0×2i202006-202108
W(LOCK),MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71930-47050-C5×2i202009-202109
W(LOCK),BLACK,TRIM2#
main71931-0K040-C0×2i202006-202108
W/O(LOCK),MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71931-47030-C4×2i202009-202109
W/O(LOCK),WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71930-47050×2i202107-202109
W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER
main71931-47030×2i202107-202109
W/O(LOCK),WINDSHIELD DEICER-WITHOUT&SEAT COVER MATERIAL-NATURAL LEATHER
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0K140i202009-202109
main72020-0K150i202009-202109
SEAT COVER MATERIAL-FABRIC(HI)
main72020-0K060i202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITHOUT
main72020-0K080supersedes 72020-0K070i202006-202108
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main72020-0K160i202009-202109
SEAT COVER MATERIAL-NATURAL LEATHER
72125SCOVER, FRONT SEAT TRACK, UPPER REAR RH
main72125-0D030i202009-202109
SEAT COVER MATERIAL-FABRIC(HI)
main72265-0K010i202006-202109
SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT
72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH
main72125-0D030×2i202006-202109
SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT
main72265-0K010i202006-202109
SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-KK010-C0i202006-202109
BLACK,TRIM2#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0i202006-202109
BLACK,TRIM2#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0D160i202006-202108
main72211-0K120i202009-202109
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-0D080×2i202006-202109
SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-0D080×2i202006-202109
SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06130-C0i202006-202109
BLACK,TRIM2#
main72526-0D260-C0i202009-202109
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0K050i202006-202108
sub73920-0K190
main73920-0K080i202009-202109
sub73920-0K170
79197ARIVET
main79197-0K010×4i202006-202109
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-0K220i202006-202109
main87510-0K230i202006-202108
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-0K050i202009-202109
main87530-0K060i202009-202109
WINDSHIELD DEICER-WITH
main87530-0K070i202006-202109
717510K070HANGER, SEAT COVER
main71751-0K070
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600

40 parts on this diagram · 12 diagrams in section
