LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
WIRELESS DOOR LOCK-WITH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
WIRELESS DOOR LOCK-WITH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
WIRELESS DOOR LOCK-WITH
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69503AKEY, BLANK
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),INSIDE CUT TYPE
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),INSIDE CUT TYPE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745CBATTERY, TRANSMITTER
CR2032
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

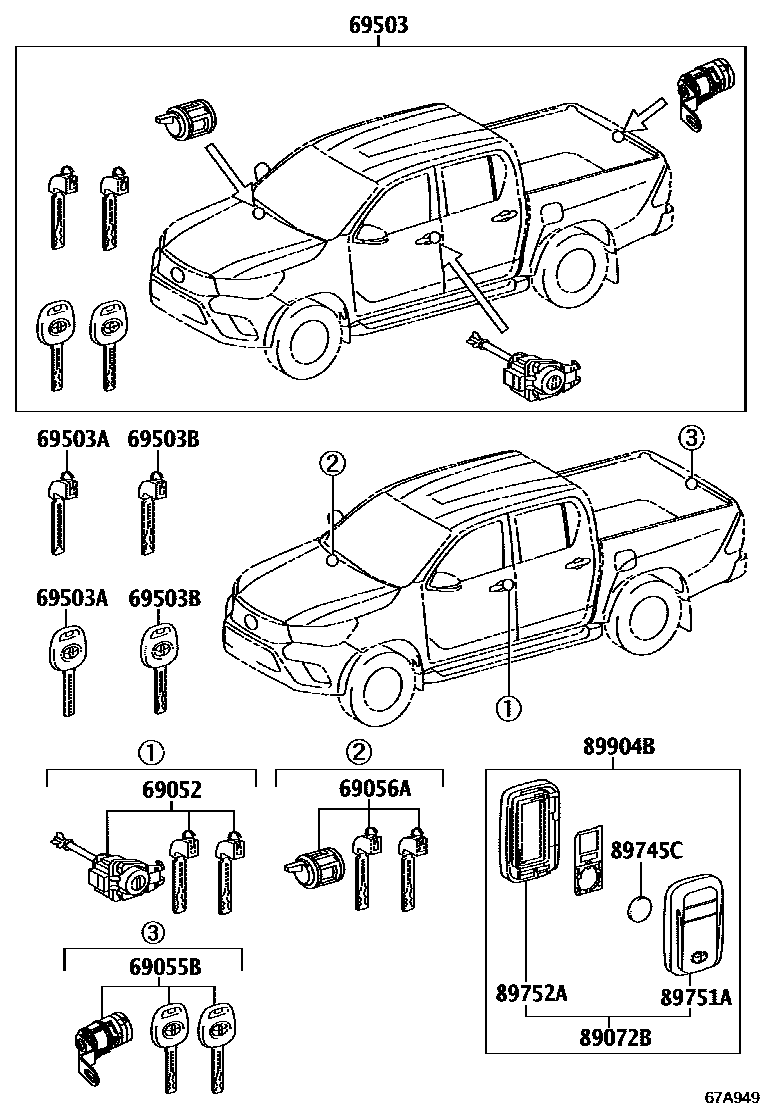

11 parts on this diagram · 5 diagrams in section
