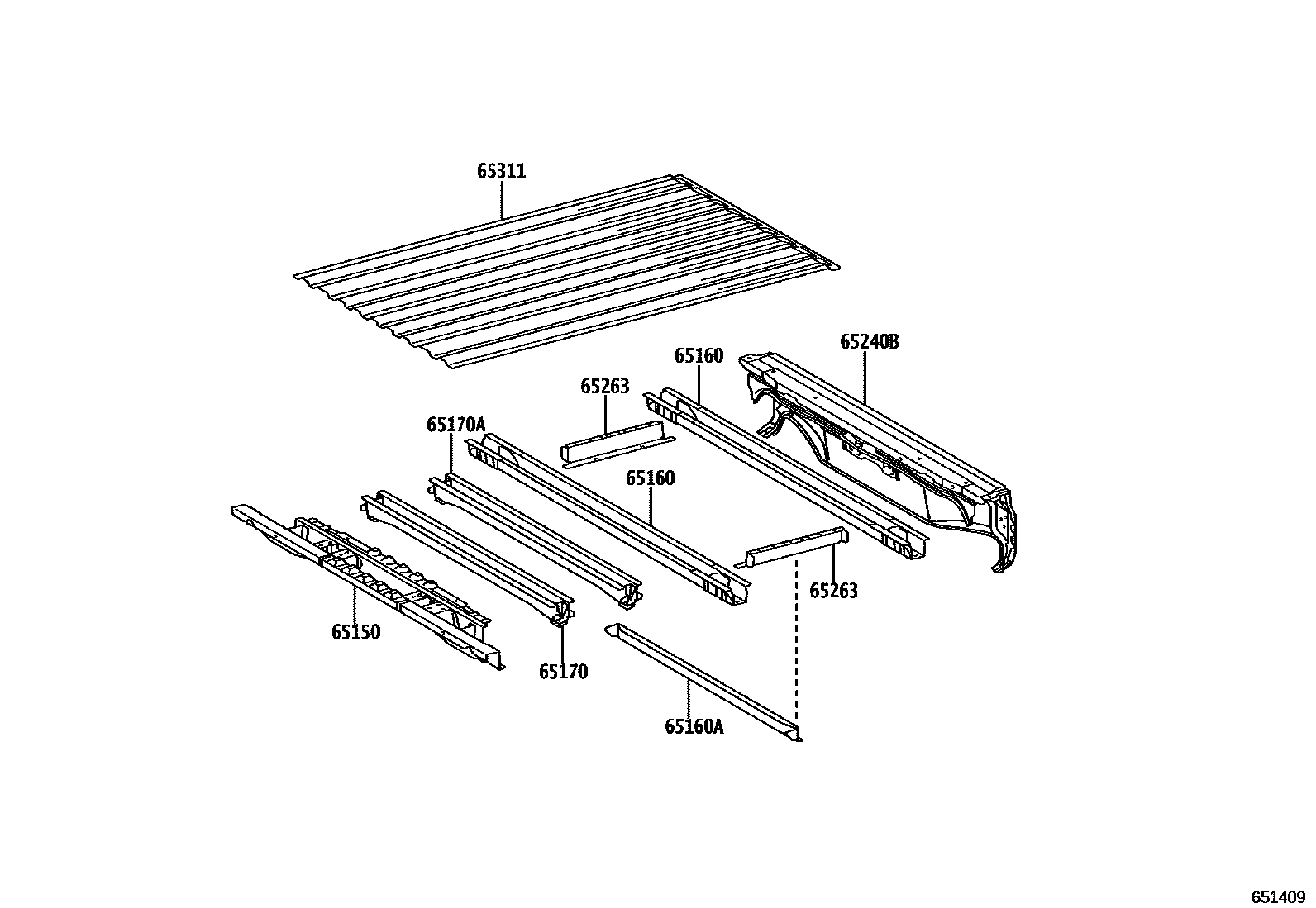

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1

65150SILL ASSY, CROSS, NO.1

main65150-KK010iGUN12#,135..(SADCB,THDCB)..CBU202006-202109

main65151-0K011iGUN12#,135..(SASCB,SAXTR)..CBU202009-202109

65160SILL ASSY, CROSS, NO.2

main65160-KK010×2iGUN12#,135..(SADCB,SAXTR,THDCB)..CBU202006-202109

65160ASILL ASSY, CROSS, NO.2

main65261-0K011iGUN12#,135..CBU202006-202109

65170SILL ASSY, CROSS, NO.2

main65170-KK010iGUN12#,135..CBU202006-202109

65170ASILL ASSY, CROSS, NO.3

main65170-KK010iGUN12#,135..CBU202006-202109

65240BSILL ASSY, CROSS, NO.9

main65240-KK010iGUN12#,135..THDCB202006-202108

EXCEPT PLANT TSAM

main65240-KK090iGUN12#,135..CBU202006-202109

PLANT TSAM

65263REINFORCEMENT, FLOOR SIDE FRAME

main65263-KK010×2iGUN12#,135..CBU202006-202109

65311PANEL, FLOOR, CENTER

main65311-KK010iGUN12#,135..(SADCB,THDCB)..CBU202006-202109

main65311-KK020iGUN125,135..SASCB..CBU202009-202109

main65311-KK040iGUN12#,135..SAXTR..CBU202009-202109

8 parts on this diagram · 3 diagrams in section
