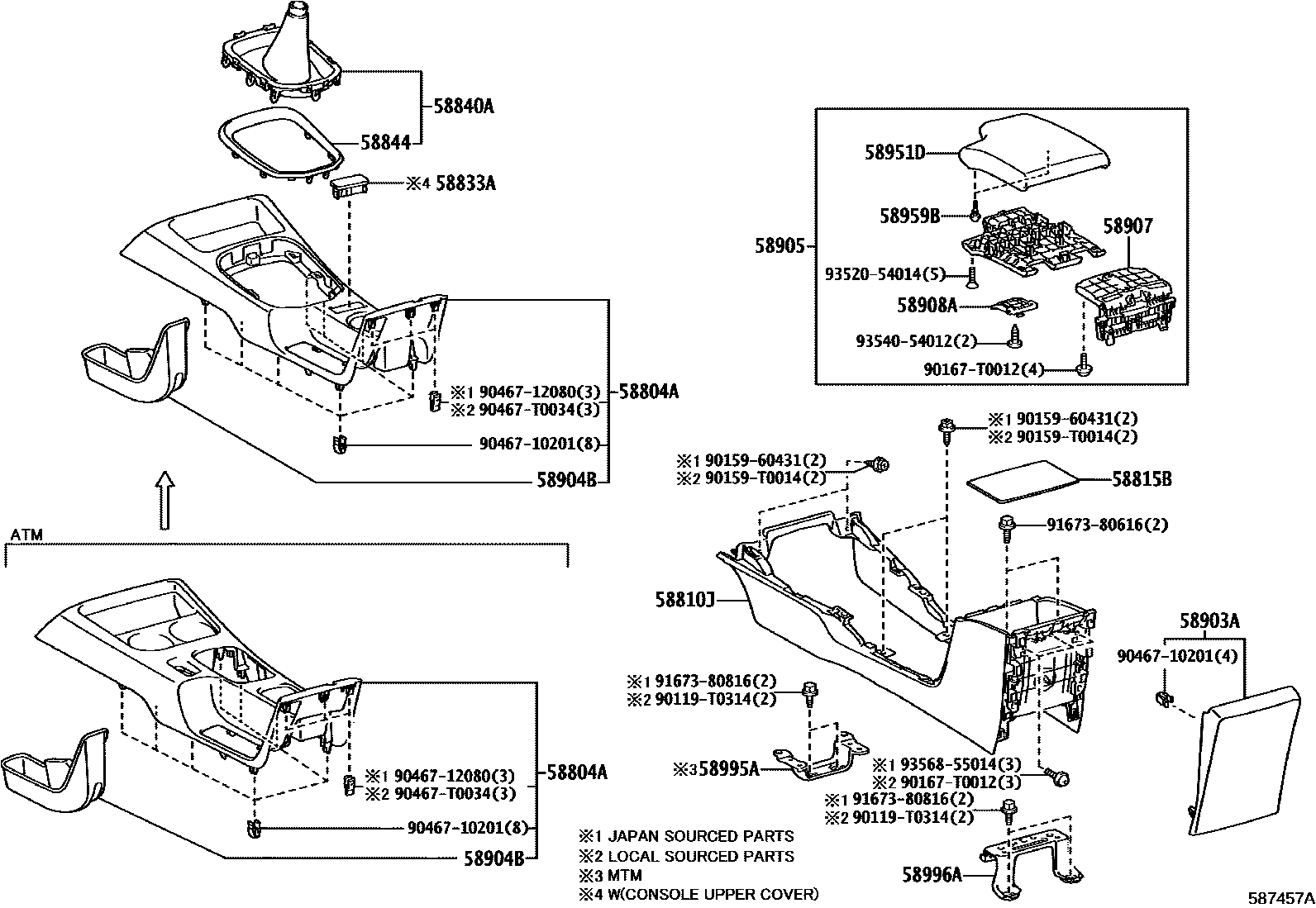

CONSOLE BOX & BRACKET

0001 1 0002 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK080-C1iGUN12#..RHD..6F202009-202109

BLACK/GRAY,TRIM2#

main58804-KK090-C1iGUN12#..RHD..6FC202009-202109

BLACK/GRAY,TRIM2#

main58804-KK130-C1iGUN12#,135..LHD..6F202006-202109

BLACK/GRAY,TRIM2#

main58804-KK140-C1iGUN12#,135..LHD..6FC202006-202109

BLACK/GRAY,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-KK110-C0iGUN12#,135..(SASCB,SAXTR)..6F202009-202109

BLACK,TRIM2#

main58810-KK130-C0iGUN125,135..SADCB..(L,S)202009-202109

BLACK,TRIM2#

main58810-KK140-C0iGUN125,135..THDCB..6F;GUN12#,135..SADCB..6F..H202006-202109

BLACK,TRIM2#

main58810-KK200-C0iGUN12#..RHD..6FC202009-202109

BLACK,TRIM2#

main58810-KK210-C0iGUN12#..SAXTR..6FC202009-202109

BLACK,TRIM2#

main58810-KK240-C0iGUN12#,135..LHD..(SADCB,THDCB)..6FC202006-202109

BLACK,TRIM2#

58815BCARPET, CONSOLE BOX

main58815-KK010iGUN12#,135202006-202109

58833ACOVER, CONSOLE, UPPER

main58833-KK080-C0iGUN125,135..L202009-202109

BLACK,TRIM2#

58840ACOVER ASSY, SHIFTING HOLE

main58840-KK010-C0iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

BLACK,TRIM2#

main58840-KK020-C0iGUN12#,135..6F..H;GUN125,135..THDCB..6F202006-202109

BLACK,TRIM2#

main58840-KK060-C0iGUN125,135..THDCB..6F202006-202108

DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#

main58840-YP010iGUN12#..6F..H202009-202109

MLM ADVENTURE PACKAGE

58844BEZEL, CONSOLE BOX

main58844-KK010-C0iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

BLACK,TRIM2#

main58844-KK030iGUN12#,135..6F..H;GUN125,135..THDCB..6F202006-202109

SILVER PAINTED

main58844-YP010iGUN12#..6F..H202009-202109

MLM ADVENTURE PACKAGE

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK020-C0iGUN12#,135202006-202109

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK060-C0iGUN12#..RHD202009-202109

BLACK,TRIM2#

main58904-KK070-C0iGUN12#,135..LHD202006-202109

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7iGUN125..RHD..S202009-202109

BLACK/BLACK,TRIM2#

main58905-KK020-C4iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

BLACK/BLACK,TRIM2#

main58905-KK030-C5iGUN12#..RHD..H202009-202109

BLACK/BLACK,TRIM2#

sub58905-KK130

main58905-KK040-C5iGUN135..H202009-202109

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#

sub58905-KK140

main58905-KK080-C8iGUN135..H;GUN12#,135..THDCB..S202006-202109

BLACK/BLACK,TRIM2#

main58905-KK120-C0iGUN12#..THDCB..H202006-202108

BLACK/BLACK,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN12#,135202006-202109

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGUN12#,135202006-202109

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2iGUN125..RHD..S202009-202109

BLACK,TRIM2#

main58951-KK030-C1iGUN12#..RHD..H202009-202109

BLACK/GRAY,TRIM2#

sub58951-KK140

main58951-KK070-C1iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

BLACK,TRIM2#

main58951-KK080-C3iGUN135..H;GUN12#,135..THDCB..S202006-202109

BLACK/GRAY,TRIM2#

main58951-KK090-C1iGUN135..H202009-202109

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#

sub58951-KK150

main58951-KK130-C0iGUN12#..THDCB..H202006-202108

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-T0008×2iGUN12#,135202006-202109

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-KK020iGUN12#,135..6F202006-202109

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGUN12#,135202006-202109

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0012

main90167-T0012

9046710201

main90467-10201

9046712080

main90467-12080

90467T0034

main90467-T0034

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

27 parts on this diagram · 2 diagrams in section
