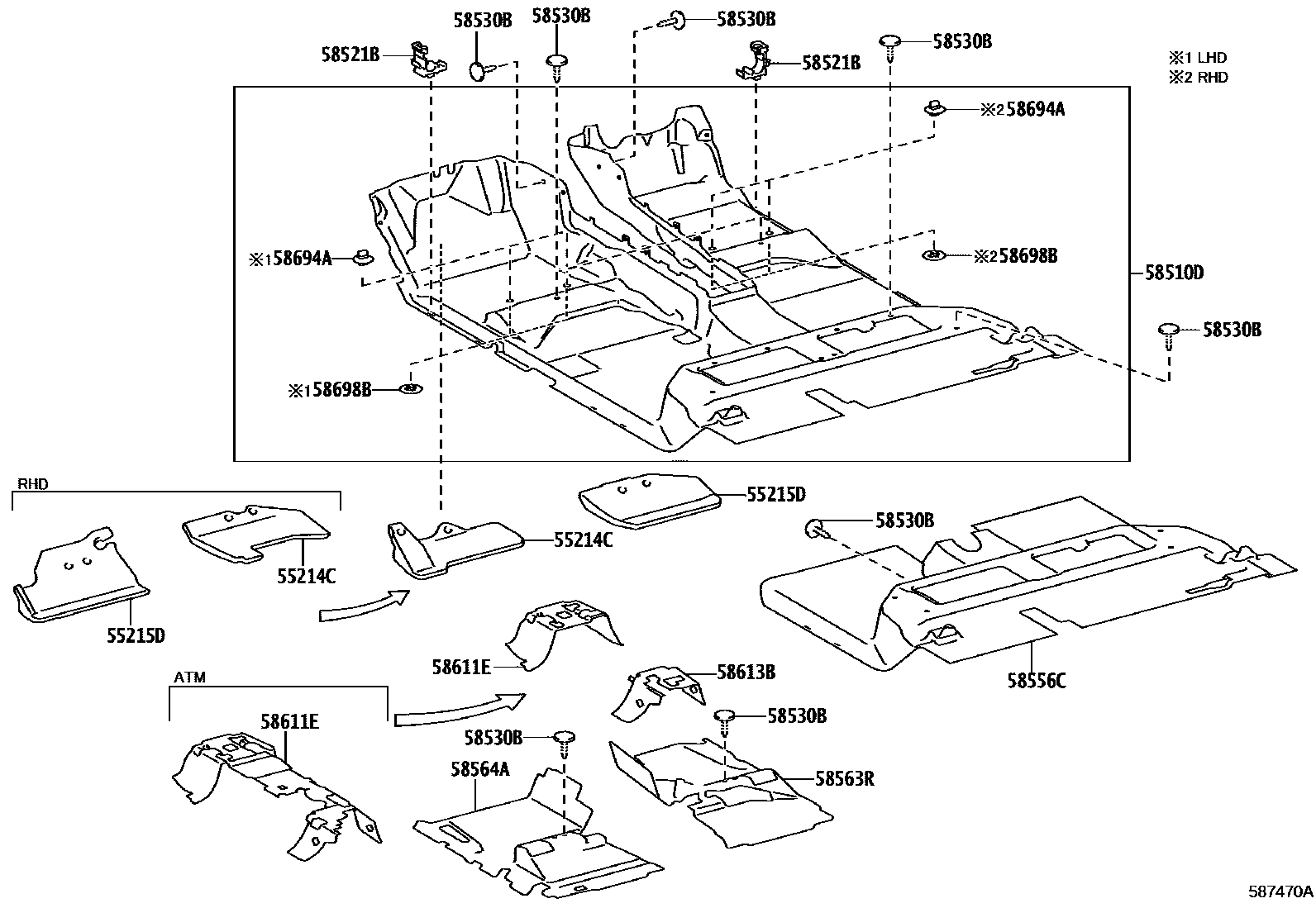

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main58500-0K340-C0supersedes 58500-0KJ20-C0iGUN12#..SAXTR..6F..H; GUN125,135..LHD..SAXTR..(L,S)202009-202109
BLACK,TRIM2#; REAR SEAT-WITH(BACK PANEL CUSHION ONLY),BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION ONLY),BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#
main58500-0KJ20-C0supersedes 58500-0K340-C0iGUN12#..SAXTR..6F..H; GUN125,135..LHD..SAXTR..(L,S)202009-202109
BLACK,TRIM2#; REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-T0031-C0×7iGUN12#,135..LHD..SAXTR..6F; GUN12#..RHD..6FC; GUN12#..RHD..SADCB..6F; GUN12#..SAXTR..6FC; GUN125,135..LHD..SASCB; GUN125..RHD..SASCB; GUN125..RHD..SAXTR202009-202109
BLACK,TRIM2#
58556CSILENCER, REAR FLOOR
58563RSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58611ESHEET, FRONT FLOOR SILENCER
58613BSHEET, FRONT FLOOR SILENCER, CENTER
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
12 parts on this diagram · 3 diagrams in section
