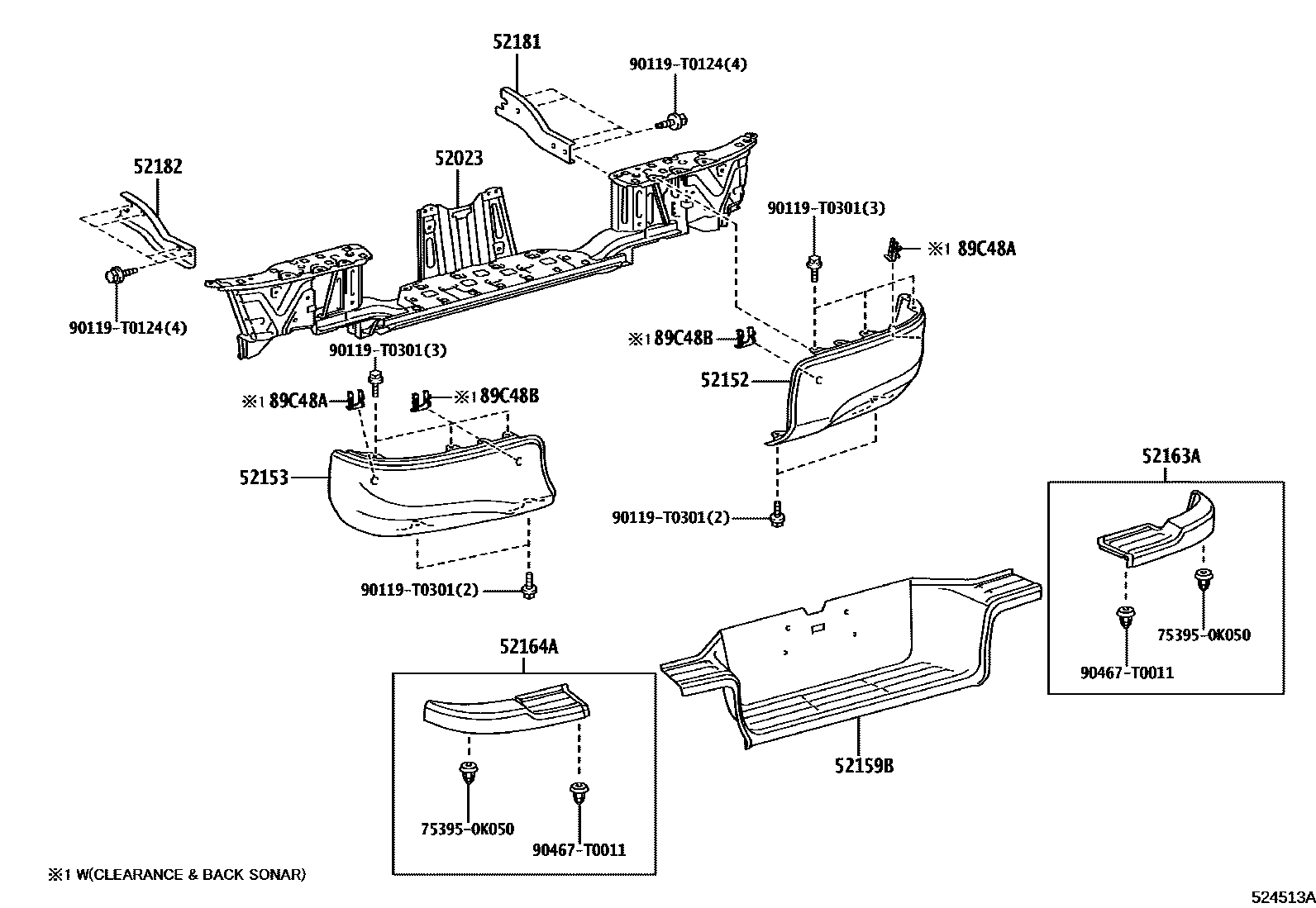

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BAR, REAR BUMPER, RH
main52151-0K090iGUN12#..(SADCB,SAXTR)..H; GUN12#..RHD..H; GUN125,135..(SADCB,SASCB,SAXTR)..(L,S)..CBU202009-202109
NO PAINT REQ.; NO PAINT REQ.,KM/H MTR COUNTRY FOR RHD SPEC&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED
PLATED,KM/H MTR COUNTRY FOR RHD SPEC&CLEARANCE & BACK SONAR-WITHOUT
REAR BUMPER-WITH(*RUPD(PLATED)); RUSSIA, CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED)); UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,CLEARANCE & BACK SONAR-WITHOUT
main52151-0K210iGUN12#,135..THDCB..S; GUN12#..THDCB..H; GUN125..THDCB..H; GUN126..THDCB..H202006-202108
CLEARANCE & BACK SONAR-WITH; ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED)); REAR BUMPER-WITH(*RUPD(PAINTED)); TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED)); UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED))
main52151-0K240iGUN125..THDCB..6F; GUN125..THDCB..H; GUN125..THDCB..S; GUN126..S; GUN126..THDCB..H202006-202108
REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH; RUSSIA, CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH; UKRAINE SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACKSONAR-WITH
main52151-0K270iGUN12#..(SADCB,SAXTR)..H; GUN125..RHD..S..CBU;GUN125,135..LHD..(SADCB,SAXTR)..S..CBU202009-202109
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
52153BAR, REAR BUMPER, LH
main52152-0K090iGUN12#..(SADCB,SAXTR)..H; GUN12#..RHD..H; GUN125,135..(SADCB,SASCB,SAXTR)..(L,S)..CBU202009-202109
NO PAINT REQ.; NO PAINT REQ.,KM/H MTR COUNTRY FOR RHD SPEC&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED
REAR BUMPER-WITH(*RUPD(PLATED)); TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-WITH(*RUPD(PLATED)); RUSSIA, CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED)); UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED)); REAR BUMPER-WITH(*RUPD(PLATED))
main52152-0K210supersedes 52152-0K240iGUN12#,135..THDCB..S; GUN12#..THDCB..H; GUN125..THDCB..H; GUN126..THDCB..H202006-202108
CLEARANCE & BACK SONAR-WITH; ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED)); REAR BUMPER-WITH(*RUPD(PAINTED)); TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED)); UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED))
main52152-0K240iGUN125..THDCB..6F; GUN125..THDCB..H; GUN125..THDCB..S; GUN126..S; GUN126..THDCB..H202006-202108
REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH; RUSSIA, CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH; UKRAINE SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACKSONAR-WITH
main52152-0K270iGUN12#..(SADCB,SAXTR)..H; GUN125..RHD..S..CBU;GUN125,135..LHD..(SADCB,SAXTR)..S..CBU202009-202109
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
52159BPLATE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH
753950K050CLIP, BACK DOOR MOULDING, NO.1
main75395-0K050
90119T0124
main90119-T0124
90119T0301
main90119-T0301
90467T0011
main90467-T0011
14 parts on this diagram · 1 diagram in section
