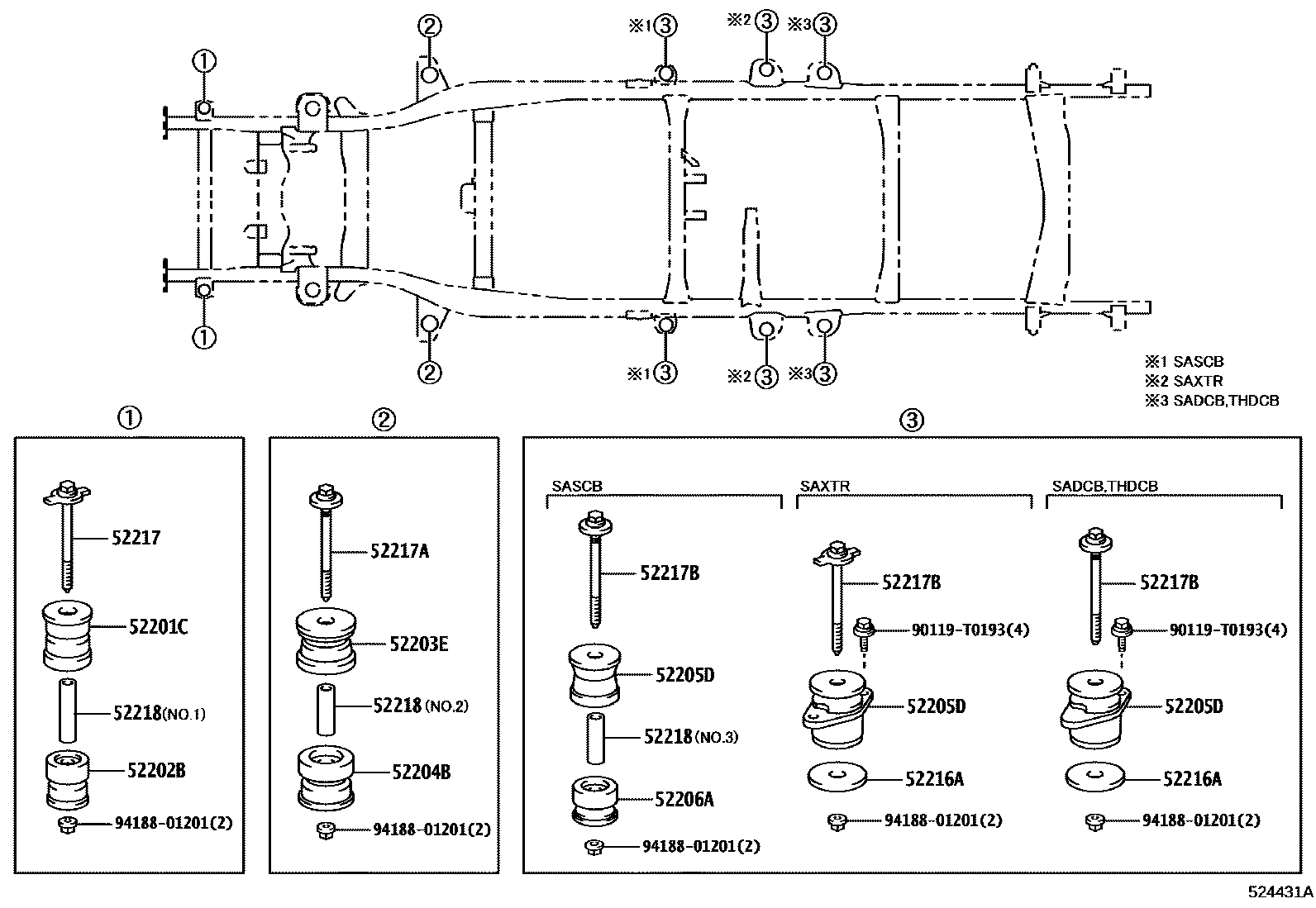

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K100×2iGUN12#,135202006-202109

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K100×2iGUN12#,135202006-202109

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120×2iGUN125,135..SASCB202009-202109

main52203-0K150×2iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120×2iGUN12#,135202006-202109

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K110×2iGUN125,135..SASCB202009-202109

main52205-0K150×2iGUN12#,135..SAXTR202009-202109

main52205-0K161iGUN12#,135..SADCB,THDCB202006-202109

RH

main52206-0K101iGUN12#,135..SADCB,THDCB202006-202109

LH

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K080×2iGUN125,135..SASCB202009-202109

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010×2iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

52217BOLT, BODY MOUNTING

main52217-0K010×2iGUN12#,135202006-202109

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGUN12#,135202006-202109

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGUN12#,135..SADCB,SASCB,THDCB202006-202109

main52217-0K031×2iGUN12#,135..SAXTR202009-202109

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGUN12#,135202006-202109

NO.1

main52219-0K010×2iGUN12#,135202006-202109

NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
