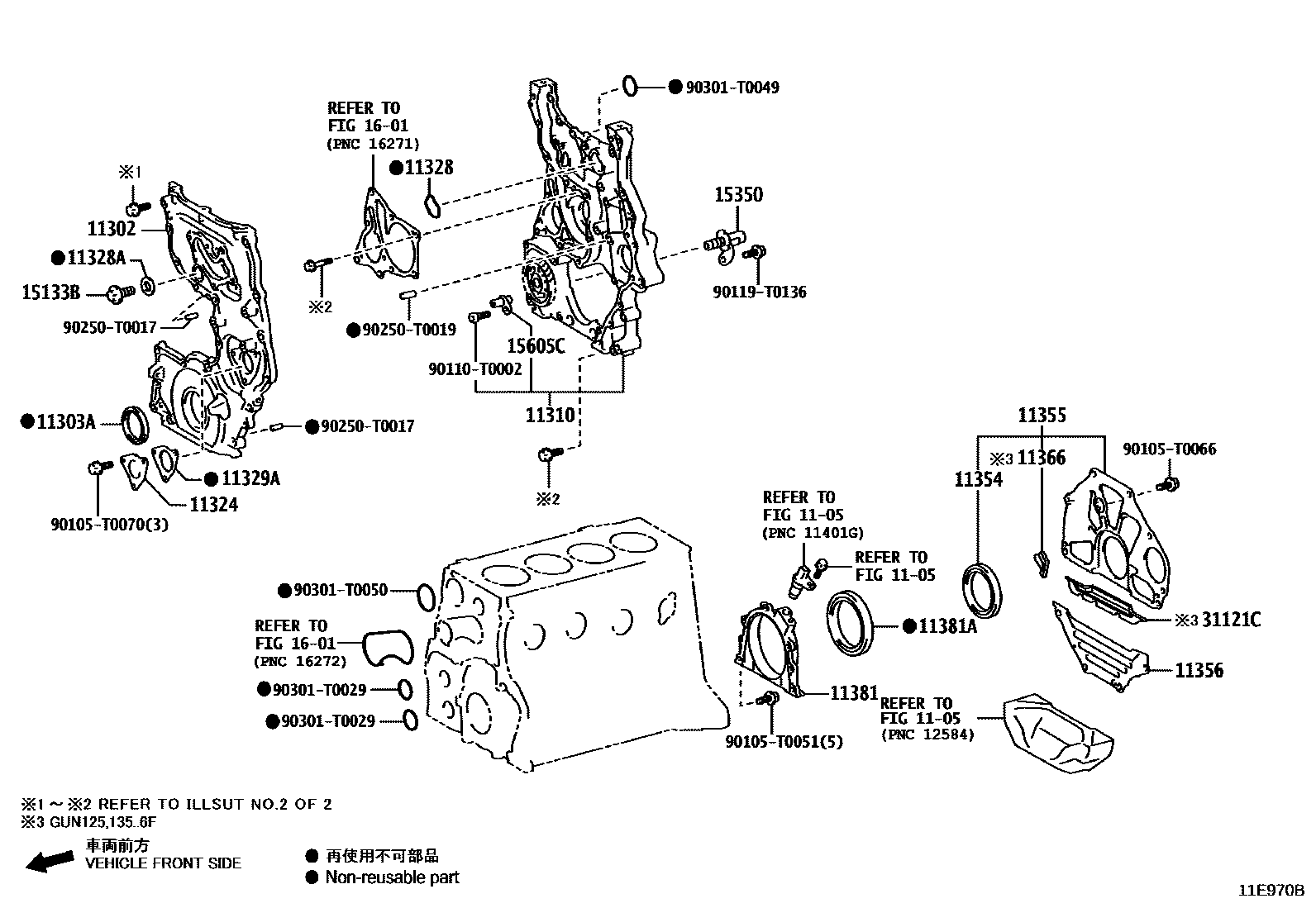

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main11321-0E020i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

IND SOURCED PARTS; RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-T0054i1GDFTV,2GDFTV..GUN12#,135202006-202109

(L)

11310COVER ASSY, TIMING CHAIN

main11310-0E040i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC,TYPEP A,THA SOURCED; TYPEP A,THA SOURCED

main11310-0E050i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC,TYPEP A,IND SOURCED; TYPEP A,IND SOURCED

11324PLATE, TIMING CHAIN COVER

main11324-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main11324-0E020i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

IND SOURCED PARTS; RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main11328-0E020i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

IND SOURCED PARTS; RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV,2GDFTV..GUN12#,135202006-202109

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main11329-0E020i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0L020i1GDFTV,2GDFTV..GUN12#,135202006-202109

(L)

11355PLATE, REAR END

main11355-0E010i1GDFTV,2GDFTV..GUN12#,135..6FC202006-202109

THA SOURCED PARTS

main11355-0E020i1GDFTV..GUN126..THDCB202008-202108

IND SOURCED PARTS

main11355-0E040i1GDFTV,2GDFTV..GUN12#,135..6F202006-202109

THA SOURCED PARTS

main11355-0E050i2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

11356PLATE, REAR END, NO.2

main11356-0L012i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main11356-0L022i1GDFTV,2GDFTV..GUN12#,135..SADCB,SASCB,SAXTR202009-202109

ZAF SOURCED PARTS

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-0E010i1GDFTV,2GDFTV..GUN12#,135..6F202006-202109

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main11381-0E040i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125..THDCB..6F202008-202108

IND SOURCED PARTS; RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

11381ASEAL, ENGINE REAR OIL

main90311-T0046i1GDFTV,2GDFTV..GUN12#,135202006-202109

(L)

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV,2GDFTV..GUN12#,135202006-202109

15350VALVE ASSY, OIL PRESSURE SWITCHING

main15350-11010i1GDFTV,2GDFTV..GUN12#,135202006-202109

15605CVALVE SUB-ASSY, OIL CHECK

main15605-30040i1GDFTV,2GDFTV..GUN12#,135202006-202109

1601WATER PUMP

→ Go to FIG 16-01

31121CCOVER, CLUTCH HOUSING ADAPTER PLATE

main31121-26030iGUN12#,135..6F202006-202109

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0070

main90105-T0070

90110T0002

main90110-T0002

90119T0136

main90119-T0136

90250T0017

main90250-T0017

90250T0019

main90250-T0019

90301T0029

main90301-T0029

90301T0049

main90301-T0049

90301T0050

main90301-T0050

29 parts on this diagram · 2 diagrams in section
