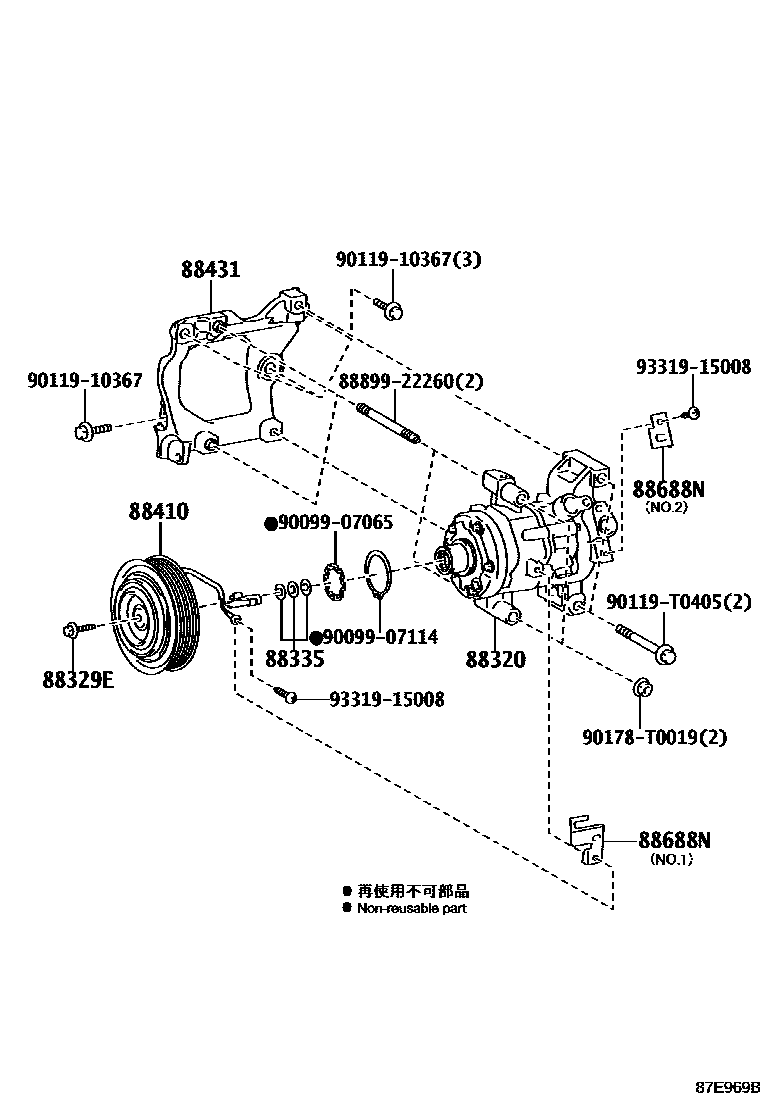

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN12#,135..THDCB..(M,S); GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE201506-202005

FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN12#,135..THDCB..(M,S); GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE201506-202005

FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL

88335GASKET KIT, OVERHAUL

main88335-14020iGUN12#,135..THDCB..(M,S); GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE201506-202005

FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL

88410CLUTCH ASSY, MAGNET

main88410-0K600iGUN12#,135..THDCB..(M,S); GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE201506-202005

FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K140iGUN12#,135..THDCB..(M,S); GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE201506-202005

FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL

main88431-0K160iGUN12#,135..(SADCB,SAXTR)..M..HDCR201710-202009

FRONT AIR CONDITIONER-AUTO

88688NBRACKET, COOLER

main88849-0K010iGUN12#,135..THDCB..(M,S); GUN12#..THDCB..H;GUN125,135..THDCB..M..DCRE201506-202005

FRONT AIR CONDITIONER-AUTO,NO.1; FRONT AIR CONDITIONER-MANUAL,NO.1

main88849-0K020iGUN12#,135..THDCB..M..HDCR201708-202005

FRONT AIR CONDITIONER-AUTO,NO.2

8889922260COVER, EVAPORATOR

main88899-22260

9009907065

main90099-07065

9009907114

main90099-07114

9011910367

main90119-10367

90119T0405

main90119-T0405

90178T0019

main90178-T0019

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
