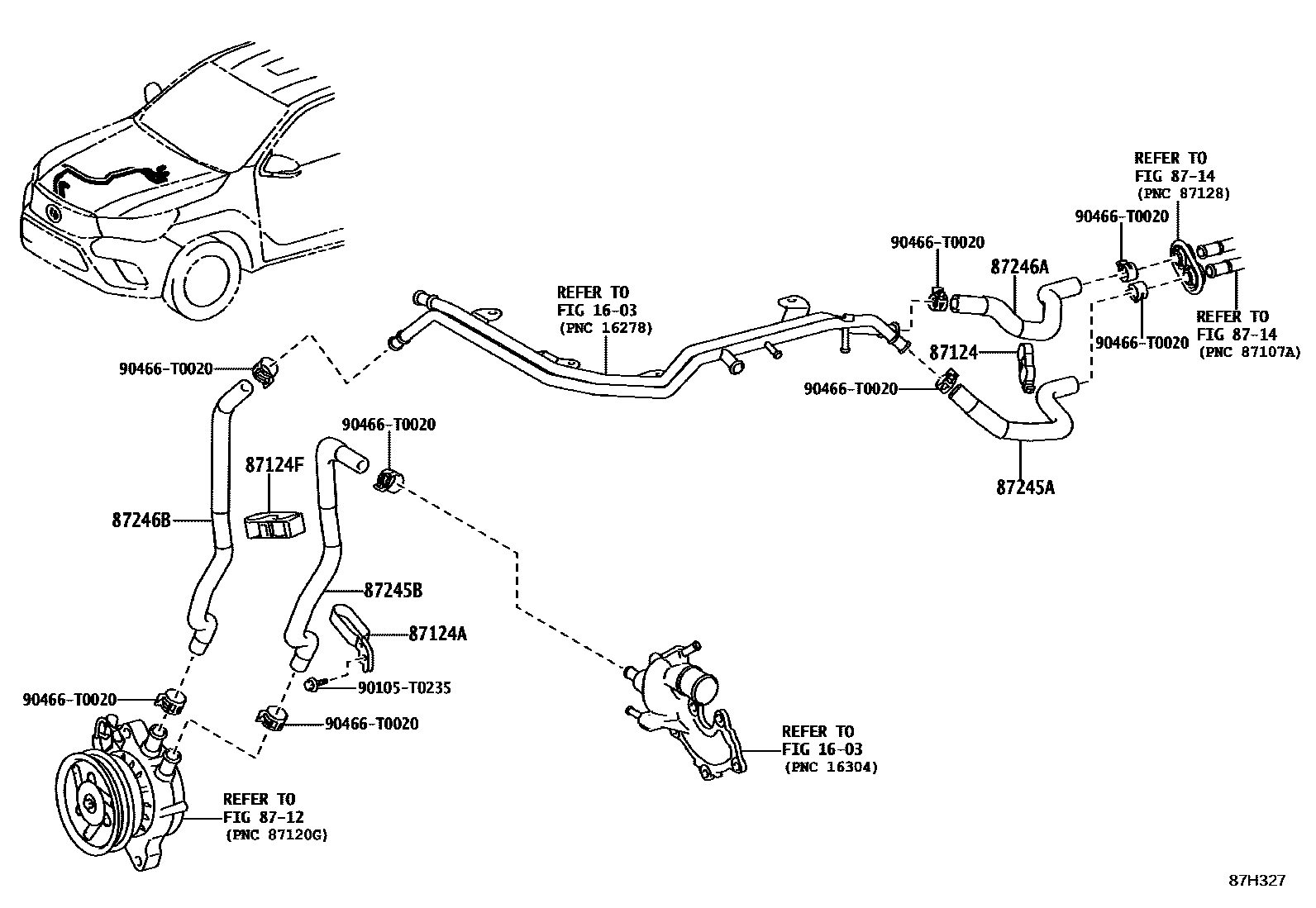

HEATING & AIR CONDITIONING - WATER PIPING

1603

8712

87124CLAMP, HEATER

main87124-0K150iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201806-202009

main87124-0K240iGUN12#,135201506-201806

87124ACLAMP, HEATER

main87124-0K200iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

87124FCLAMP, HEATER HOSE, NO.1

main87124-60110iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

8714

87245AHOSE, HEATER WATER, INLET A

main87245-0KD10iGUN125,135..DCRE201905-202009

main87245-0KE00iGUN12#,135201506-201609

main87245-0KE01iGUN12#,135201610-201806

main87245-0KE02iGUN12#..HDCR;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..HDCR201806-202005

87245BHOSE, HEATER WATER, INLET B

main87245-0KE80iGUN135..SAXTR..X201506-201807

87246AHOSE, HEATER WATER, OUTLET A

main87245-0KE10iGUN12#,135201506-201609

main87245-0KE11iGUN135..SAXTR..X201610-201807

main87245-0KF00iGUN125,135..DCRE201905-202009

87246BHOSE, HEATER WATER, OUTLET B

main87245-0KE90iGUN135..SAXTR..X201506-201807

90105T0235

main90105-T0235

90466T0020

main90466-T0020

12 parts on this diagram · 1 diagram in section
