SWITCH & RELAY & COMPUTER

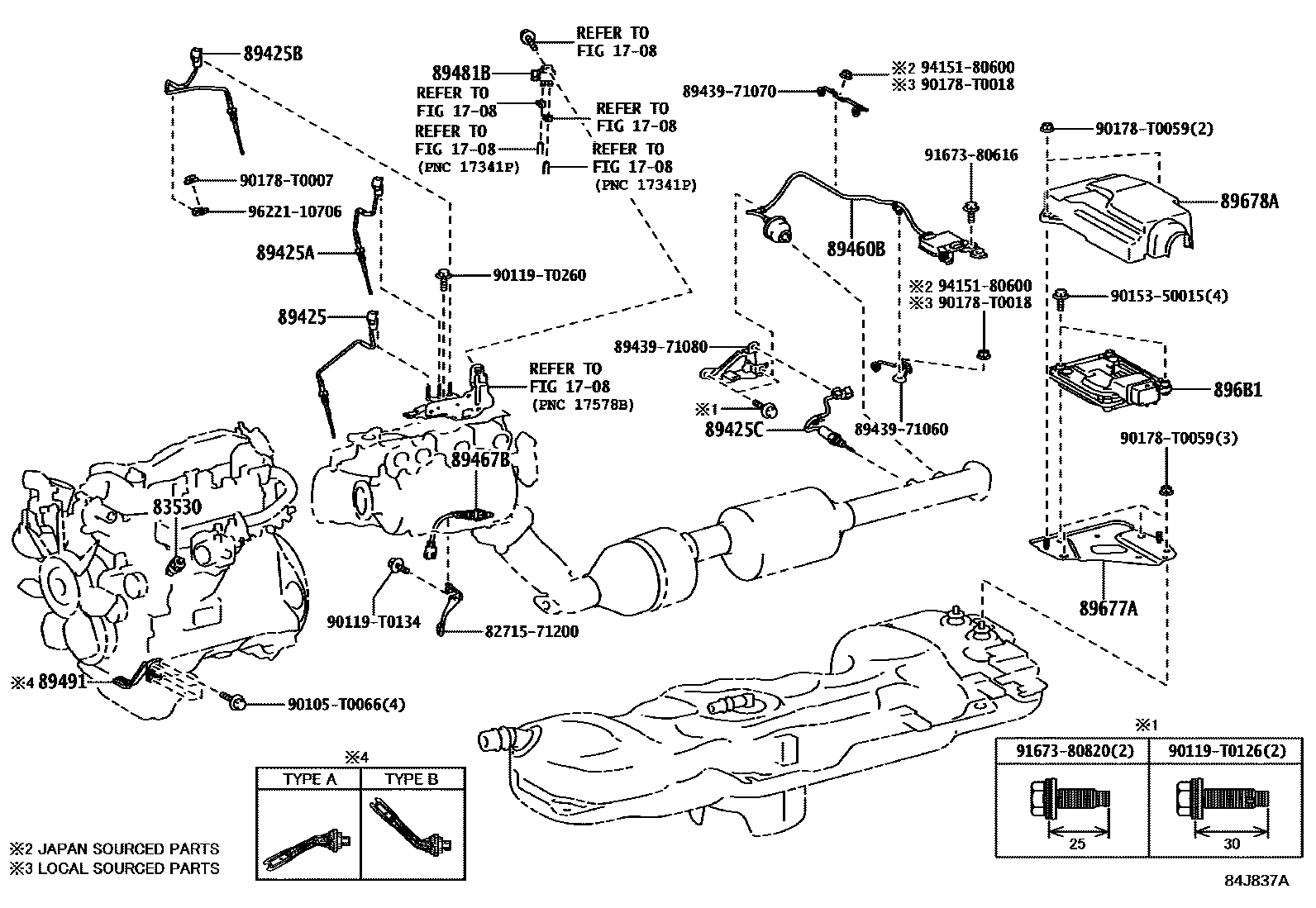

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010i201506-201807

DENSO

main83530-60010i201506-201807

YAZAKI

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070i201506-202009

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080i201506-201807

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090i201506-201807

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-71060i201602-201807

89460BSENSOR ASSY, NITROGEN OXIDES

main89460-0K010i201506-201807

89467BSENSOR, AIR FUEL RATIO

main89467-71120×2i201604-201905

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010i201506-202009

89491SENSOR, ENGINE OIL LEVEL

main89491-26190i201905-202005

RUSSIA & UKRAINE SPEC

main89491-71010i201506-201807

TYPE A:REFER ILLUST.

89677ABRACKET, UREA PUMP CONTROL, NO.1

main89677-71010i201506-201807

89678ABRACKET, UREA PUMP CONTROL, NO.2

main89678-0K010i201506-201807

896B1COMPUTER, UREA PUMP CONTROL

main896B1-71010i201506-201807

main896B1-71040i201905-202009

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

8943971060BRACKET, SENSOR

main89439-71060

8943971070BRACKET, SENSOR

main89439-71070

8943971080BRACKET, SENSOR

main89439-71080

90105T0066

main90105-T0066

90119T0126

main90119-T0126

90119T0134

main90119-T0134

90119T0260

main90119-T0260

9015350015

main90153-50015

90178T0007

main90178-T0007

90178T0018

main90178-T0018

90178T0059

main90178-T0059

9167380616

main91673-80616

9167380820

main91673-80820

9415180600

main94151-80600

9622110706

main96221-10706

29 parts on this diagram · 16 diagrams in section
