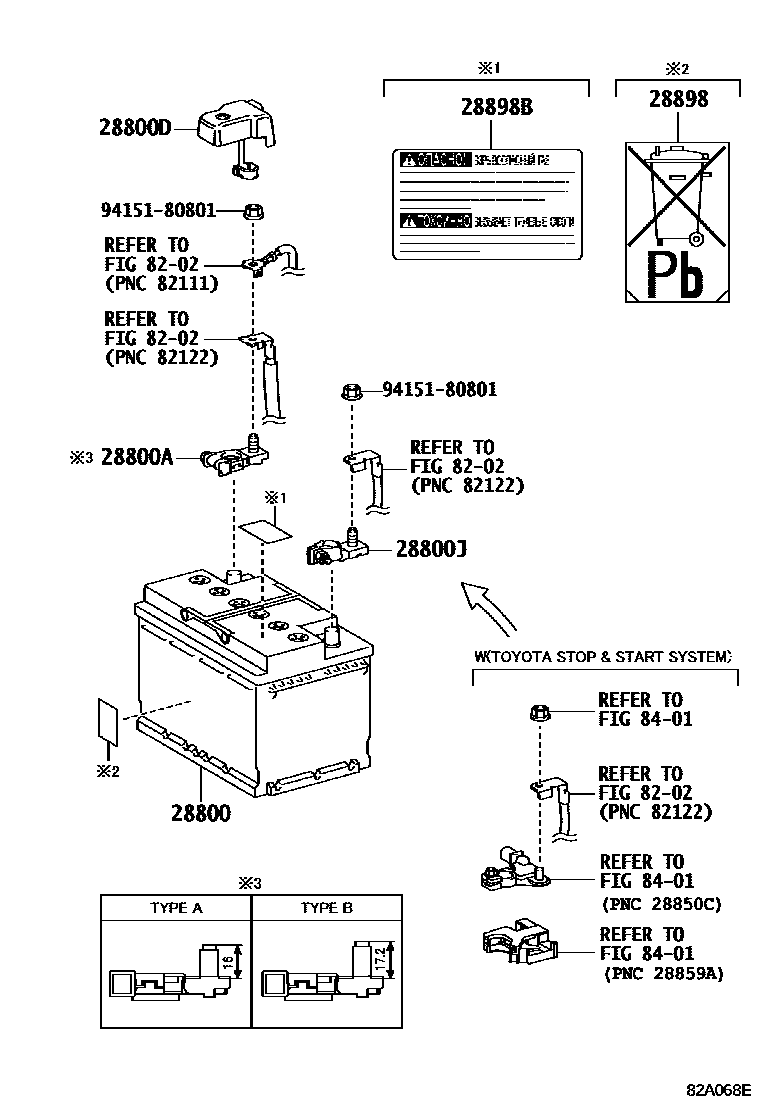

BATTERY & BATTERY CABLE

0001 11-BATTERY 0002 12-BATTERY

28800BATTERY

main28800-0L480i1GDFTV..GUN126..SADCB201604-201807

LN3,MAIN

main28800-0L490i2GDFTV..GUN135..SAXTR..X201604-201807

LN4

main28800-0L500i1GDFTV..GUN126..THDCB201506-201607

LN3,MAIN

main28800-0L501i1GDFTV..GUN126..THDCB201608-201610

LN3,MAIN

main28800-0L502i1GDFTV..GUN126..THDCB201611-202005

LN3,MAIN

main28800-0L510i2GDFTV..GUN125,135..THDCB201506-202005

LN4,GS

main28800-0L540i1GDFTV..GUN126..SADCB201604-201807

LN3,SUB

main28800-0L670i1GDFTV..GUN126..THDCB201506-201607

LN3R,SUB

main28800-0L671i1GDFTV..GUN126..THDCB201608-201610

LN3R,SUB

main28800-0L672i1GDFTV..GUN126..THDCB201611-202005

LN3R,SUB

main28800-0L550i2GDFTV..GUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

LN4,TOYOTA STOP & START SYSTEM-WITH

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GDFTV..GUN125,135201506-201708

main90982-05061i1GDFTV..GUN126201506-202005

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0K160i2GDFTV..GUN135..SAXTR..X201506-201807

main82821-33350i2GDFTV..GUN125,135..DCRE201905-202009

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

28898PLATE, BATTERY

main28898-0L010i2GDFTV..GUN135..SAXTR..X201506-201807

28898BPLATE, BATTERY

main28897-30010×2i1GDFTV..GUN126..SADCB201604-201807

main28897-31040×2i1GDFTV..GUN126..THDCB201506-202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

9 parts on this diagram · 2 diagrams in section
