EPC Data

SEAT & SEAT TRACK

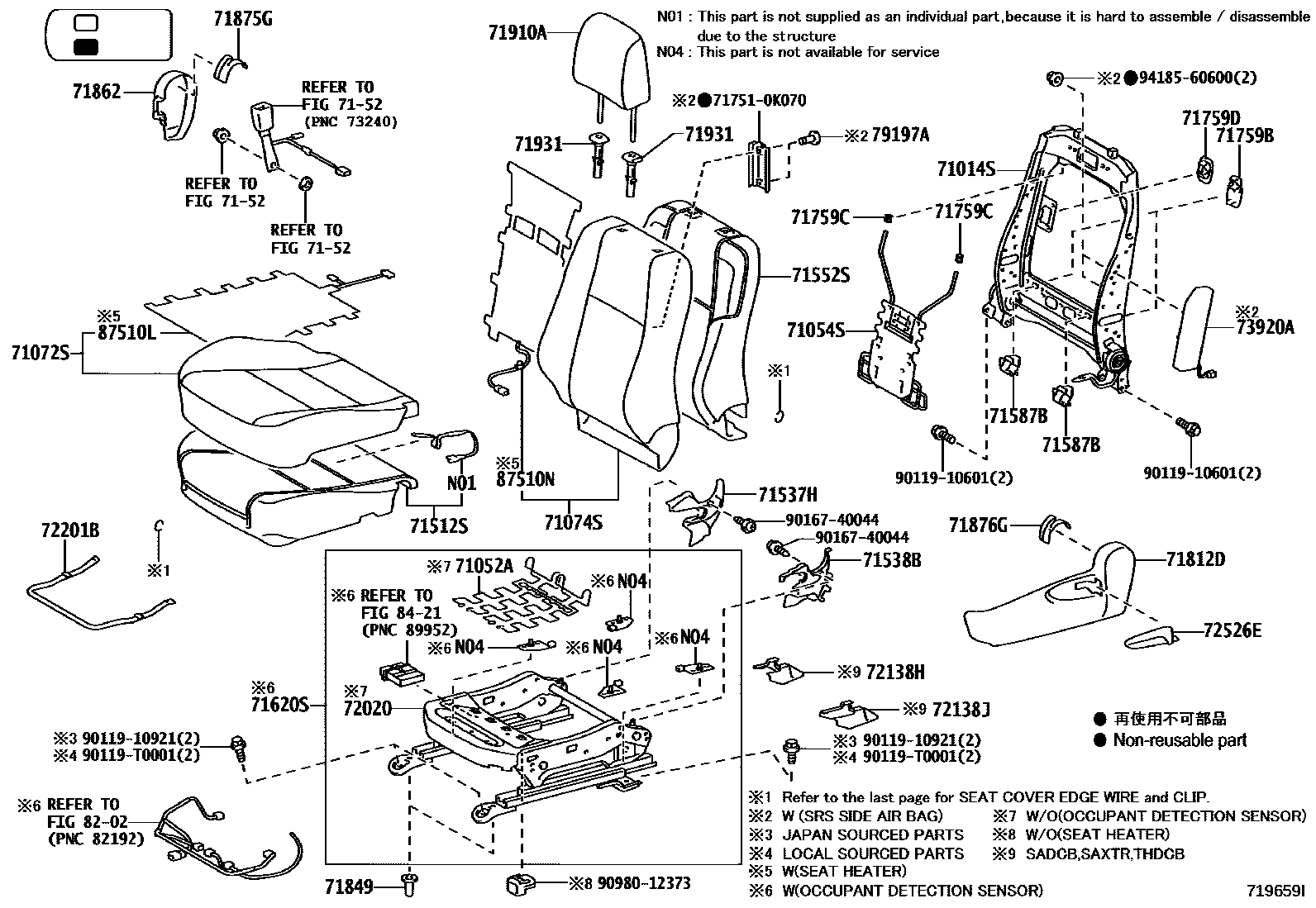

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K340i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
main71014-0K360i201506-202005
main71014-0K460i201604-202009
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
main71014-0K480i201604-202009
main71014-0K500i201805-201808
UKRAINE SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71014-0K650i201712-201905
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06070i201506-202005
main71051-0D060i201604-201807
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K030i201506-202005
main71053-0K040i201604-202009
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0KU70-C0i201604-202009
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71072-0KL00-C2supersedes 71072-0KU70-C0i201604-201808
ISRAEL SPEC(EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KL40-C0supersedes 71072-0KN50-C0i201604-201710
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KL41-C1supersedes 71072-0KN51-C1i201710-202009
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KM20-C2supersedes 71072-0KL70-C2i201604-201808
TURKEY SPEC(EURO 5 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KQ10-C2supersedes 71072-0KV00-C0i201604-202009
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KQ40-C2supersedes 71072-0KL80-C2i201604-201808
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KT40-C0supersedes 71072-0KT30-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KU20-C1i201506-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU30-C1supersedes 71072-0KU00-C0i201506-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU60-C0i201604-202009
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KV10-C0supersedes 71072-0KV00-C0i201604-202009
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KV20-C1supersedes 71072-0KV00-C0i201604-202009
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP040-C0i201905-202005
"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main71072-YP060-C0supersedes 71072-0KU00-C0i201905-202005
"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main71072-YP070-C0i201805-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main71072-YP080-C0i201805-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-YP090-C0i201805-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main71072-YP100-C0i201805-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K770-C2i201604-201708
BLACK,TRIM2#
main71074-0K770-C3i201708-202009
BLACK,TRIM2#
main71074-0KA70-C1i201604-201708
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71074-0KA70-C3i201708-202009
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71074-0K630-C5i201506-201708
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0K631-C7i201712-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0K720-C2i201604-201708
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0K720-C3i201710-202009
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0K790-C2i201604-201708
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0K790-C3i201708-202009
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0K820-C1i201604-201708
RUSSIA & UKRAINE SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71074-0K820-C3i201708-201808
RUSSIA & UKRAINE SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71074-0K830-C1i201604-201708
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0K830-C2supersedes 71074-0KA70-C3i201708-202009
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0K890-C2i201604-201708
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-0K890-C5i201708-201808
ISRAEL SPEC(EURO 6 REGULATION),BLACK,TRIM2#
main71074-0KA00-C2supersedes 71074-0KA80-C2i201604-201708
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KA00-C4supersedes 71074-0KA80-C5i201708-202009
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KA30-C3i201604-201708
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KA30-C4i201708-201808
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KA40-C3supersedes 71074-0KA80-C2i201604-201708
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KA40-C4supersedes 71074-0KA80-C5i201708-202009
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KA90-C3i201604-201708
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KA90-C4i201708-201808
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KD60-C2supersedes 71074-0KD70-C2i201604-201710
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KD61-C4supersedes 71074-0KD71-C4i201710-202009
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KF30-C4supersedes 71074-0K590-C3i201506-201708
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KF31-C5supersedes 71074-0KE91-C6i201708-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-0KG90-C1supersedes 71074-0KG30-C1i201506-201708
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KG91-C2supersedes 71074-0KG31-C3i201708-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KJ00-C1i201604-201708
ISRAEL SPEC(EURO 5 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KJ00-C2i201708-201808
ISRAEL SPEC(EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KJ20-C3i201604-201708
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KJ20-C4supersedes 71074-0KJ10-C4i201708-201808
TURKEY SPEC(EURO 5 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-YP020-C1i201712-201905
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-YP030-C1supersedes 71074-0KE91-C6i201712-201905
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-YP040-C1i201805-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main71074-YP050-C1i201805-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-YP060-C1i201805-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main71074-YP070-C1i201805-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0K080i201506-201904
main71512-0K081i201905-202005
main71512-0K170i201604-202009
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
main71512-0K570i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
sub71512-0K571
main71512-0K590i201604-202005
main71512-0K591i202006-202009
main71512-0K090i201712-201904
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71512-0K091i201905-202005
"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITHOUT
main71512-0K180i201805-201808
UKRAINE SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71512-0K181i202006-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02170-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71537-02200-C0i201604-201905
BLACK,TRIM2#,3#,4#
main71537-02300-C0i201506-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71537-0K170-C0i201604-201905
BLACK,TRIM2#,3#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-02110-C0i201604-201807
BLACK,TRIM2#
main71538-02120-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71538-02230-C0i201905-202005
"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71538-0K130-C0i201604-201905
BLACK,TRIM2#,3#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0K160i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
main71552-0K200i201506-202005
main71552-0K390i201604-201807
main71552-0K400i201604-202009
main71552-0K450i201604-202009
main71552-0K460i201604-201807
main71552-0KC30i201604-202009
main71552-0K360i201604-201808
TURKEY SPEC(EURO 5 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K030×4i201506-202005
main71587-0K040×4i201604-201807
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-0K250i201604-202009
71759BHOOK, FRONT SEATBACK
main71759-0K140×4i201506-202009
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K060×4i201506-202005
main71759-0K080×4i201604-202009
71759DHOOK, FRONT SEATBACK, NO.2
main71759-0K070-C0×2i201905-202009
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0K100-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71812-0K110-C0i201905-202005
BLACK,TRIM2#
main71812-0K150-C0i201604-201807
BLACK,TRIM2#
main71812-0K330-C0i201604-202009
BLACK,TRIM2#
main71812-0K480-C0i201604-202009
BLACK,TRIM2#
main71812-0K120-C0i201506-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K490-C0i201604-201808
TURKEY SPEC(EURO 5 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-02040×2i201604-202009
main71848-47010×2i201506-202005
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0K140-C0i201604-201807
BLACK,TRIM2#
main71862-0K240-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71862-0K250-C0i201905-202005
"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71862-0K270-C0i201604-202009
BLACK,TRIM2#
main71862-0K320-C0i201604-201905
BLACK,TRIM2#,3#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-0K120-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71875-0K160-C0i201604-201807
BLACK,TRIM2#
main71875-0K130-C0i201604-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-0K120-C0i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71876-0K160-C0i201604-201905
BLACK,TRIM2#,3#,4#
main71876-0K130-C0i201805-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-0KB60-C2×2i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71910-0KB80-C0×2i201506-202005
BLACK,TRIM2#
main71910-0KC60-C2×2i201604-201807
BLACK,TRIM2#
main71910-0KC70-C1×2i201604-202009
BLACK,TRIM2#
main71910-0KC80-C0×2i201604-202009
BLACK,TRIM2#
main71910-0KC00-C2×2i201506-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71910-0KD00-C2×2i201805-201808
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0K050-C0×2i201506-202005
W(LOCK),BLACK,TRIM2#
main71930-47050-C0×2i201604-201610
W(LOCK),BLACK,TRIM2#
main71930-47050-C5×2i201610-201807
W(LOCK),BLACK,TRIM2#
main71931-0K040-C0×2i201506-202005
W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main71931-47030-C0×2i201604-201610
W/O(LOCK),BLACK,TRIM2#
main71931-47030-C4×2i201610-201905
W/O(LOCK),FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0K060i201506-202005
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)
main72020-0K070i201506-202005
main72020-0K140i201604-201807
main72020-0K150i201604-202009
main72020-0K080i201712-201905
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main72020-0K160i201604-201808
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER)
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-KK010-C0i201506-202005
BLACK,TRIM2#,3#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0i201604-201905
BLACK,TRIM2#,3#,4#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0D160i201506-202005
main72211-0K120i201604-201807
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06130-C0i201506-202005
BLACK,TRIM2#,3#
main72526-0D260-C0i201506-201807
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0K050i201506-202005
sub73920-0K190
main73920-0K070i201604-201807
main73920-0K080i201604-202009
sub73920-0K170
79197ARIVET
main79197-0K010×4i201506-202009
8202
8421
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-0K120supersedes 87510-0K110i201604-201808
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER)
sub87530-0K080
main87510-0K220i201902-202009
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-0K230i201904-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-0K150i201506-201708
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-0K130i201604-201902
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-0K140i201710-201808
TURKEY SPEC(EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER)
main87530-0K050i201902-202009
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87530-0K060i201902-202009
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87530-0K070i201904-202009
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM)&SEAT HEATER-WITH(DRIVER & PASSENGER)
717510K070HANGER, SEAT COVER
main71751-0K070
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9016740044
main90167-40044
9098012373
main90980-12373
9418560600
main94185-60600

40 parts on this diagram · 12 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
