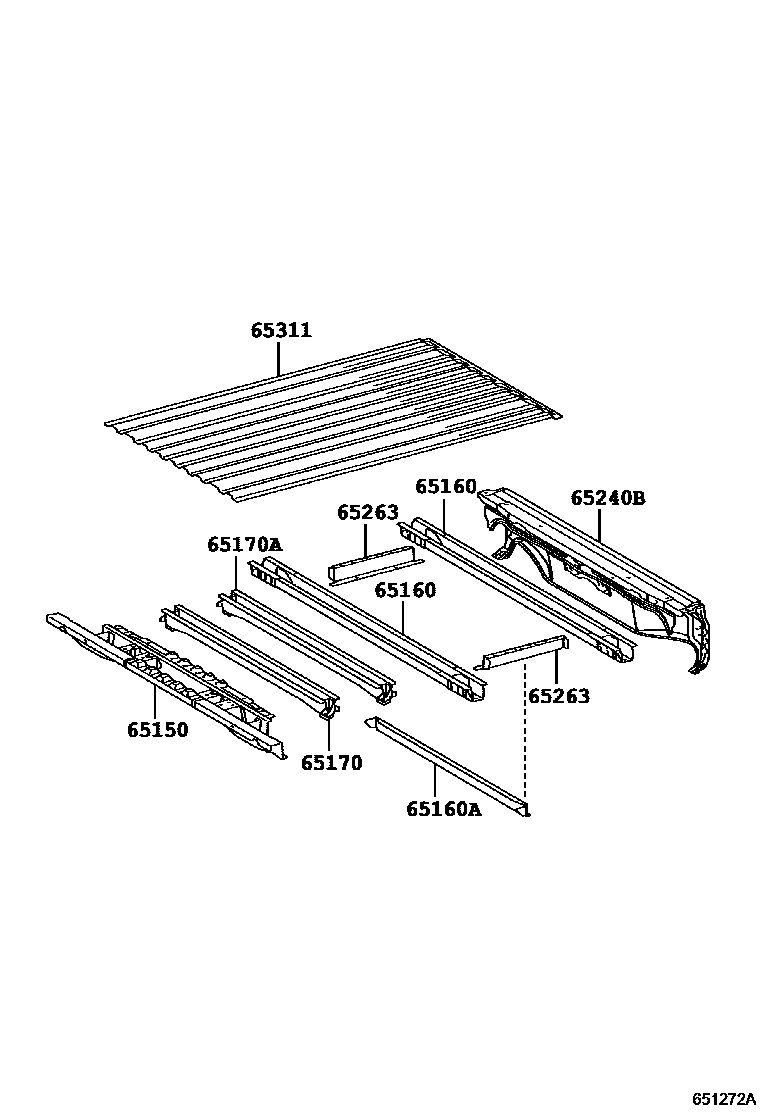

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1

65150SILL ASSY, CROSS, NO.1

main65150-KK010iGUN12#,135..(SADCB,THDCB)..CBU201506-202009

main65151-0K011iGUN135..SAXTR..X201604-201807

65160SILL ASSY, CROSS, NO.2

main65160-KK010×2iGUN135..SAXTR..X201506-201807

65160ASILL ASSY, CROSS, NO.2

main65261-0K011iGUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU201506-202009

65170SILL ASSY, CROSS, NO.2

main65170-KK010iGUN135..SAXTR..X201506-201807

65170ASILL ASSY, CROSS, NO.3

main65170-KK010iGUN135..SAXTR..X201506-201807

65240BSILL ASSY, CROSS, NO.9

main65240-KK010iGUN12#,135..THDCB201506-202005

EXCEPT PLANT TSAM

main65240-KK090iGUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU201601-202009

PLANT TSAM

65263REINFORCEMENT, FLOOR SIDE FRAME

main65263-KK010×2iGUN135..SAXTR..X201506-201807

65311PANEL, FLOOR, CENTER

main65311-KK010iGUN12#,135..(SADCB,THDCB)..CBU201506-202009

main65311-KK020iGUN125,135..SASCB..CBU201604-202009

main65311-KK040iGUN135..SAXTR..X201604-201807

8 parts on this diagram · 3 diagrams in section
