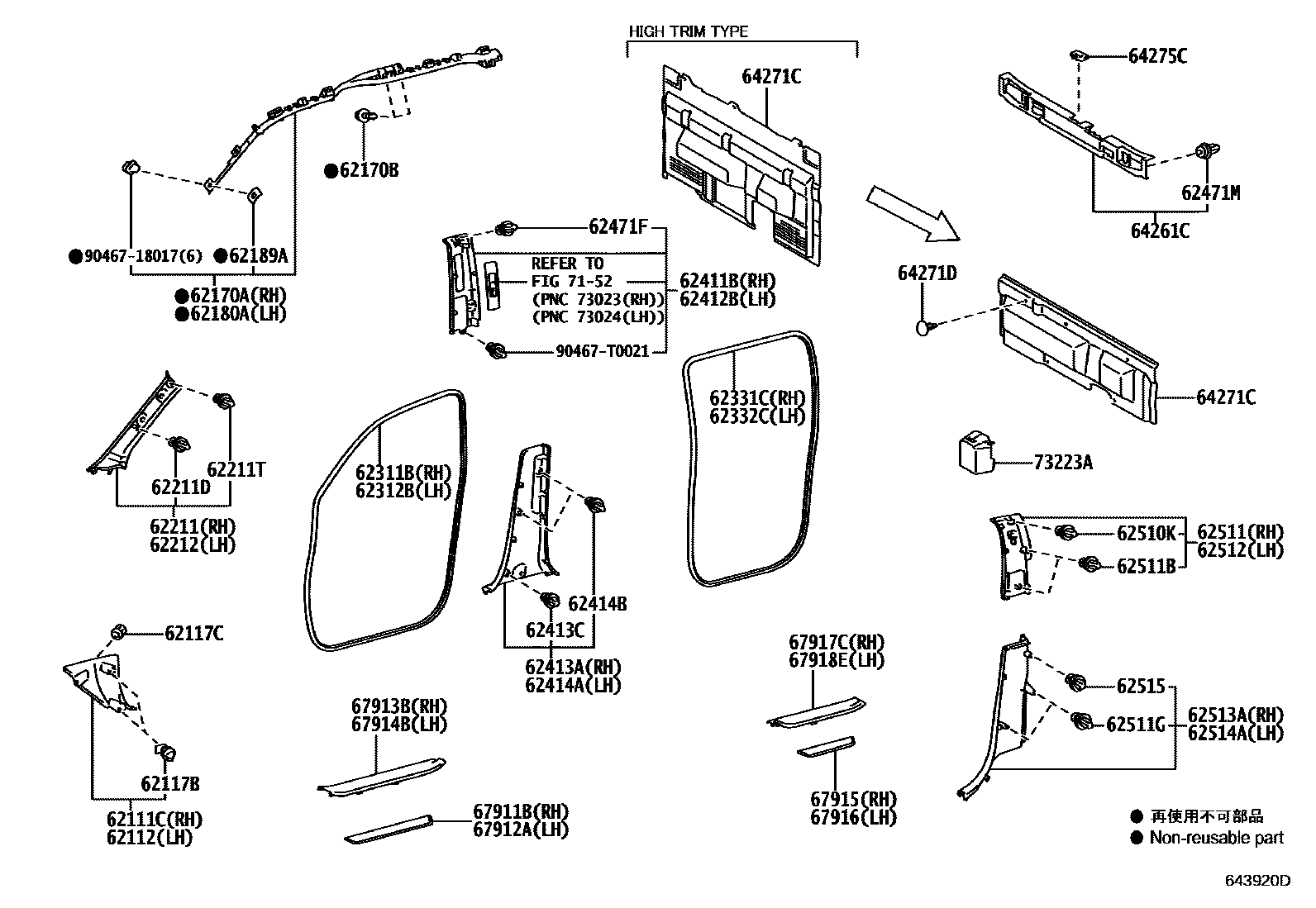

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K210-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main62111-0K210-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

main62111-KK010-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

main62111-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K210-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main62112-0K210-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main62112-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main62112-KK010-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-11089-A0iGUN135..SAXTR..X201506-202009

IVORY

sub90467-11089

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iGUN135..SAXTR..X201506-202009

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K100iGUN12#,135..THDCB201506-202005

main62170-0K120iGUN12#,135..SADCB201604-202009

main62170-0K150iGUN125,135..SASCB201604-202009

main62170-0K160iGUN135..SAXTR..X201604-202009

62170BBOLT, W/WASHER

main91673-80616iGUN135..SAXTR..X201506-202009

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K100iGUN12#,135..THDCB201506-202005

main62180-0K120iGUN12#,135..SADCB201604-202009

main62180-0K150iGUN125,135..SASCB201604-202009

main62180-0K160iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202009

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

62211GARNISH, FRONT PILLAR, RH

main62211-0K190-B0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

LT.GRAY,TRIM20

main62211-0K190-B0iGUN135..THDCB..M201506-201904

LT.GRAY,TRIM2#,3#

main62211-0K190-B0iGUN125,135..THDCB..S201506-202005

LT.GRAY,TRIM2#

main62211-0K190-B0iGUN12#..THDCB..(H,M)..HDCR201712-202005

LT.GRAY,TRIM20,3#

main62211-0K190-C0iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201712-202005

BLACK,TRIM21

main62211-KK030-B0iGUN135..HDCR..IV3;GUN135..SADCB..S..HDCR;GUN125..SAXTR..M..HDCR;GUN135..SASCB..X..HDCR;GUN125..(SADCB,SAXTR)..(H,M)..DCRE;GUN125..(SADCB,SASCB,SAXTR)..(S,X)..HDCR201804-202009

LT.GRAY,TRIM20

main62211-KK030-B0iGUN135..IV3;GUN135..SADCB..S;GUN125,135..(SASCB,SAXTR)..(M,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

LT.GRAY,TRIM2#

main62211-KK030-B0iGUN135..IV3;GUN135..SADCB..S;GUN125,135..(SASCB,SAXTR)..(M,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-201807

LT.GRAY,TRIM2#,3#,4#

main62211-KK030-B0iGUN126..SADCB..H;GUN125,135..SADCB..(H,M)201804-201905

LT.GRAY,TRIM20,3#,4#

main62211-KK030-C0iGUN125..SADCB..6FC..H201804-201905

BLACK,TRIM20

main62211-KK030-C0iGUN135..IV3;GUN135..SADCB;GUN125..6F..H;GUN126,135..(SADCB,SASCB)..(H,X);GUN125..(SADCB,SASCB,SAXTR)..(M,S,X)201804-201905

BLACK,TRIM20,21

main62211-KK030-C0iGUN125..(SADCB,SAXTR)..(H,M)201906-202009

BLACK,TRIM21

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-T0021iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-T0021iGUN135..SAXTR..X201506-202009

62212GARNISH, FRONT PILLAR, LH

main62212-0K190-B0iGUN12#..THDCB..(H,M)..HDCR201712-202005

LT.GRAY,TRIM20,3#

main62212-0K190-B0iGUN12#..THDCB..(H,M)201506-201904

LT.GRAY,TRIM2#,3#

main62212-0K190-B0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

LT.GRAY,TRIM20

main62212-0K190-B0iGUN125,135..THDCB..S201506-202005

LT.GRAY,TRIM2#

main62212-0K190-C0iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201712-202005

BLACK,TRIM21

main62212-KK030-B0iGUN135..IV3;GUN135..SADCB..S;GUN125,135..(SASCB,SAXTR)..(M,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-201807

LT.GRAY,TRIM2#,3#,4#

main62212-KK030-B0iGUN126..SADCB..H;GUN125,135..SADCB..(H,M)201604-202009

LT.GRAY,TRIM2#

main62212-KK030-B0iGUN135..SAXTR..X201804-202009

LT.GRAY,TRIM20

main62212-KK030-B0iGUN126..SADCB..H;GUN125,135..SADCB..(H,M)201804-201905

LT.GRAY,TRIM20,3#,4#

main62212-KK030-C0iGUN135..IV3;GUN135..SADCB;GUN125..6F..H;GUN126,135..(SADCB,SASCB)..(H,X);GUN125..(SADCB,SASCB,SAXTR)..(M,S,X)201804-201905

BLACK,TRIM20

main62212-KK030-C0iGUN125..SADCB..6FC..H201804-201905

BLACK,TRIM20,21

main62212-KK030-C0iGUN125..(SADCB,SAXTR)..(H,M)201906-202009

BLACK,TRIM21

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0K110iGUN12#,135..THDCB201506-201609

sub62311-0K111

main62311-0K111iGUN12#,135..THDCB201610-202005

main62311-0K140iGUN12#,135..SADCB201604-201611

sub62311-0K141

main62311-0K141iGUN12#,135..SADCB201612-202009

main62311-0K160iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202009

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0K110iGUN12#,135..THDCB201506-201609

sub62312-0K111

main62312-0K111iGUN12#,135..THDCB201610-202005

main62312-0K140iGUN12#,135..SADCB201604-201611

sub62312-0K141

main62312-0K141iGUN12#,135..SADCB201612-202009

main62312-0K160iGUN135..SAXTR..X201604-202009

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K120iGUN12#,135..THDCB201506-201609

sub62331-0K121

main62331-0K121iGUN12#,135..THDCB201610-202005

main62331-0K140iGUN12#,135..SADCB201604-201611

sub62331-0K141

main62331-0K141iGUN12#,135..SADCB201612-202009

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K120iGUN12#,135..THDCB201506-201609

sub62332-0K121

main62332-0K121iGUN12#,135..THDCB201610-202005

main62332-0K140iGUN12#,135..SADCB201604-201611

sub62332-0K141

main62332-0K141iGUN12#,135..SADCB201612-202009

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0K110-B0iGUN125,135..THDCB..S201506-202005

LT.GRAY,TRIM2#

main62411-0K110-B0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

LT.GRAY,TRIM20

main62411-0K110-B0iGUN12#..THDCB..(H,M)201506-201904

LT.GRAY,TRIM2#,3#

main62411-0K110-B0iGUN12#..THDCB..(H,M)..HDCR201712-202005

LT.GRAY,TRIM20,3#

main62411-0K110-C0iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201712-202005

BLACK,TRIM21

main62411-KK020-B0iGUN125..SADCB..(H,M)201906-202009

LT.GRAY,TRIM20

main62411-KK020-B0iGUN125..SADCB..6FC..H201604-201905

LT.GRAY,TRIM2#,3#,4#

main62411-KK020-B0iGUN125..SADCB..6FC..H201804-201905

LT.GRAY,TRIM20,3#,4#

main62411-KK020-B0iGUN135..SADCB..M..DCRE;GUN125,135..SADCB..(S,X)201604-202009

LT.GRAY,TRIM2#

main62411-KK020-C0iGUN125..6F..H..DCRE;GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE201804-202009

BLACK,TRIM21

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0K110-B0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

LT.GRAY,TRIM20

main62412-0K110-B0iGUN12#..THDCB..(H,M)201506-201904

LT.GRAY,TRIM2#,3#

main62412-0K110-B0iGUN125,135..THDCB..S201506-202005

LT.GRAY,TRIM2#

main62412-0K110-B0iGUN12#..THDCB..(H,M)..HDCR201712-202005

LT.GRAY,TRIM20,3#

main62412-0K110-C0iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201712-202005

BLACK,TRIM21

main62412-KK020-B0iGUN125..SADCB..6FC..H201604-201905

LT.GRAY,TRIM2#,3#,4#

main62412-KK020-B0iGUN125..SADCB..6FC..H201804-201905

LT.GRAY,TRIM20,3#,4#

main62412-KK020-B0iGUN135..SADCB..M..DCRE;GUN125,135..SADCB..(S,X)201604-202009

LT.GRAY,TRIM2#

main62412-KK020-B0iGUN125..SADCB..(H,M)201906-202009

LT.GRAY,TRIM20

main62412-KK020-C0iGUN125..6F..H..DCRE;GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE201804-202009

BLACK,TRIM21

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K110-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#

main62413-0K110-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iGUN12#,135..THDCB201506-202005

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K110-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main62414-0K110-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10188iGUN12#,135..THDCB201506-202005

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iGUN12#,135..SADCB,THDCB201506-202009

62471MCLIP

main90467-T0021iGUN12#,135..SADCB,SASCB,THDCB201506-202009

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10188iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-0K360-B0iGUN135..THDCB..M201506-201904

LT.GRAY,TRIM2#,3#

main62511-0K360-B0iGUN125,135..THDCB..S201506-202005

LT.GRAY,TRIM2#

main62511-0K360-B0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

LT.GRAY,TRIM20

main62511-0K360-B0iGUN12#..THDCB..(H,M)..HDCR201712-202005

LT.GRAY,TRIM20,3#

main62511-0K360-C0iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201712-202005

BLACK,TRIM21

main62511-KK020-B0iGUN125,135..SASCB201604-202009

LT.GRAY,TRIM2#

main62511-KK040-B0iGUN135..SAXTR..X201604-202009

LT.GRAY,TRIM2#

main62511-KK040-B0iGUN125..SAXTR..M201906-202009

LT.GRAY,TRIM20

main62511-KK040-C0iGUN125..SAXTR..M201906-202009

BLACK,TRIM21

main62511-KK070-B0iGUN125..SADCB..6FC..H201604-201905

LT.GRAY,TRIM2#,3#,4#

main62511-KK070-B0iGUN125..SADCB..6FC..H201804-201905

LT.GRAY,TRIM20,3#,4#

main62511-KK070-B0iGUN135..SADCB..M..DCRE;GUN125,135..SADCB..(S,X)201604-202009

LT.GRAY,TRIM2#

main62511-KK070-B0iGUN125..SADCB..(H,M)201906-202009

LT.GRAY,TRIM20

main62511-KK070-C0iGUN125..6F..H..DCRE;GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE201804-202009

BLACK,TRIM21

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-T0021iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-T0021iGUN135..SAXTR..X201506-202009

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-0K360-B0iGUN125,135..THDCB..S201506-202005

LT.GRAY,TRIM2#

main62512-0K360-B0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

LT.GRAY,TRIM20

main62512-0K360-B0iGUN12#..THDCB..(H,M)201506-201904

LT.GRAY,TRIM2#,3#

main62512-0K360-B0iGUN12#..THDCB..(H,M)..HDCR201712-202005

LT.GRAY,TRIM20,3#

main62512-0K360-C0iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201712-202005

BLACK,TRIM21

main62512-KK020-B0iGUN125,135..SASCB201604-202009

LT.GRAY,TRIM2#

main62512-KK040-B0iGUN125..SAXTR..S;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN125..SAXTR..M..HDCR201604-202009

LT.GRAY,TRIM2#

main62512-KK040-B0iGUN125..SAXTR..M201906-202009

LT.GRAY,TRIM20

main62512-KK040-C0iGUN125..SAXTR..M201906-202009

BLACK,TRIM21

main62512-KK070-B0iGUN125..SADCB..(H,M)201906-202009

LT.GRAY,TRIM20

main62512-KK070-B0iGUN125..6F..H;GUN125..SADCB..M;GUN126,135..SADCB..(H,M)201604-201905

LT.GRAY,TRIM2#,3#,4#

main62512-KK070-B0iGUN135..SADCB..M..DCRE;GUN125,135..SADCB..(S,X)201604-202009

LT.GRAY,TRIM2#

main62512-KK070-B0iGUN125..SADCB..6FC..H201804-201905

LT.GRAY,TRIM20,3#,4#

main62512-KK070-C0iGUN125..6F..H..DCRE;GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE201804-202009

BLACK,TRIM21

62513APANEL, QUARTER TRIM, LOWER RH

main62513-0K110-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

sub62513-0K111

main62513-0K110-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

sub62513-0K111

main62513-0K250-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

main62513-KK010-C0iGUN125,135..SASCB201604-202009

BLACK,TRIM2#

main62513-KK060-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main62513-KK060-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-0K110-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main62514-0K110-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main62514-0K250-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

main62514-KK010-C0iGUN125,135..SASCB201604-202009

BLACK,TRIM2#

main62514-KK060-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main62514-KK060-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

62515CLIP, QUARTER INSIDE TRIM

main90467-10167iGUN12#,135..THDCB201506-202005

main90467-T0021iGUN12#,135..SADCB201604-202009

64261CGARNISH, BACK PANEL, UPPER

main64261-0K090-B0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

LT.GRAY,TRIM2#

main64261-0K090-B0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

LT.GRAY,TRIM2#,3#

main64261-KK010-B0iGUN125,135..SASCB201604-202009

LT.GRAY,TRIM2#

main64261-KK050-B0iGUN125..6F..H;GUN125..SADCB..M;GUN126,135..SADCB..(H,M)201604-201905

LT.GRAY,TRIM2#,3#,4#

main64261-KK050-B0iGUN135..SADCB..M..DCRE;GUN125,135..SADCB..(S,X);GUN125..LHD..SADCB..6FC..H..DCRE201604-202009

LT.GRAY,TRIM2#

main64261-KK050-B0iGUN125..RHD..(H,M);GUN125..LHD..SADCB..6FC..M;GUN125..LHD..SADCB..6F..(H,M)201906-202009

LT.GRAY,TRIM20

main64261-KK050-B0iGUN125..SADCB..6FC..H201810-201905

LT.GRAY,TRIM20,3#,4#

main64261-KK050-C0iGUN125..RHD..6FC..H;GUN125..6F..H..DCRE;GUN125..SADCB..M..DCRE;GUN125..LHD..SADCB..6FC..H..HDCR201810-202009

BLACK,TRIM21

64271CTRIM, BACK PANEL

main64271-0K110iGUN125,135..SAXTR..DCRE202008-202009

main64271-0K110-C0iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202008

BLACK,TRIM2#

main64271-0K250iGUN125,135..SASCB201604-202009

main64271-0K280iGUN125,135..SADCB..(S,X)201604-202009

main64271-0K300iGUN135..THDCB..M;GUN12#..THDCB..6FC;GUN135..THDCB..S..DCRE;GUN125..THDCB..6F..DCRE;GUN125..THDCB..6F..M..HDCR201506-202005

main64271-0K370iGUN12#,135..SADCB..(H,M)201604-202009

main64271-0K400iGUN125,135..THDCB..S201506-201608

64271DCLIP(FOR BACK PANEL TRIM)

main90467-10188iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202009

NO.1

main90467-T0004-C1iGUN12#,135..SADCB,THDCB201506-202009

BLACK

main90467-T0004-C1iGUN125..SASCB;GUN135..SASCB..X;GUN135..SASCB..IV3201604-201905

BLACK,TRIM2#

main90467-T0021iGUN135..SAXTR..X201604-202009

NO.2

64275CCOVER, BACK PANEL TRIM

main64275-0K030-B0iGUN125..SADCB..6FC..H201810-201905

LT.GRAY,TRIM20,3#

main64275-0K030-B0iGUN125..6F..H..HDCR;GUN125..SADCB..M..HDCR;GUN126,135..(H,M)..HDCR;GUN125..THDCB..(H,M)..HDCR201506-202005

LT.GRAY,TRIM2#,3#

main64275-0K030-B0iGUN135..M..DCRE;GUN125..THDCB..(H,M)..DCRE;GUN125..LHD..SADCB..6FC..H..DCRE;GUN125,135..(SADCB,THDCB)..(S,X)201506-202009

LT.GRAY,TRIM2#

main64275-0K030-B0iGUN125..RHD..(H,M);GUN125..LHD..SADCB..6FC..M;GUN125..LHD..SADCB..6F..(H,M)201906-202009

LT.GRAY,TRIM20

main64275-0K030-C0iGUN125..RHD..6FC..H;GUN125..6F..H..DCRE;GUN125..SADCB..M..DCRE;GUN125..LHD..SADCB..6FC..H..HDCR201810-202009

BLACK,TRIM21

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0K030-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main67911-0K030-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#

main67911-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67911-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0K010-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

main67912-0K010-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main67912-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67912-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K150-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#

main67913-0K150-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

main67913-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67913-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

main67913-KK020-C0iGUN125,135..SASCB201604-202009

BLACK,TRIM2#

main67913-KK030-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K150-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main67914-0K150-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main67914-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67914-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

main67914-KK020-C0iGUN125,135..SASCB201604-202009

BLACK,TRIM2#

main67914-KK030-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0K030-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main67915-0K030-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main67915-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67915-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0K030-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

main67916-0K030-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main67916-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67916-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K150-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main67917-0K150-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

main67917-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67917-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K150-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#

main67918-0K150-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main67918-KK010-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main67918-KK010-C0iGUN135..SADCB..S;GUN125..SADCB..DCRE;GUN135..SADCB..M..DCRE;GUN125..SADCB..(S,X)..HDCR201604-202009

BLACK,TRIM2#

7152

73223ACOVER, SEAT BELT RETRACTOR

main73223-KK020iGUN126;GUN125,135..THDCB201506-202005

9046718017

main90467-18017

90467T0021

main90467-T0021

48 parts on this diagram · 3 diagrams in section
