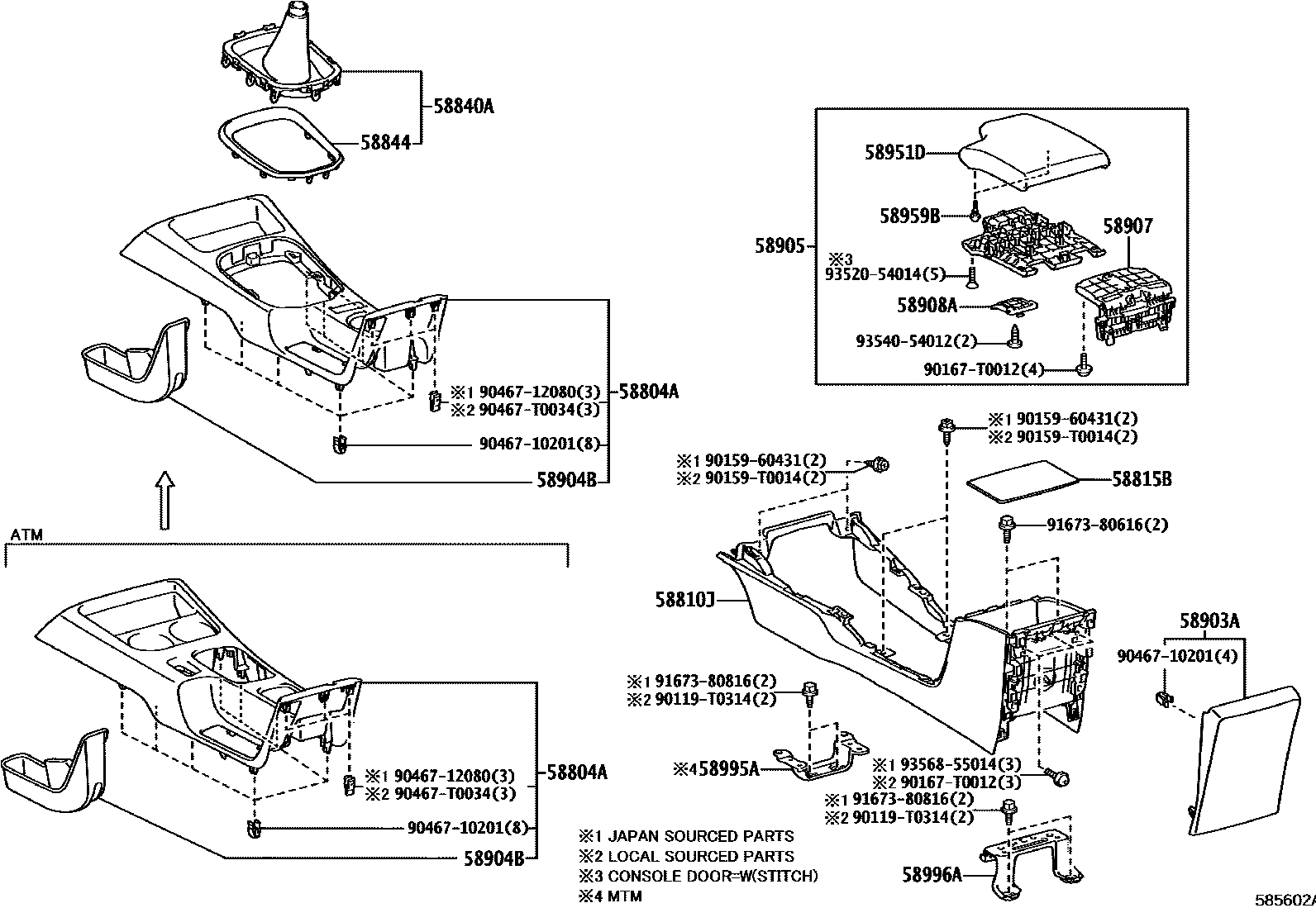

CONSOLE BOX & BRACKET

0001 1 0002 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK080-C1iGUN125..RHD..S;GUN125..RHD..6F..(H,M)..DCRE201604-202009

BLACK/GRAY,TRIM2#

main58804-KK090-C1iGUN125..RHD..6FC201906-202009

BLACK/GRAY,TRIM2#

main58804-KK130-C1iGUN135..SAXTR..S;GUN125..SAXTR..M..HDCR;GUN125..LHD..6F..(S,X);GUN125..LHD..6F..(H,M)..DCRE;GUN135..(SADCB,SASCB,THDCB)..(S,X);GUN135..(SADCB,SAXTR,THDCB)..6F..(M,X201506-202009

BLACK/GRAY,TRIM2#

main58804-KK140-C1iGUN12#..LHD..SADCB..6FC201604-201905

BLACK/GRAY,TRIM2#,3#,4#

58810JBOX ASSY, CONSOLE

main58810-KK110-C0iGUN135..SAXTR..X201604-201807

BLACK,TRIM2#

main58810-KK130iGUN125,135..SADCB..(S,X)202008-202009

main58810-KK130-C0iGUN125,135..(SADCB,THDCB)..6F..(S,X)201506-202008

BLACK,TRIM2#

main58810-KK140iGUN125,135..SADCB..6F..(H,M)202008-202009

main58810-KK140-C0iGUN125,135..(SADCB,THDCB)..6F..(H,M)..DCRE201905-202008

BLACK,TRIM2#

main58810-KK200-C0iGUN125..RHD..6FC201906-202009

BLACK,TRIM2#

main58810-KK230-C0iGUN125..6FC..S201708-202005

BLACK,TRIM2#

main58810-KK240iGUN125..LHD..6FC202008-202009

main58810-KK240-C0iGUN12#,135..THDCB..6FC..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

58815BCARPET, CONSOLE BOX

main58815-KK010iGUN135..SAXTR..X201506-201807

58840ACOVER ASSY, SHIFTING HOLE

main58840-KK010-C0iGUN135..SAXTR..X201506-201807

BLACK,TRIM2#

main58840-KK020-C0iGUN125,135..SADCB..6F..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main58840-YP010iGUN125..6F..H;GUN125..SAXTR..M201906-202009

"BLACK RALLY EDITION"*(B)

58844BEZEL, CONSOLE BOX

main58844-KK010-C0iGUN135..SAXTR..X201506-201807

BLACK,TRIM2#

main58844-KK030iGUN125,135..6F..(H,M)201506-202009

SILVER PAINTED

main58844-YP010iGUN135..THDCB..6F..M;GUN125..(SADCB,THDCB)..6F..M201905-202009

"BLACK RALLY EDITION"*(B)&SEAT COVER MATERIAL-FABRIC(MLM)

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK020-C0iGUN135..SAXTR..X201506-201807

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK060-C0iGUN125..RHD..S;GUN125..RHD..(H,M)..DCRE201604-202009

BLACK,TRIM2#

main58904-KK070-C0iGUN135..SAXTR..S;GUN125..LHD..(S,X);GUN125..SAXTR..M..HDCR;GUN125..LHD..(H,M)..DCRE;GUN135..(SADCB,SASCB,THDCB)..(S,X);GUN135..(SADCB,SAXTR,THDCB)..(M,X)..DCRE201506-202009

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7iGUN125..RHD..S201604-202009

BLACK/BLACK,TRIM2#

main58905-KK020-C4iGUN135..SAXTR..X201506-201807

BLACK/BLACK,TRIM2#

main58905-KK030iGUN125..RHD..M202008-202009

SEAT COVER MATERIAL-NATURAL LEATHER

sub58905-KK130

main58905-KK030-C5iGUN125..RHD..M201604-202008

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#

sub58905-KK130

main58905-KK030-C7iGUN125..RHD..M201604-201905

BLACK/BRONZE,TRIM4#

sub58905-KK130

main58905-KK040-C5iGUN12#..THDCB..H201506-201708

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#

sub58905-KK140

main58905-KK040-C7iGUN12#,135..LHD..SADCB..M201604-201708

BLACK/BRONZE,TRIM4#

sub58905-KK140

main58905-KK040-C9iGUN12#..LHD..H201506-201708

BLACK/MAROON,TRIM3#

sub58905-KK140

main58905-KK070-C8iGUN125..RHD..M201604-201712

BLACK/BLACK,TRIM2#

main58905-KK080-22iGUN12#,135..LHD..(SADCB,THDCB)..M..HDCR201506-202005

BLACK/MAROON,TRIM3#

main58905-KK080-C8iGUN135..6F..M;GUN12#..LHD..SADCB..M201712-201807

BLACK/BLACK,TRIM20

main58905-KK080-C9iGUN12#..M..HDCR201905-202005

BLACK/BLACK,TRIM20

main58905-KK120-C0iGUN12#..THDCB..H201708-202005

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN12#..THDCB..H201506-201708

BLACK,TRIM2#,3#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGUN135..SAXTR..X201506-201807

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2iGUN125..RHD..S201604-202009

BLACK,TRIM2#

main58951-KK030iGUN125..RHD..M202008-202009

SEAT COVER MATERIAL-NATURAL LEATHER

sub58951-KK140

main58951-KK030-C1supersedes 58951-KK020-C5iGUN125..RHD..M201604-202008

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#

sub58951-KK140

main58951-KK030-E4iGUN125..RHD..M201604-201905

BRONZE/SHELL,TRIM4#

sub58951-KK140

main58951-KK070-C1iGUN125..LHD..(S,X);GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..(S,X)201506-202009

BLACK,TRIM2#

main58951-KK080-C3iGUN12#,135..LHD..M201506-202009

BLACK/GRAY,TRIM2#

main58951-KK080-D2iGUN12#,135..LHD..(SADCB,THDCB)..M..HDCR201506-202005

MAROON/MAROON,TRIM3#

main58951-KK090-C1iGUN12#..THDCB..H201506-201708

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#

sub58951-KK150

main58951-KK090-D0iGUN12#..LHD..H201506-201708

MAROON/MAROON,TRIM3#

sub58951-KK150

main58951-KK090-E4iGUN12#,135..LHD..SADCB..M201604-201708

BRONZE/SHELL,TRIM4#

sub58951-KK150

main58951-KK130-C0iGUN12#..THDCB..H201708-202005

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-T0008×2iGUN135..SAXTR..X201506-201807

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-KK020iGUN135..SAXTR..X201506-201807

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGUN135..SAXTR..X201506-201807

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0012

main90167-T0012

9046710201

main90467-10201

9046712080

main90467-12080

90467T0034

main90467-T0034

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

26 parts on this diagram · 2 diagrams in section
