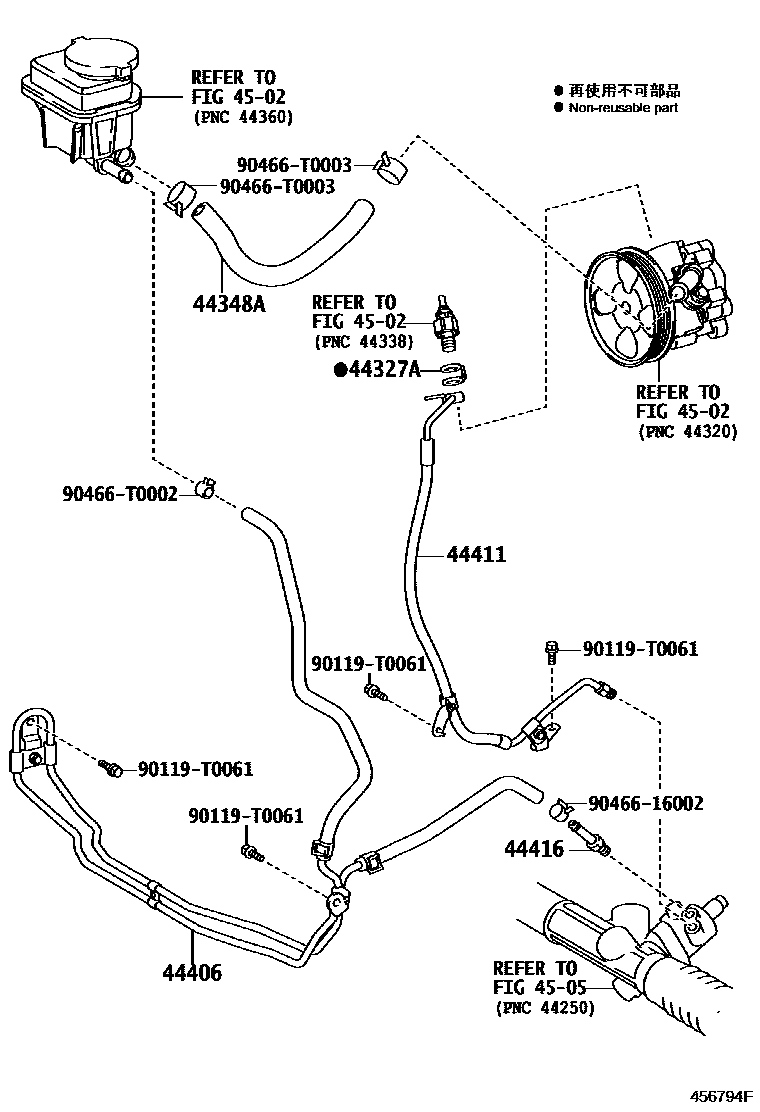

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030×2iGUN135..SAXTR..X201604-201807

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K100×2iGUN135..SAXTR..X201604-201807

main44348-0K110iGUN135..HDCR201905-202007

44406TUBE SUB-ASSY, RETURN

main44406-0K230×2iGUN135..SAXTR..X201604-201807

main44406-0K240iGUN125,135..LHD..DCRE201905-202009

44411HOSE, PRESSURE FEED

main44411-0K130×2iGUN135..SAXTR..X201604-201807

main44411-0K291iGUN125,135..LHD..DCRE201905-202009

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040×2iGUN135..SAXTR..X201604-201807

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

9046616002

main90466-16002

90466T0002

main90466-T0002

90466T0003

main90466-T0003

11 parts on this diagram · 4 diagrams in section
