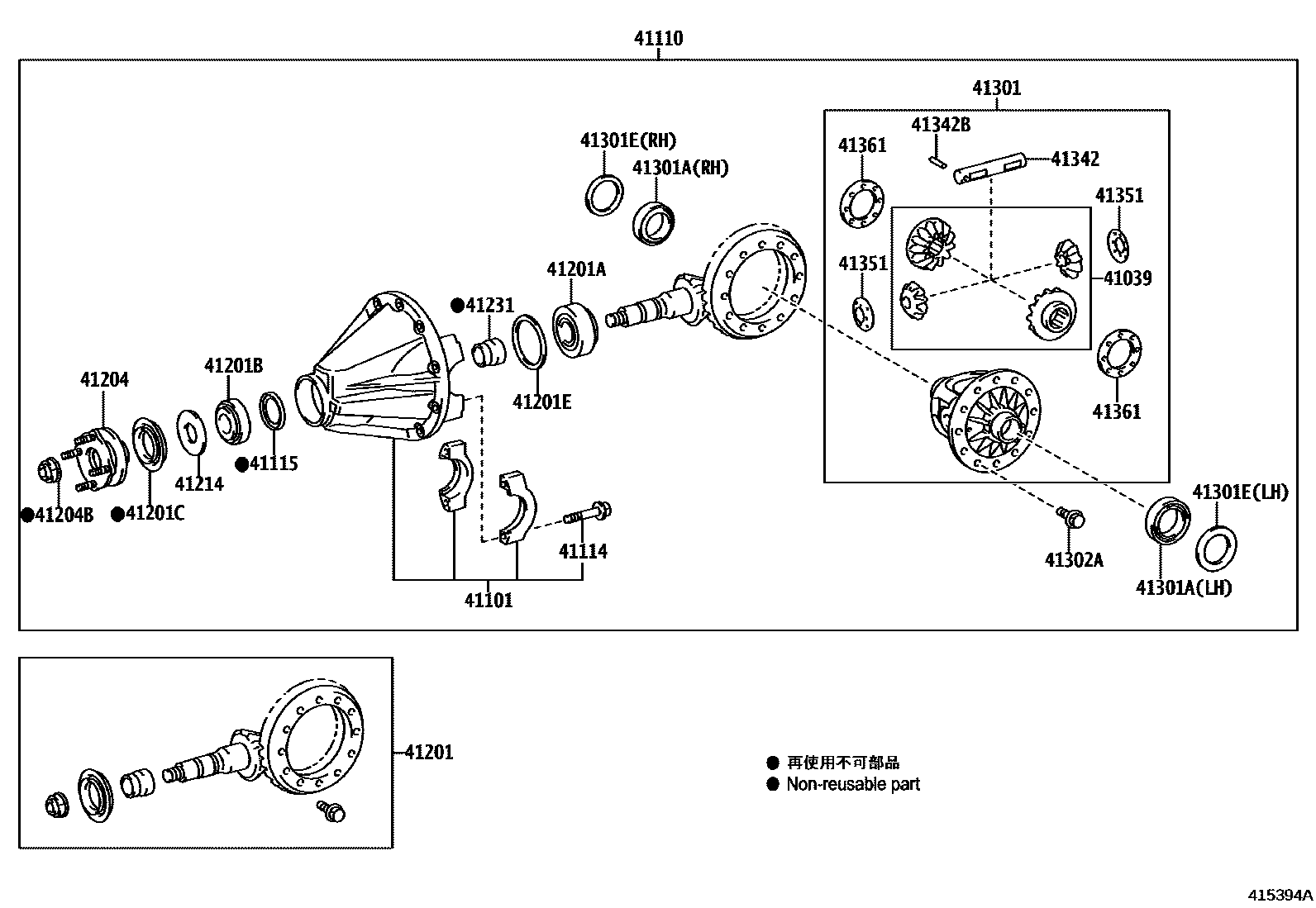

REAR AXLE HOUSING & DIFFERENTIAL

0001 1W/O(DIFFERENTIAL LOCK) 0002 1W/O(DIFFERENTIAL LOCK) 0003 1W(DIFFERENTIAL LOCK) 0004 1W(DIFFERENTIAL LOCK) 0005 1W(DIFFERENTIAL LOCK) 0006 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iGUN12#,135..H,M; GUN125..S,X;GUN135..IV3;GUN135..SASCB..CBU201506-202009

DIFFERENTIAL LOCK-WITH

main41039-71070iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

DIFFERENTIAL LOCK-WITHOUT

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K070iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

DIFFERENTIAL LOCK-WITHOUT

main41101-0K080iGUN12#,135..THDCB..(H,M); GUN125..THDCB..S201506-202005

DIFFERENTIAL LOCK-WITH

main41101-0K110iGUN125..SADCB..(H,M); GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

DIFFERENTIAL LOCK-WITHOUT

main41101-0K120supersedes 41101-0K110iGUN12#,135..(SADCB,SAXTR)..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

DIFFERENTIAL LOCK-WITH

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K570iGUN125,135..THDCB..6F..S; GUN125..THDCB..6F..M;GUN135..THDCB..6F..M..DCRE201506-202005

*FGR=43:12=3.583; *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K620iGUN125,135..THDCB..6F..M; GUN125..THDCB..6F..S201506-202005

*FGR=43:12=3.583; *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K630iGUN126..THDCB201506-202005

*FGR=43:11=3.909

main41110-0K770iGUN125..SADCB..6F..(H,M); GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

*FGR=43:12=3.583; *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K820supersedes 41110-0K770iGUN125,135..(SADCB,SAXTR)..6F..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

*FGR=43:12=3.583; *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K830iGUN126..SADCB201604-201807

*FGR=43:11=3.909

main41110-0K590supersedes 41110-0K640iGUN125,135..THDCB..6FC..(H,M)201506-202005

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT

main41110-0K640supersedes 41110-0K590iGUN125..6FC..S201708-202005

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH

main41110-0K790supersedes 41110-0K840iGUN125..SADCB..6FC201604-202009

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001×2iGUN135..SAXTR..X201604-201807

TYPE A:REFER ILLUST.

main90109-F0001×2iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

TYPE B:REFER ILLUST.

main90109-T0030×4iGUN12#,135..THDCB201506-202005

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K020iGUN12#,135..THDCB201506-202005

main41115-0K050iGUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN12#..SADCB,SASCB,SAXTR201604-201905

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN125,135..THDCB..6F201506-202005

*FGR=43:12=3.583

main41201-09B70iGUN126..THDCB201506-202005

*FGR=43:11=3.909

main41201-09B80iGUN125,135..THDCB..6FC201506-202005

*FGR=41:10=4.100

main41201-09E40iGUN125,135..(SADCB,SASCB,SAXTR)..6F201604-201710

*FGR=43:12=3.583

main41201-09E41iGUN135..SAXTR..X201710-201807

*FGR=43:12=3.583

main41201-09E50iGUN126..SADCB201604-201807

*FGR=43:11=3.909

main41201-09E60iGUN125..SADCB..6FC201604-201905

*FGR=41:10=4.100

main41201-09F80iGUN125..SADCB..6FC201906-202009

*FGR=41:10=4.100

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGUN135..SAXTR..X201604-201807

main90366-T0065iGUN12#,135..THDCB201506-202005

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGUN135..SAXTR..X201604-201807

main90366-T0062iGUN12#,135..THDCB201506-202005

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-S0001iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

main90311-T0065iGUN12#,135..THDCB201506-202005

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-78001iGUN12#,135..THDCB201506-202005

T=1.72

main90564-78002iGUN12#,135..THDCB201506-202005

T=1.74

main90564-78003iGUN12#,135..THDCB201506-202005

T=1.76

main90564-78004iGUN12#,135..THDCB201506-202005

T=1.78

main90564-78005iGUN12#,135..THDCB201506-202005

T=1.80

main90564-78006iGUN12#,135..THDCB201506-202005

T=1.82

main90564-78007iGUN12#,135..THDCB201506-202005

T=1.84

main90564-78008iGUN12#,135..THDCB201506-202005

T=1.86

main90564-78009iGUN12#,135..THDCB201506-202005

T=1.88

main90564-78010iGUN12#,135..THDCB201506-202005

T=1.90

main90564-78011iGUN12#,135..THDCB201506-202005

T=1.92

main90564-78012iGUN12#,135..THDCB201506-202005

T=1.94

main90564-78013iGUN12#,135..THDCB201506-202005

T=1.96

main90564-78014iGUN12#,135..THDCB201506-202005

T=1.98

main90564-78015iGUN12#,135..THDCB201506-202005

T=2.00

main90564-78016iGUN12#,135..THDCB201506-202005

T=2.02

main90564-78017iGUN12#,135..THDCB201506-202005

T=2.04

main90564-78018iGUN12#,135..THDCB201506-202005

T=2.06

main90564-78019iGUN12#,135..THDCB201506-202005

T=2.08

main90564-78020iGUN12#,135..THDCB201506-202005

T=2.10

main90564-78021iGUN12#,135..THDCB201506-202005

T=2.12

main90564-78022iGUN12#,135..THDCB201506-202005

T=2.14

main90564-78023iGUN12#,135..THDCB201506-202005

T=2.16

main90564-78024iGUN12#,135..THDCB201506-202005

T=2.18

main90564-S0001iGUN135..SAXTR..X201604-201807

T=1.025

main90564-S0002iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.050

main90564-S0003iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.075

main90564-S0004iGUN135..SAXTR..X201604-201807

T=1.100

main90564-S0005iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.125

main90564-S0006iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.150

main90564-S0007iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.175

main90564-S0008iGUN135..SAXTR..X201604-201807

T=1.200

main90564-S0009iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.225

main90564-S0010iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.250

main90564-S0011iGUN135..SAXTR..X201604-201807

T=1.275

main90564-S0012iGUN135..SAXTR..X201604-201807

T=1.300

main90564-S0013iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.325

main90564-S0014iGUN135..SAXTR..X201604-201807

T=1.350

main90564-S0015iGUN135..SAXTR..X201604-201807

T=1.375

main90564-S0016iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.400

main90564-S0017iGUN135..SAXTR..X201604-201807

T=1.425

main90564-S0018iGUN135..SAXTR..X201604-201807

T=1.450

main90564-S0019iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.475

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K110iGUN12#,135..THDCB201506-202005

main41204-0K130iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

41204BNUT (FOR REAR DRIVE PINION)

main90178-F0001iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

OD=43.5

main90179-22029iGUN12#,135..THDCB201506-202005

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGUN12#,135..THDCB201506-202005

main41214-0K050iGUN135..SAXTR..X201604-201807

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGUN135..SAXTR..X201604-201807

main41231-71010iGUN12#,135..THDCB201506-202005

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iGUN135..SAXTR..X201604-201807

main41301-0K120iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

DIFFERENTIAL LOCK-WITHOUT

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

LH

main90366-S0022iGUN135..SAXTR..X201604-201807

RH

main90366-T0068iGUN12#,135..THDCB201506-202005

LH

main90366-T0071iGUN12#,135..THDCB201506-202005

RH

41301ESHIM(FOR DIFFERENTIAL CASE)

main90564-59044iGUN12#,135..THDCB201506-202005

T=2.08,LH,TYPE B:REF.ILL.

main90564-59045iGUN12#,135..THDCB201506-202005

T=2.10,LH,TYPE B:REF.ILL.

main90564-59046iGUN12#,135..THDCB201506-202005

T=2.12,LH,TYPE B:REF.ILL.

main90564-59047iGUN12#,135..THDCB201506-202005

T=2.14,LH,TYPE B:REF.ILL.

main90564-59048iGUN12#,135..THDCB201506-202005

T=2.16,LH,TYPE B:REF.ILL.

main90564-59049iGUN12#,135..THDCB201506-202005

T=2.18,LH,TYPE B:REF.ILL.

main90564-59050iGUN12#,135..THDCB201506-202005

T=2.20,LH,TYPE B:REF.ILL.

main90564-59051iGUN12#,135..THDCB201506-202005

T=2.22,LH,TYPE B:REF.ILL.

main90564-59052iGUN12#,135..THDCB201506-202005

T=2.24,LH,TYPE B:REF.ILL.

main90564-59053iGUN12#,135..THDCB201506-202005

T=2.26,LH,TYPE B:REF.ILL.

main90564-59054iGUN12#,135..THDCB201506-202005

T=2.28,LH,TYPE B:REF.ILL.

main90564-59055iGUN12#,135..THDCB201506-202005

T=2.30,LH,TYPE B:REF.ILL.

main90564-59056iGUN12#,135..THDCB201506-202005

T=2.32,LH,TYPE B:REF.ILL.

main90564-59057iGUN12#,135..THDCB201506-202005

T=2.34,LH,TYPE B:REF.ILL.

main90564-59058iGUN12#,135..THDCB201506-202005

T=2.36,LH,TYPE B:REF.ILL.

main90564-59059iGUN12#,135..THDCB201506-202005

T=2.38,LH,TYPE B:REF.ILL.

main90564-59060iGUN12#,135..THDCB201506-202005

T=2.40,LH,TYPE B:REF.ILL.

main90564-59061iGUN12#,135..THDCB201506-202005

T=2.42,LH,TYPE B:REF.ILL.

main90564-59062iGUN12#,135..THDCB201506-202005

T=2.44,LH,TYPE B:REF.ILL.

main90564-59063iGUN12#,135..THDCB201506-202005

T=2.46,LH,TYPE B:REF.ILL.

main90564-59064iGUN12#,135..THDCB201506-202005

T=2.48,LH,TYPE B:REF.ILL.

main90564-59065iGUN12#,135..THDCB201506-202005

T=2.50,LH,TYPE B:REF.ILL.

main90564-59066iGUN12#,135..THDCB201506-202005

T=2.52,LH,TYPE B:REF.ILL.

main90564-59067iGUN12#,135..THDCB201506-202005

T=2.54,LH,TYPE B:REF.ILL.

main90564-59068iGUN12#,135..THDCB201506-202005

T=2.56,LH,TYPE B:REF.ILL.

main90564-59069iGUN12#,135..THDCB201506-202005

T=2.58,LH,TYPE B:REF.ILL.

main90564-59070iGUN12#,135..THDCB201506-202005

T=2.60,LH,TYPE B:REF.ILL.

main90564-59071iGUN12#,135..THDCB201506-202005

T=2.62,LH,TYPE B:REF.ILL.

main90564-59072iGUN12#,135..THDCB201506-202005

T=2.64,LH,TYPE B:REF.ILL.

main90564-59073iGUN12#,135..THDCB201506-202005

T=2.66,LH,TYPE B:REF.ILL.

main90564-59074iGUN12#,135..THDCB201506-202005

T=2.68,LH,TYPE B:REF.ILL.

main90564-59075iGUN12#,135..THDCB201506-202005

T=2.06,RH

main90564-59076iGUN12#,135..THDCB201506-202005

T=2.08,RH

main90564-59077iGUN12#,135..THDCB201506-202005

T=2.10,RH

main90564-59078iGUN12#,135..THDCB201506-202005

T=2.12,RH

main90564-59079iGUN12#,135..THDCB201506-202005

T=2.14,RH

main90564-59080iGUN12#,135..THDCB201506-202005

T=2.16,RH

main90564-59081iGUN12#,135..THDCB201506-202005

T=2.18,RH

main90564-59082iGUN12#,135..THDCB201506-202005

T=2.20,RH

main90564-59083iGUN12#,135..THDCB201506-202005

T=2.22,RH

main90564-59084iGUN12#,135..THDCB201506-202005

T=2.24,RH

main90564-59085iGUN12#,135..THDCB201506-202005

T=2.26,RH

main90564-59086iGUN12#,135..THDCB201506-202005

T=2.28,RH

main90564-59087iGUN12#,135..THDCB201506-202005

T=2.30,RH

main90564-59088iGUN12#,135..THDCB201506-202005

T=2.32,RH

main90564-59089iGUN12#,135..THDCB201506-202005

T=2.34,RH

main90564-59090iGUN12#,135..THDCB201506-202005

T=2.36,RH

main90564-59091iGUN12#,135..THDCB201506-202005

T=2.38,RH

main90564-59092iGUN12#,135..THDCB201506-202005

T=2.40,RH

main90564-59093iGUN12#,135..THDCB201506-202005

T=2.42,RH

main90564-59094iGUN12#,135..THDCB201506-202005

T=2.44,RH

main90564-59095iGUN12#,135..THDCB201506-202005

T=2.46,RH

main90564-59096iGUN12#,135..THDCB201506-202005

T=2.48,RH

main90564-59097iGUN12#,135..THDCB201506-202005

T=2.50,RH

main90564-59098iGUN12#,135..THDCB201506-202005

T=2.52,RH

main90564-59099iGUN12#,135..THDCB201506-202005

T=2.54,RH

main90564-59100iGUN12#,135..THDCB201506-202005

T=2.56,RH

main90564-59101iGUN12#,135..THDCB201506-202005

T=2.58,RH

main90564-59102iGUN12#,135..THDCB201506-202005

T=2.60,RH

main90564-59103iGUN12#,135..THDCB201506-202005

T=2.62,RH

main90564-59104iGUN12#,135..THDCB201506-202005

T=2.64,RH

main90564-59105iGUN12#,135..THDCB201506-202005

T=2.66,RH

main90564-59106iGUN12#,135..THDCB201506-202005

T=2.68,RH

main90564-S0025iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.832,LH

main90564-S0026iGUN135..SAXTR..X201604-201807

T=2.804,LH

main90564-S0027iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.777,LH

main90564-S0028iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.749,LH

main90564-S0029iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.721,LH

main90564-S0030iGUN135..SAXTR..X201604-201807

T=2.693,LH

main90564-S0031iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.665,LH

main90564-S0032iGUN135..SAXTR..X201604-201807

T=2.637,LH

main90564-S0033iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.609,LH

main90564-S0034iGUN135..SAXTR..X201604-201807

T=2.581,LH

main90564-S0035iGUN135..SAXTR..X201604-201807

T=2.553,LH

main90564-S0036iGUN135..SAXTR..X201604-201807

T=2.525,LH

main90564-S0037iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.497,LH

main90564-S0038iGUN135..SAXTR..X201604-201807

T=2.469,LH

main90564-S0039iGUN135..SAXTR..X201604-201807

T=2.441,LH

main90564-S0040iGUN135..SAXTR..X201604-201807

T=2.413,LH

main90564-S0041iGUN135..SAXTR..X201604-201807

T=2.385,LH

main90564-S0042iGUN135..SAXTR..X201604-201807

T=2.357,LH

main90564-S0043iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.329,LH

main90564-S0044iGUN135..SAXTR..X201604-201807

T=2.302,LH

main90564-S0045iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.274,LH

main90564-S0046iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.246,LH

main90564-S0047iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.218,LH

main90564-S0048iGUN135..SAXTR..X201604-201807

T=2.190,LH

main90564-S0049iGUN135..SAXTR..X201604-201807

T=2.162,LH

main90564-S0050iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.134,LH

main90564-S0051iGUN135..SAXTR..X201604-201807

T=2.860,LH

main90564-S0052iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.888,LH

main90564-S0053iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.916,LH

main90564-S0054iGUN135..SAXTR..X201604-201807

T=2.944,LH

main90564-S0055iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.76,RH

main90564-S0056iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.79,RH

main90564-S0057iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.81,RH

main90564-S0058iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.84,RH

main90564-S0059iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.86,RH

main90564-S0060iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.89,RH

main90564-S0061iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.91,RH

main90564-S0062iGUN135..SAXTR..X201604-201807

T=0.94,RH

main90564-S0063iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.97,RH

main90564-S0064iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=0.99,RH

main90564-S0065iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.02,RH

main90564-S0066iGUN135..SAXTR..X201604-201807

T=1.04,RH

main90564-S0067iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.07,RH

main90564-S0068iGUN135..SAXTR..X201604-201807

T=1.09,RH

main90564-S0069iGUN135..SAXTR..X201604-201807

T=1.12,RH

main90564-S0070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.14,RH

main90564-S0071iGUN135..SAXTR..X201604-201807

T=1.17,RH

main90564-S0072iGUN135..SAXTR..X201604-201807

T=1.19,RH

main90564-S0073iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.22,RH

main90564-S0074iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.24,RH

main90564-S0075iGUN135..SAXTR..X201604-201807

T=1.27,RH

main90564-S0076iGUN135..SAXTR..X201604-201807

T=1.30,RH

main90564-S0077iGUN135..SAXTR..X201604-201807

T=1.32,RH

main90564-S0078iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.35,RH

main90564-S0079iGUN135..SAXTR..X201604-201807

T=1.37,RH

main90564-S0080iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.40,RH

main90564-S0081iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.42,RH

main90564-S0082iGUN135..SAXTR..X201604-201807

T=1.45,RH

main90564-S0083iGUN135..SAXTR..X201604-201807

T=1.47,RH

main90564-S0084iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.50,RH

main90564-S0085iGUN135..SAXTR..X201604-201807

T=1.52,RH

main90564-S0086iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.55,RH

main90564-S0087iGUN135..SAXTR..X201604-201807

T=1.57,RH

main90564-S0088iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.60,RH

main90564-S0089iGUN135..SAXTR..X201604-201807

T=1.63,RH

main90564-S0090iGUN135..SAXTR..X201604-201807

T=1.65,RH

main90564-S0091iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.68,RH

main90564-S0092iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.70,RH

main90564-S0093iGUN135..SAXTR..X201604-201807

T=1.73,RH

main90564-S0094iGUN135..SAXTR..X201604-201807

T=1.75,RH

main90564-S0095iGUN135..SAXTR..X201604-201807

T=1.78,RH

main90564-S0096iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.80,RH

main90564-S0097iGUN135..SAXTR..X201604-201807

T=1.83,RH

main90564-S0098iGUN135..SAXTR..X201604-201807

T=1.85,RH

main90564-S0099iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.88,RH

main90564-S0100iGUN135..SAXTR..X201604-201807

T=1.91,RH

main90564-S0101iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.93,RH

main90564-S0102iGUN135..SAXTR..X201604-201807

T=1.96,RH

main90564-S0103iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=1.98,RH

main90564-S0104iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.01,RH

main90564-S0105iGUN135..SAXTR..X201604-201807

T=2.03,RH

main90564-S0106iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.06,RH

main90564-S0107iGUN135..SAXTR..X201604-201807

T=2.08,RH

main90564-S0108iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.11,RH

main90564-S0109iGUN135..SAXTR..X201604-201807

T=2.13,RH

main90564-S0110iGUN135..SAXTR..X201604-201807

T=2.16,RH

main90564-S0111iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.18,RH

main90564-S0112iGUN135..SAXTR..X201604-201807

T=2.21,RH

main90564-S0113iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.24,RH

main90564-S0114iGUN135..SAXTR..X201604-201807

T=2.26,RH

main90564-S0115iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.29,RH

main90564-S0116iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.31,RH

main90564-S0117iGUN135..SAXTR..X201604-201807

T=2.34,RH

main90564-S0118iGUN135..SAXTR..X201604-201807

T=2.36,RH

main90564-S0119iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.39,RH

main90564-S0120iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.41,RH

main90564-S0121iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.44,RH

main90564-S0122iGUN135..SAXTR..X201604-201807

T=2.46,RH

main90564-S0123iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.49,RH

main90564-S0124iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.51,RH

main90564-S0125iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

T=2.54,RH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iGUN12#,135..THDCB..(H,M); GUN125..THDCB..S201506-202005

DIFFERENTIAL LOCK-WITH

main41302-0K030iGUN12#,135..(SADCB,SAXTR)..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

DIFFERENTIAL LOCK-WITH

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12365×12iGUN12#,135..THDCB201506-201903

main90105-F0003×12iGUN135..SAXTR..X201604-201807

main90105-T0268×12iGUN12#,135..THDCB201903-202005

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K070iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

DIFFERENTIAL LOCK-WITHOUT

main41342-0K080iGUN12#,135..H,M; GUN125..S,X;GUN135..IV3;GUN135..SASCB..CBU201506-202009

DIFFERENTIAL LOCK-WITH

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

DIFFERENTIAL LOCK-WITHOUT

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K040×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

DIFFERENTIAL LOCK-WITHOUT

main41351-0K050×4iGUN12#,135..H,M; GUN125..S,X;GUN135..IV3;GUN135..SASCB..CBU201506-202009

DIFFERENTIAL LOCK-WITH

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K110×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.45; T=1.45,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.50; T=1.50,DIFFERENTIAL LOCK-WITHOUT

main41361-0K310×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.55; T=1.55,DIFFERENTIAL LOCK-WITHOUT

main41361-0K320×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.60; T=1.60,DIFFERENTIAL LOCK-WITHOUT

main41361-0K330×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.65; T=1.65,DIFFERENTIAL LOCK-WITHOUT

main41361-0K340×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.70; T=1.70,DIFFERENTIAL LOCK-WITHOUT

main41361-0K350×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.75; T=1.75,DIFFERENTIAL LOCK-WITHOUT

main41361-0K360×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.80; T=1.80,DIFFERENTIAL LOCK-WITHOUT

main41361-0K370×2iGUN125,135..THDCB..S; GUN135..6FC;GUN125..THDCB..(H,M);GUN135..THDCB..6F..M..DCRE201506-202005

T=1.85; T=1.85,DIFFERENTIAL LOCK-WITHOUT

main41361-0K380iGUN12#,135..THDCB..(H,M); GUN125..THDCB..S201506-202005

T=1.1; T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K390iGUN12#,135..THDCB..(H,M); GUN125..THDCB..S201506-202005

T=1.2; T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K400iGUN12#,135..THDCB..(H,M); GUN125..THDCB..S201506-202005

T=1.3; T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K410iGUN12#,135..THDCB..(H,M); GUN125..THDCB..S201506-202005

T=1.4; T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K460iGUN12#,135..(SADCB,SAXTR)..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

T=1.1; T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K470iGUN12#,135..(SADCB,SAXTR)..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

T=1.2; T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K480iGUN12#,135..(SADCB,SAXTR)..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

T=1.3; T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K490iGUN12#,135..(SADCB,SAXTR)..(H,M); GUN135..IV3;GUN135..SASCB..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

T=1.4; T=1.4,DIFFERENTIAL LOCK-WITH

23 parts on this diagram · 6 diagrams in section
