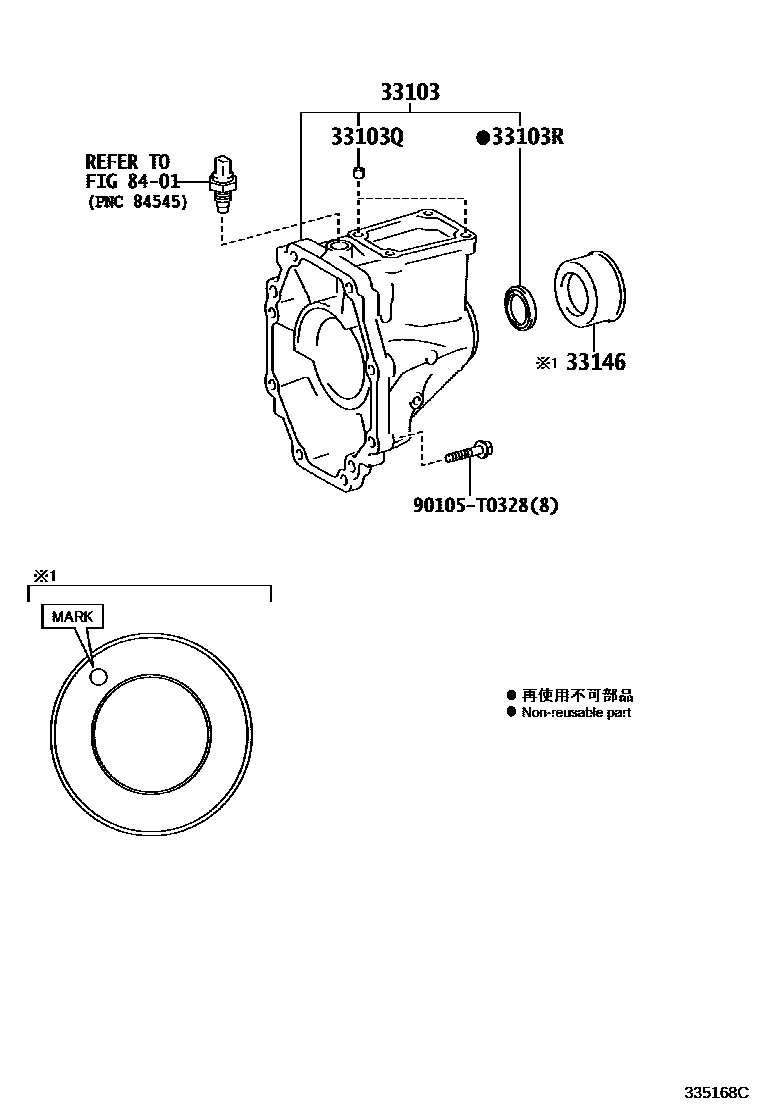

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K090supersedes 33103-0K110i201506-201905

TYPE A:REFER 33-01

main33103-0K100i201506-201905

TYPE B:REFER 33-01

main33103-0K110i201906-202009

TOYOTA STOP & START SYSTEM-WITH&CRUISE CONTROL-WITH,TYPE A:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&CRUISE CONTROL-WITHOUT,TYPE A:REFER 33-01

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-11021×2i201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-T0069i201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-0K020i201506-201905

(L),NO MARK

main33146-0K030i201601-201807

(L),MARK 3

main33146-35020i201506-202009

(J)

8401SWITCH & RELAY & COMPUTER

90105T0328

6 parts on this diagram · 1 diagram in section
