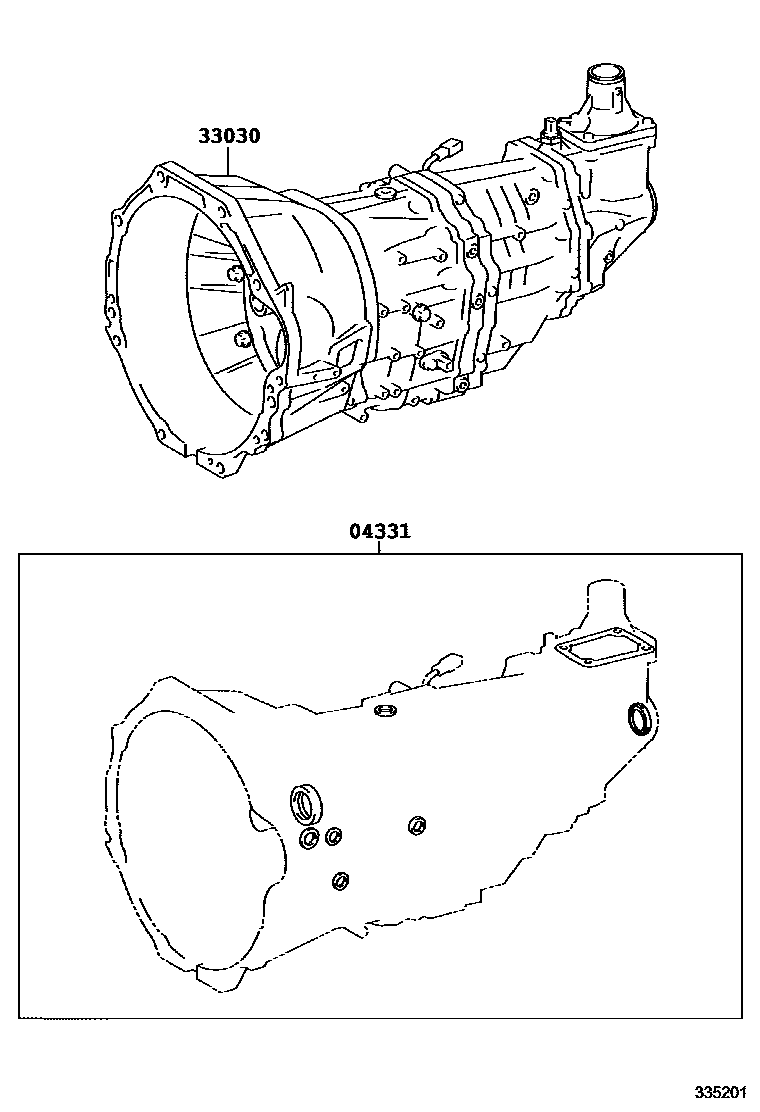

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1RC60 0002 1RC60F 0003 1RC60,RC60F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K440iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

*573

main04331-0K450iGUN125..6F..(H,M)..HDCR; GUN125..6F..HDCR201506-202005

*573; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),*572

main04331-0K460iGUN135..SAXTR..X201506-201807

*575

main04331-0K470iGUN125..6F..(H,M)..HDCR; GUN125..6F..HDCR201506-202005

*575; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),*574

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0KD30supersedes 33030-0KD40iGUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..6F201506-201905

RC60,*573

main33030-0KD70iGUN125..6F..HDCR201506-202005

RC60F,*573

main33030-0KD80iGUN125..6F..DCRE201905-202009

RC60F,*572

main33030-0KE10iGUN135..SAXTR..X201506-201807

RC60,*575

main33030-0KE50iGUN125..6F..HDCR201506-202005

RC60F,*575

main33030-0KE60iGUN125..6F..DCRE201905-202009

RC60F,*574

main33030-0KD40iGUN135..SADCB..M201604-201905

RC60,TOYOTA STOP & START SYSTEM-WITH,*572

2 parts on this diagram · 3 diagrams in section
