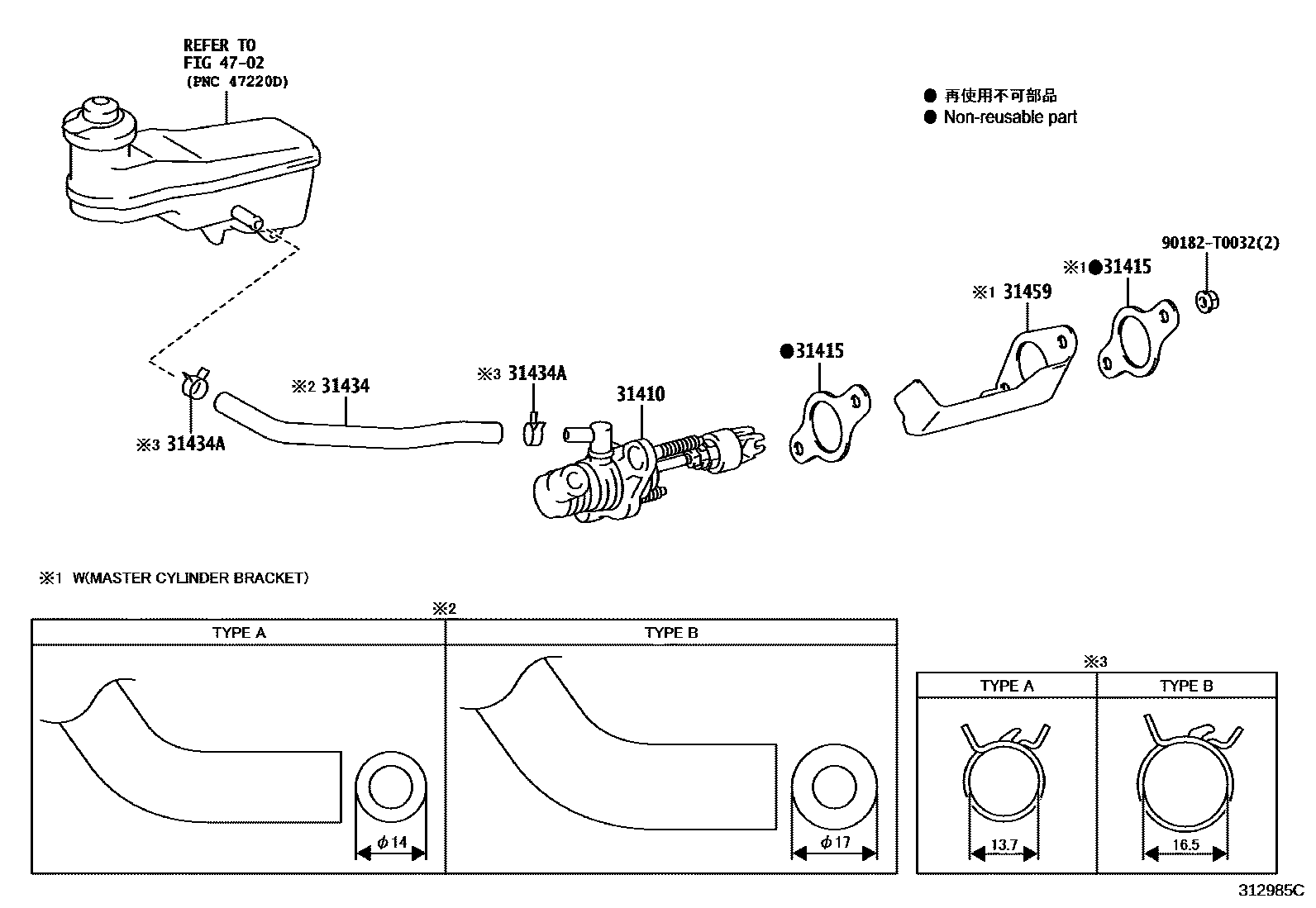

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K070iGUN135..SAXTR..X201506-201807

main31420-0K071iGUN125..6F;GUN135..6F..DCRE201905-202009

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN125..LHD..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

31434TUBE, CLUTCH RESERVOIR

main31434-0K090iGUN125..RHD..6F201604-201905

TYPE B:REFER ILLUST.

main31434-0K091iGUN125..RHD..6F201906-202009

TYPE A:REFER ILLUST.

main31434-0K110iGUN125..LHD..6F;GUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..6F201506-201905

TYPE B:REFER ILLUST.

main31434-0K111iGUN125..LHD..6F;GUN135..6F..DCRE201905-202009

TYPE A:REFER ILLUST.

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015×2iGUN125..6F;GUN135..6F..DCRE201905-202009

TYPE A:REFER ILLUST.

main90466-T0052×2iGUN135..SAXTR..X201506-201807

TYPE B:REFER ILLUST.

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-71010iGUN125..RHD..6F201604-202009

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182T0032

main90182-T0032

7 parts on this diagram · 1 diagram in section
