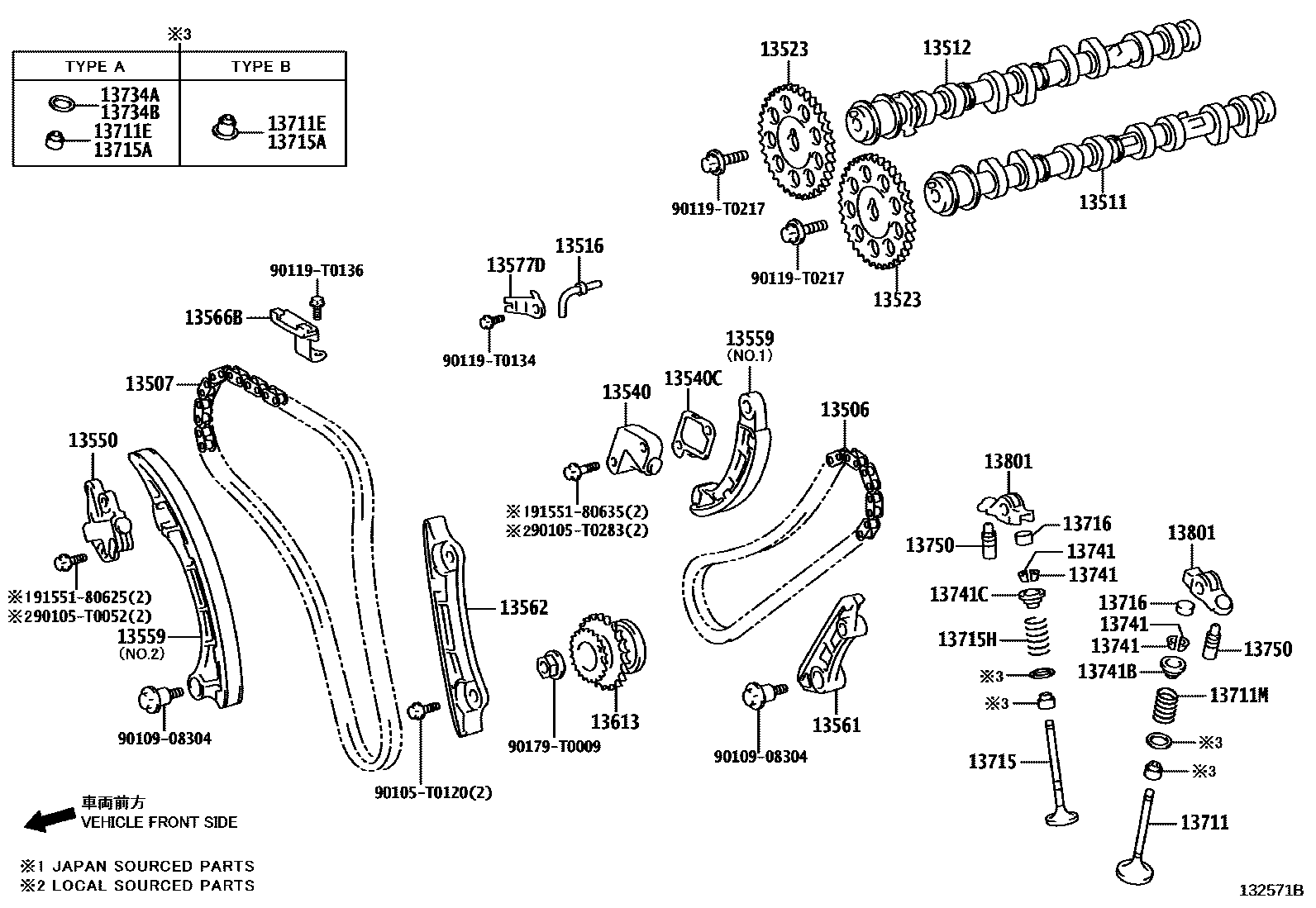

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
main13506-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-201808
(L)
main13506-0E011i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201809-202009
(L)
13507CHAIN SUB-ASSY, NO.2
(L)
13511CAMSHAFT
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13512CAMSHAFT, NO.2
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13516JET, OIL
(L); RUSSIA & UKRAINE SPEC,(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0E010×2i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
(L)
13540CGASKET(FOR CHAIN TENSIONER)
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13550TENSIONER ASSY, CHAIN, NO.2
main13550-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
(L)
13559SLIPPER, CHAIN TENSIONER
(L),NO.2
(L),NO.1
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(L)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
13566BGUIDE, TIMING CHAIN
(L)
13577DPLATE, LOCK
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13613GEAR, INJECTION PUMP DRIVE
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13711VALVE, INTAKE
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13711ESEAL, INTAKE VALVE STEM OIL
TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
RUSSIA & UKRAINE SPEC,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
RUSSIA & UKRAINE SPEC
13715VALVE, EXHAUST
main13715-0E010×8i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
THA SOURCED PARTS
IND SOURCED PARTS; RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
13715ASEAL, EXHAUST VALVE STEM OIL
TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
RUSSIA & UKRAINE SPEC,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
RUSSIA & UKRAINE SPEC
13716CAP, VALVE STEM
(L)
13734ASEAT, INTAKE VALVE SPRING
TYPE A:REFER ILLUST.
13734BSEAT, EXHAUST VALVE SPRING
TYPE A:REFER ILLUST.
13741RETAINER, VALVE SPRING
13741BRETAINER, INTAKE VALVE SPRING
(L)
main13741-33020×8i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
(J)
13741CRETAINER, EXHAUST VALVE SPRING
RUSSIA & UKRAINE SPEC
(J)
13750ADJUSTER ASSY, VALVE LASH
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L)
(L)
90105T0052
main90105-T0052
90105T0120
main90105-T0120
90105T0283
main90105-T0283
9010908304
main90109-08304
90119T0134
main90119-T0134
90119T0136
main90119-T0136
90119T0217
main90119-T0217
90179T0009
main90179-T0009
9155180625
main91551-80625
9155180635
main91551-80635
