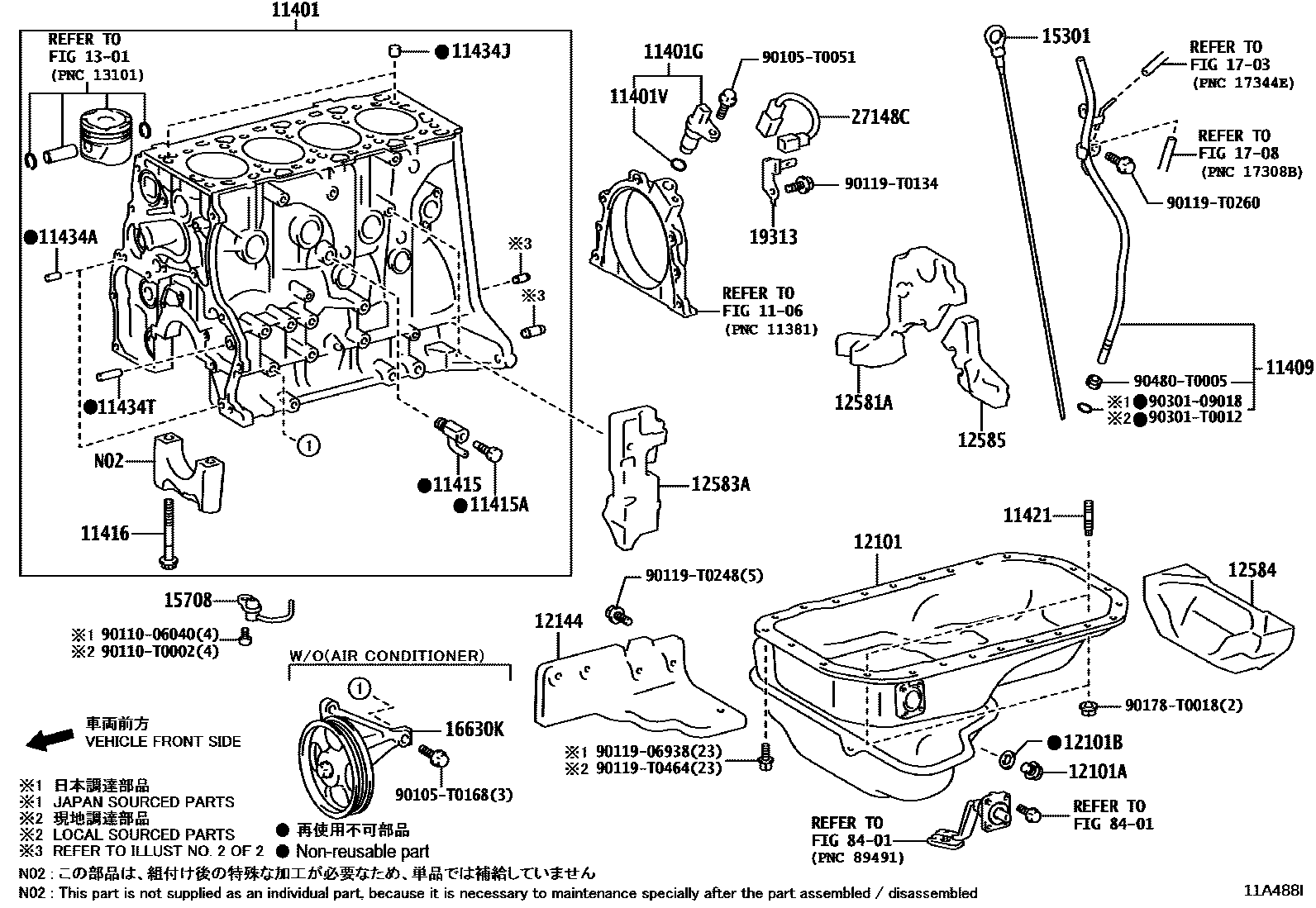

CYLINDER BLOCK

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

11401BLOCK SUB-ASSY, CYLINDER

main11401-09790i1GDFTV..GUN126201506-201906

main11401-09791i1GDFTV..GUN126201907-202003

main11401-09792i1GDFTV..GUN126202003-202005

main11401-09800i2GDFTV..GUN135..SAXTR..X201506-201807

main11401-09801i2GDFTV..GUN125..HDCR201907-202003

main11401-09802i2GDFTV..GUN125..HDCR202003-202005

main11401-09840i2GDFTV..GUN125,135..DCRE201905-202003

main11401-09841i2GDFTV..GUN125,135..DCRE202003-202009

11401GSENSOR, CRANK POSITION

main90919-05073i2GDFTV..GUN135..SAXTR..X201506-201807

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i2GDFTV..GUN125,135..DCRE;2GDFTV..GUN125..THDCB..6F..S..HDCR;1GDFTV,2GDFTV..GUN12#..THDCB..(H,M)..HDCR201506-202009

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0E010i1GDFTV,2GDFTV..GUN12#,135201506-201709

main11409-0E011i2GDFTV..GUN135..SAXTR..X201710-201807

main11409-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F201807-201810

MADE IN INDIA; RUSSIA & UKRAINE SPEC,MADE IN INDIA

main11409-0E021i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201811-202005

MADE IN INDIA; RUSSIA & UKRAINE SPEC,MADE IN INDIA

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09128i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201803-202009

(J)

main90910-T9001i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201803-202009

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2009×10i2GDFTV..GUN135..SAXTR..X201506-201807

*582

11421BOLT, STUD(FOR OIL PAN)

main90126-06028×2i2GDFTV..GUN135..SAXTR..X201506-201807

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-T0007×2i2GDFTV..GUN135..SAXTR..X201506-201807

L=18,OD=8,*582

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-T0002×2i2GDFTV..GUN135..SAXTR..X201506-201807

*582

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

(J)

main90250-T0019i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

12101PAN SUB-ASSY, OIL

main12101-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

*582

main12101-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

MADE IN INDIA; RUSSIA & UKRAINE SPEC,MADE IN INDIA

12101APLUG(FOR OIL PAN DRAIN)

main90341-T0004i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2GDFTV..GUN135..SAXTR..X201506-201807

*582

12144SILENCER, OIL PAN COVER

main12144-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

*582

main12144-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

MADE IN INDIA; RUSSIA & UKRAINE SPEC,MADE IN INDIA

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

*582

main12581-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

*582

main12583-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-0E010i1GDFTV,2GDFTV..GUN12#,135201506-201711

main12584-0E011i2GDFTV..GUN135..SAXTR..X201712-201807

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

*582

main12585-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

*582

main15301-0E011i1GDFTV,2GDFTV..GUN12#..HDCR201905-202005

*582

main15301-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

main15301-0E050i2GDFTV..GUN125,135..DCRE201905-202009

*582

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0E010×4i2GDFTV..GUN135..SAXTR..X201506-201807

(L)

16630KPULLEY ASSY, IDLER

main16630-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

*582

main19313-0E020i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

27148CWIRE, CONNECTING

main27148-0E010i2GDFTV..GUN135..SAXTR..X201506-201807

MADE IN THAILAND

main27148-0E040i1GDFTV..GUN126; 2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

MADE IN INDIA; RUSSIA & UKRAINE SPEC,MADE IN INDIA

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0051

main90105-T0051

90105T0168

main90105-T0168

9011006040

main90110-06040

90110T0002

main90110-T0002

9011906938

main90119-06938

90119T0134

main90119-T0134

90119T0248

main90119-T0248

90119T0260

main90119-T0260

90119T0464

main90119-T0464

90178T0018

main90178-T0018

9030109018

main90301-09018

90301T0012

main90301-T0012

90480T0005

main90480-T0005
