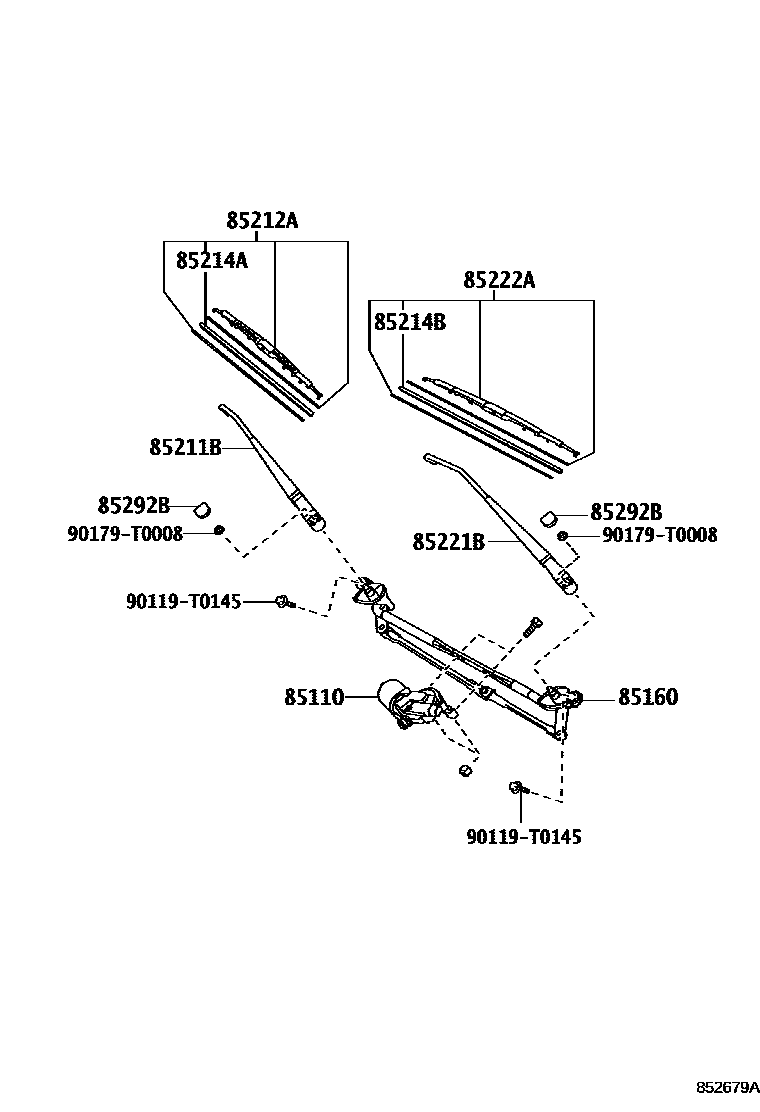

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K051iKUN2#..RHD201107-201512

main85110-0K061iKUN2#,35..LHD201107-201512

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K051iKUN2#..RHD201107-201512

main85150-0K061iKUN2#,35..LHD201107-201512

85211BARM, FRONT WIPER, RH

main85211-0K020iKUN2#,35..LHD201107-201512

main85211-0K030iKUN2#..RHD201107-201512

85212ABLADE, FR WIPER, RH

main85212-0K020iKUN2#,35..LHD201107-201512

main85212-0K031iKUN2#..RHD201107-201512

85214ARUBBER, WIPER, RH

main85214-0K040iKUN2#,35..LHD201107-201512

main85214-0K051iKUN2#..RHD201107-201512

85214BRUBBER, WIPER, LH

main85214-0K040iKUN2#..RHD201107-201512

main85214-0K051iKUN2#,35..LHD201107-201512

85221BARM, FRONT WIPER, LH

main85221-0K010iKUN2#..RHD201107-201512

main85221-0K030iKUN2#,35..LHD201107-201512

85222ABLADE, FR WIPER, LH

main85222-0K010iKUN2#..RHD201107-201512

main85222-0K031iKUN2#,35..LHD201107-201512

85292BCAP, FRONT WIPER ARM HEAD

main85292-0K030×2iKUN2#,35201107-201512

90119T0145

main90119-T0145

90179T0008

main90179-T0008

11 parts on this diagram · 2 diagrams in section
