OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

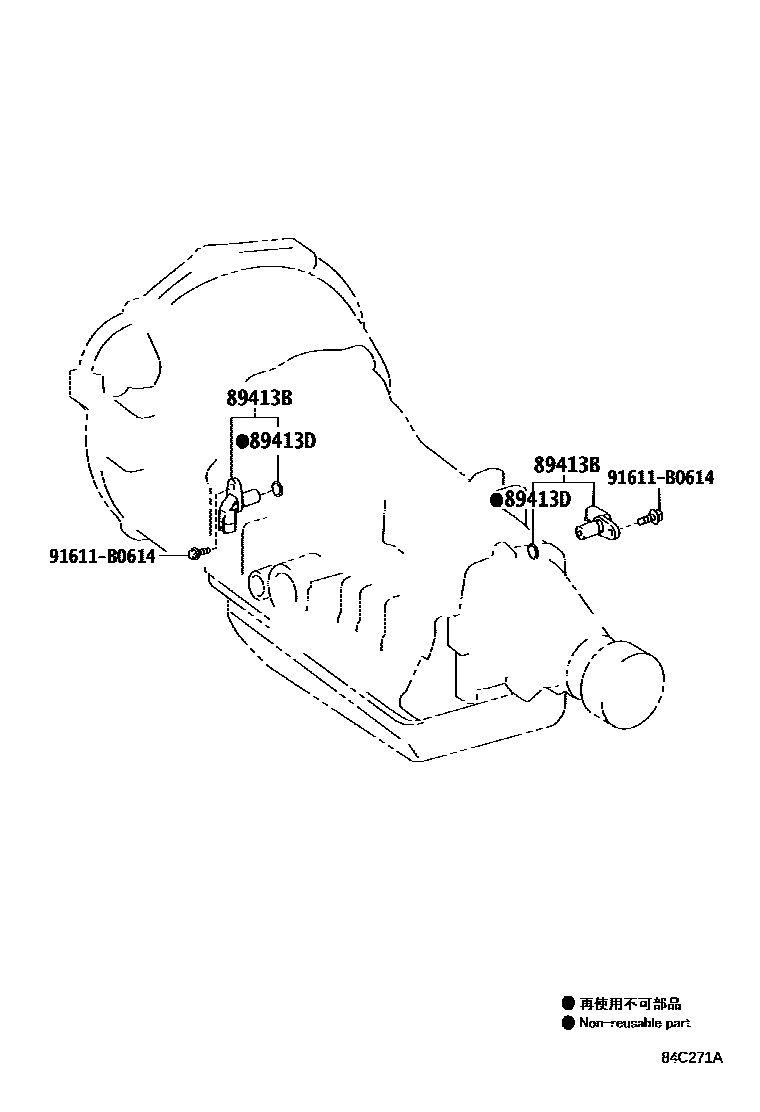

Parts diagram

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-0C010×2i201307-201512

(L)

main89413-32010×2i201107-201307

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2i201107-201512

91611B0614

main91611-B0614

3 parts on this diagram · 1 diagram in section
