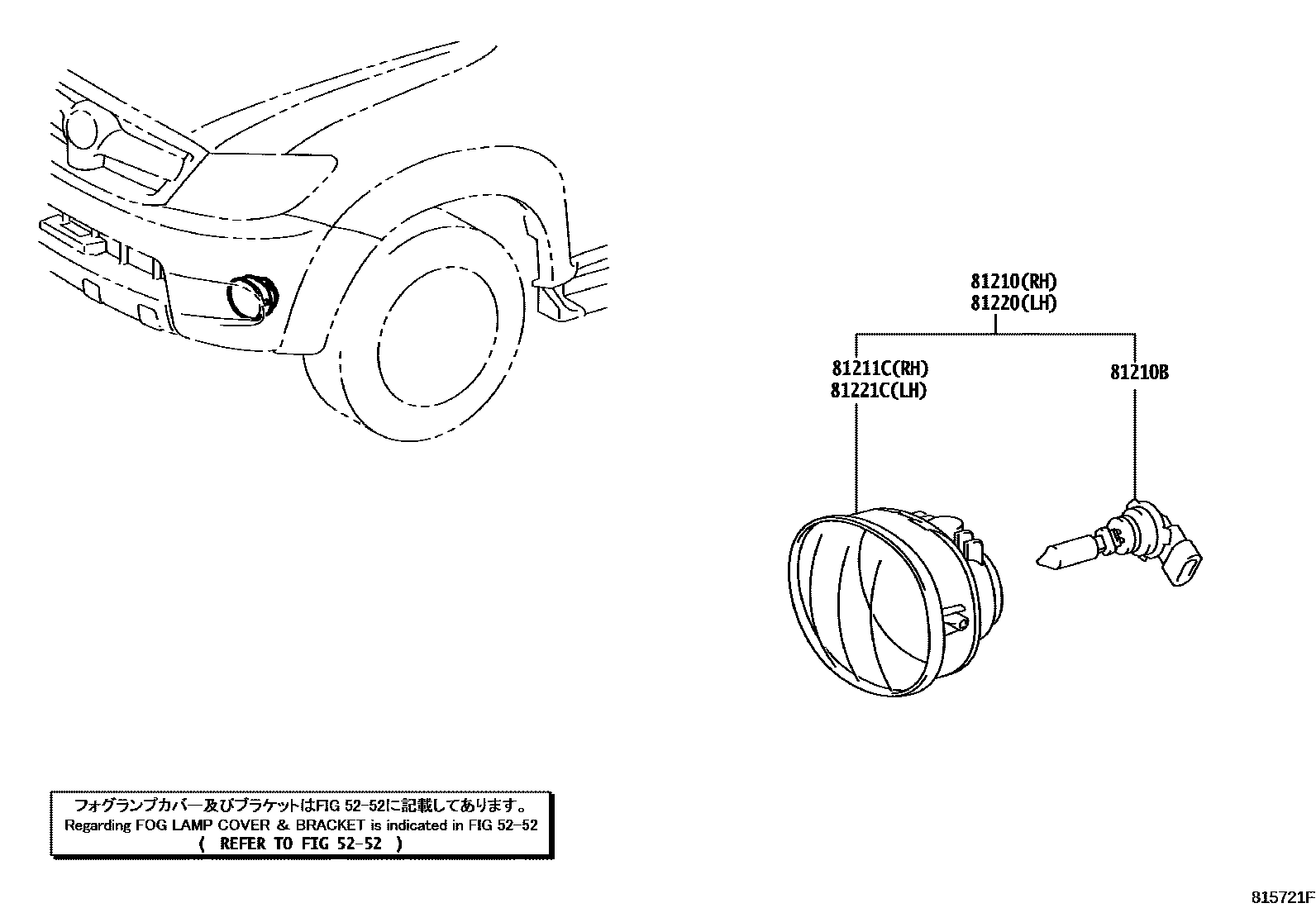

FOG LAMP

5252FRONT BUMPER & BUMPER STAY

81210LAMP ASSY, FOG

main81210-0K080i201107-201208

FRONT FOG LAMP-WITH(51W OR 55W)

81210BBULB, FOG LAMP

main90981-13047×2i201107-201208

12V 51W,HALOGEN; 12V 51W,HALOGEN,FRONT FOG LAMP-WITH(51W OR 55W)

main90981-13090×2i201208-201512

12V 19W; 12V 19W,FRONT FOG LAMP-WITH(19W)

81211CLAMP UNIT, FOG LAMP, RH

main81211-0D070i201107-201208

FRONT FOG LAMP-WITH(51W OR 55W)

81220LAMP ASSY, FOG, LH

main81220-0K080i201107-201208

FRONT FOG LAMP-WITH(51W OR 55W)

81221CLAMP UNIT, FOG LAMP, LH

main81221-0D070i201107-201208

FRONT FOG LAMP-WITH(51W OR 55W)

6 parts on this diagram · 2 diagrams in section
